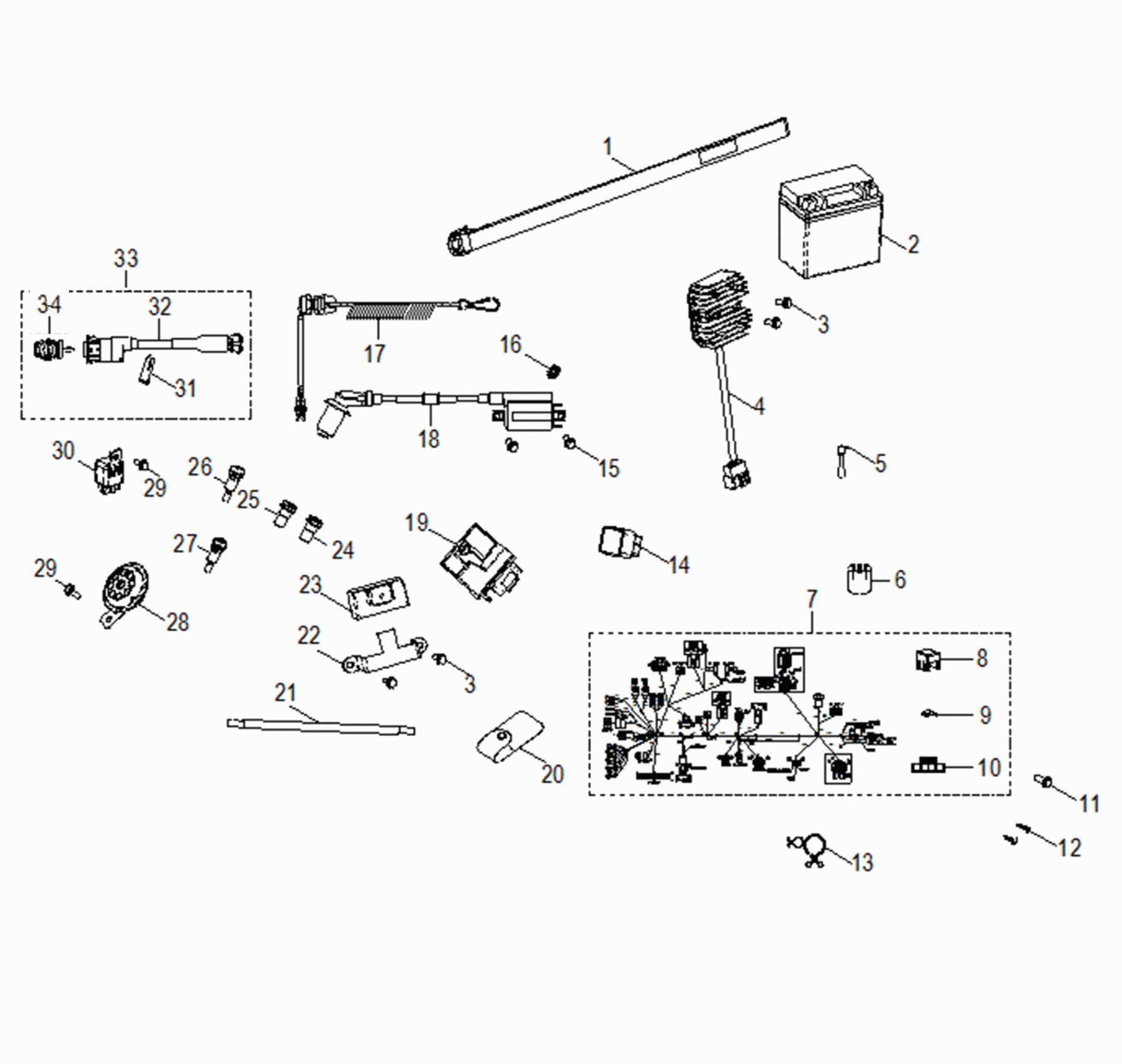

Polaris OUTLAW 110 (R04) - A19YAK11B7/B6 ELECTRICAL, SWITCHES, HARNESS and INDICATORS - A19YAK11B7/B6 (A00010) Diagram

#

Description
Price

1

WRISTBAND, SAFETY

0453501

$22.23

2

BATTERY-YUASA YTX5L,YOUTH

4011181

$63.99

3

Bolt

0453518

$3.99

4

RECTIFIER, REGULATOR

0455032

$83.99

5

GAUGE, TIRE PRESSURE

-------

Unavailable

6

DUST COVER

0455027

$27.99

7

HARNESS,MAIN OUTLAW 110,TXL [INCL. 8-10]

0455418

$335.99

8

CAP, RUBBER

0455189

$5.59

9

JUMPER

0451019

$6.39

10

TERMINAL BOARD, SPEED CONTROL

0455188

$31.99

11

BOLT

0454011

$3.99

12

SCREW

0455026

$4.79

13

FASTNER, CABLE

0455177

$4.79

14

STARTER, RELAY

0453488

$59.99

15

BOLT

0452782

$7.19

16

WASHER, STAR

0450890

$3.19

17

SWITCH,SAFETY,110

0455201

$51.99

17

SWITCH-TETHER

4081577

$31.99

18

ASM., IGNITION COIL

0455029

$67.99

19

ECU

0455166

$279.99

20

PUCH, TOOL

0454703

Unavailable

21

HOSE

0455153

$10.39

22

BRACKET, ECU

0455154

$14.39

23

PAD, RUBBER

0455155

$19.99

24

INDICATOR, REVERSE

0454655

$27.99

25

INDICATOR, NEUTRAL

0454654

$23.99

26

INDICATOR, LOW FUEL

0455202

$11.19

27

TROUBLE INDICATOR

0455181

$13.59

28

HORN

0451695

$18.23

29

BOLT

0454785

$3.99

29

BOLT

0454785

$3.99

30

RELAY, EFI

0455030

$41.79

31

CLIP, MAIN SWITCH

0450549

Unavailable

32

SWITCH, MAIN

-------

Unavailable

33

ASM-SWITCH,MAIN [INCL. 31,32,34]

0455544

$67.99

34

KEY BLANK, RH

0453143

$13.59

34

KEY BLANK, LH

0453372

$27.99
