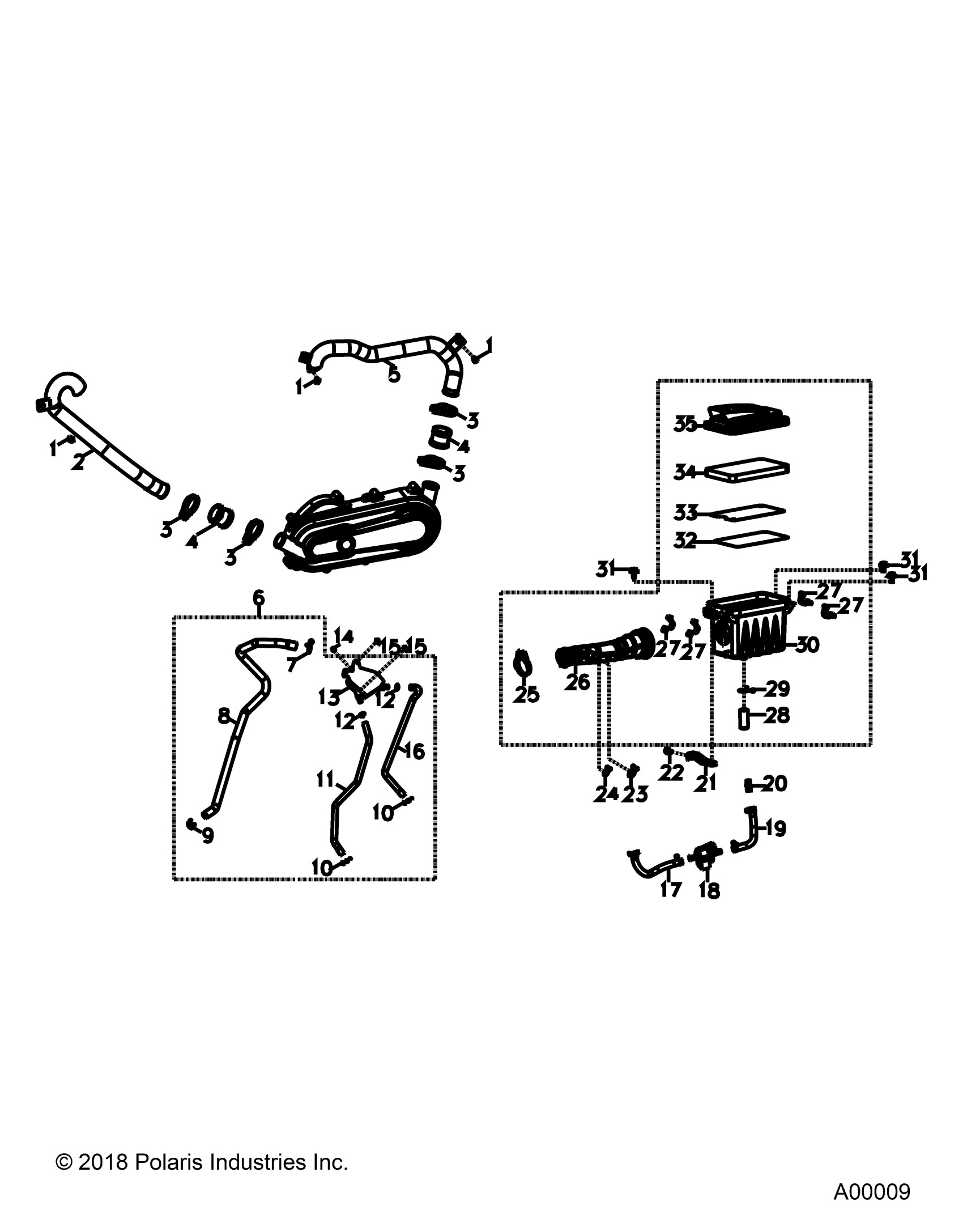

Polaris OUTLAW 110 (R02) - A24YAK11B1/B5 ENGINE, AIR INTAKE SYSTEM - A24YAK11B1/B5 (A00009) Diagram

#

Description
Price

1

Bolt, Hex, Washer Face

0450824

$2.39

1

Bolt, Hex, Washer Face

0450824

$2.39

1

Bolt, Hex, Washer Face

0450824

$2.39

2

BOLT, FLANGE

0453331

$59.99

3

Clamp

0453655

$10.39

3

Clamp

0453655

$10.39

4

Boot, Duct

0453656

$9.59

4

Boot, Duct

0453656

$9.59

5

Duct, Outlet

0453332

$59.99

5

Duct, Outlet

0453332

$59.99

5

Duct, Outlet

0453332

$59.99

6

ASM TUBES

-------

Unavailable

7

Clip, Retaining

0453187

Unavailable

8

TUBE, BREATHER, VENTILATED

0454008

$39.99

9

Clip

0452795

$3.99

10

CLIP, OIL SEPARATOR

0453516

$3.99

10

CLIP, OIL SEPARATOR

0453516

$3.99

11

Tube, Oil

0454006

$23.99

12

Asm., Fuel Line and Clip

0450865

$11.19

12

Asm., Fuel Line and Clip

0450865

$11.19

13

Separator, Oil

0453184

$63.99

14

NUT, FLANGE, HEX

0450880

$3.99

15

BOLT, HEX

0452215

$3.99

15

BOLT, HEX

0452215

$3.99

16

TUBE, OIL

0454007

$13.59

17

HOSE, IAC

0455127

$11.19

18

VALVE, IDLE AIR CONTROLLER, IAC

0455066

$59.99

19

HOSE, IAC

0455128

$11.19

20

NIPPLE-INTAKE,DUCT

0455064

$5.59

21

Bracket, Mount, Air Box

0453666

$27.99

22

Bolt

0453518

$3.99

24

CLIP

0455063

$4.79

25

Clamp

0453658

$13.59

25

Clamp

0453658

$13.59

26

BOOT

0455129

$43.99

27

Clip, Air Box

0453660

Unavailable

27

Clip, Air Box

0453660

Unavailable

27

Clip, Air Box

0453660

Unavailable

27

Clip, Air Box

0453660

Unavailable

28

Hose, Drain

0453725

$7.19

29

Clip

0453661

$4.79

30

Box, Air Cleaner

0453662

$43.99

31

BOLT, HEX

0452215

$3.99

31

BOLT, HEX

0452215

$3.99

31

BOLT, HEX

0452215

$3.99

32

Gasket, Cover, Air Box

0453484

$3.99

33

Filter, Air Cleaner

0453663

$9.59

34

Foam, Intake, Air Cleaner

0454620

$31.99

35

Cover, Air Cleaner

0453665

$35.99
