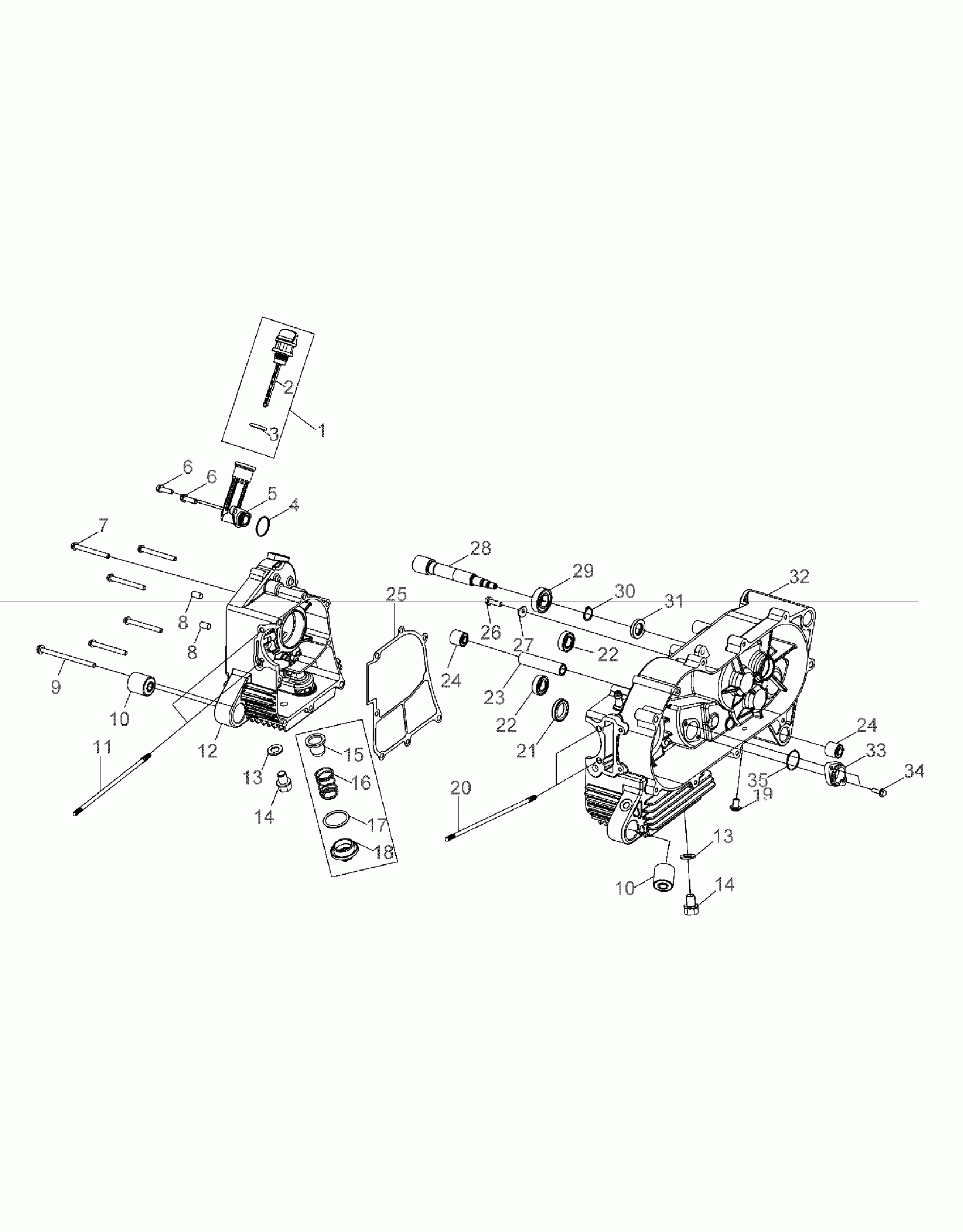

Polaris OUTLAW 110 (R02) - A23YAK11B6/B7 ENGINE, CRANKCASE - A23YAK11B6/B7 (A00045) Diagram

#

Description
Price

-

ASM-ENGINE,110

0455394

$1,940.39

1

DIPSTICK, OIL [INCL. 2]

0453542

$23.99

2

DIPSTICK

-------

Unavailable

3

O-RING

0455117

$3.19

4

O-RING

0453827

$1.99

5

NECK, OIL FILLER

0453611

$51.99

6

BOLT

0453519

$3.99

6

BOLT

0453519

$3.99

7

BOLT

0453612

$3.99

8

PIN, DOWEL

0452342

$3.99

8

PIN, DOWEL

0452342

$3.99

9

BOLT

0453614

$3.99

10

BUSHING, RUBBER

0455172

$12.79

10

BUSHING, RUBBER

0455172

$12.79

11

STUD

0453613

$9.59

12

CRANKCASE, RH, 110

0455118

$183.99

13

WASHER, FLAT

0452133

$3.99

13

WASHER, FLAT

0452133

$3.99

14

BOLT, DRAIN PLUG

0452132

$4.79

14

BOLT, DRAIN PLUG

0452132

$4.79

15

SCREEN, OIL

0452369

$12.79

16

SPRING, OIL SCREEN

0452370

$12.79

17

O-RING, DRAIN PLUG

0452371

$1.59

18

Plug, Drain, Oil

0452368

$23.99

19

Bolt, Hex, Washer Face

0450325

Unavailable

20

STUD

0453616

$9.59

21

SEAL, OIL

0453522

$27.99

22

Bearing, Needle

0450254

$23.99

22

Bearing, Needle

0450254

$23.99

23

SPACER, COLLAR

0453617

$12.79

24

BUSHING, RUBBER

0455173

$8.79

24

BUSHING, RUBBER

0455173

$8.79

25

GASKET-CRANKCASE,110

0455486

$13.59

26

Bolt, Socket, Hex

0450158

$5.59

27

WASHER, FLAT

0453460

$4.79

28

SHAFT, DRIVE

0453456

$83.99

29

BEARING

0450199

$31.99

30

Circlip, External

0450198

$4.79

31

Seal, Oil

0450200

$11.99

32

CRANKCASE, LH, 110

0455120

$399.99

33

SENSOR, GEAR POSITION

0452128

Unavailable

34

Bolt, Hex, Flange

0452138

$3.19

35

O-RING, GEAR POSITION SENSOR

0452129

$1.59
