Description

Price

1

ASM-LEVER,RH,110 [INCL. 2-8]

0455234

$139.99

2

ARM, THROTTLE

0452202

$23.99

3

MOUNT, LEVER, BRAKE, RH

0453721

$135.99

4

NUT

0450808

$2.39

4

NUT

0450808

$2.39

5

BRACKET, BRAKE CABLE

0450994

$31.99

6

LEVER, BRAKE, SIDE

0450694

$27.99

7

BOLT, BRAKE LEVER, RH

0450806

$2.39

8

SCR W/JAM NUT THROTTLE STOP

0455403

$3.19

9

CABLE, BRAKE SWITCH

0453736

$43.99

10

GRIP, HANDLEBAR

0453370

$23.99

10

GRIP, HANDLEBAR

0453370

$23.99

11

HANDLEBAR

0453737-067

$67.99

12

POD-UPPER,110,A.GRAY

0455179-453

$67.99

13

Bolt

0450701

$1.49

14

Bolt

0450667

$5.59

15

BRACKET, POD

0453565

$31.99

16

BOLT

0450148

$3.99

17

COVER, CLAMP, RH

0450461

$27.99

18

COVER, CLAMP, LH

0450460

$35.99

19

CLAMP, SADDLE

0450459

$39.99

20

NUT

0450276

$3.99

21

CABLE, THROTTLE

0455149

$67.99

22

CABLE, SENSOR, BRAKE

0453815

$43.99

23

SCREW

0451148

$3.19

23

SCREW

0451148

$3.19

24

BOLT

0451149

$3.99

25

BOLT

0453708

$3.99

26

ASM., SWITCH, LH [INCL. 23-25]

0455150

Unavailable

27

LEVER, BRAKE, SIDE, BLACK

0450693

$27.99

28

BOLT

0450807

$7.19

29

LOCK, PARK BRAKE

0454042

$14.39

30

ASM., LEVER, BRAKE, LH [INCL. 4,22,27,28]

0454043

$59.99

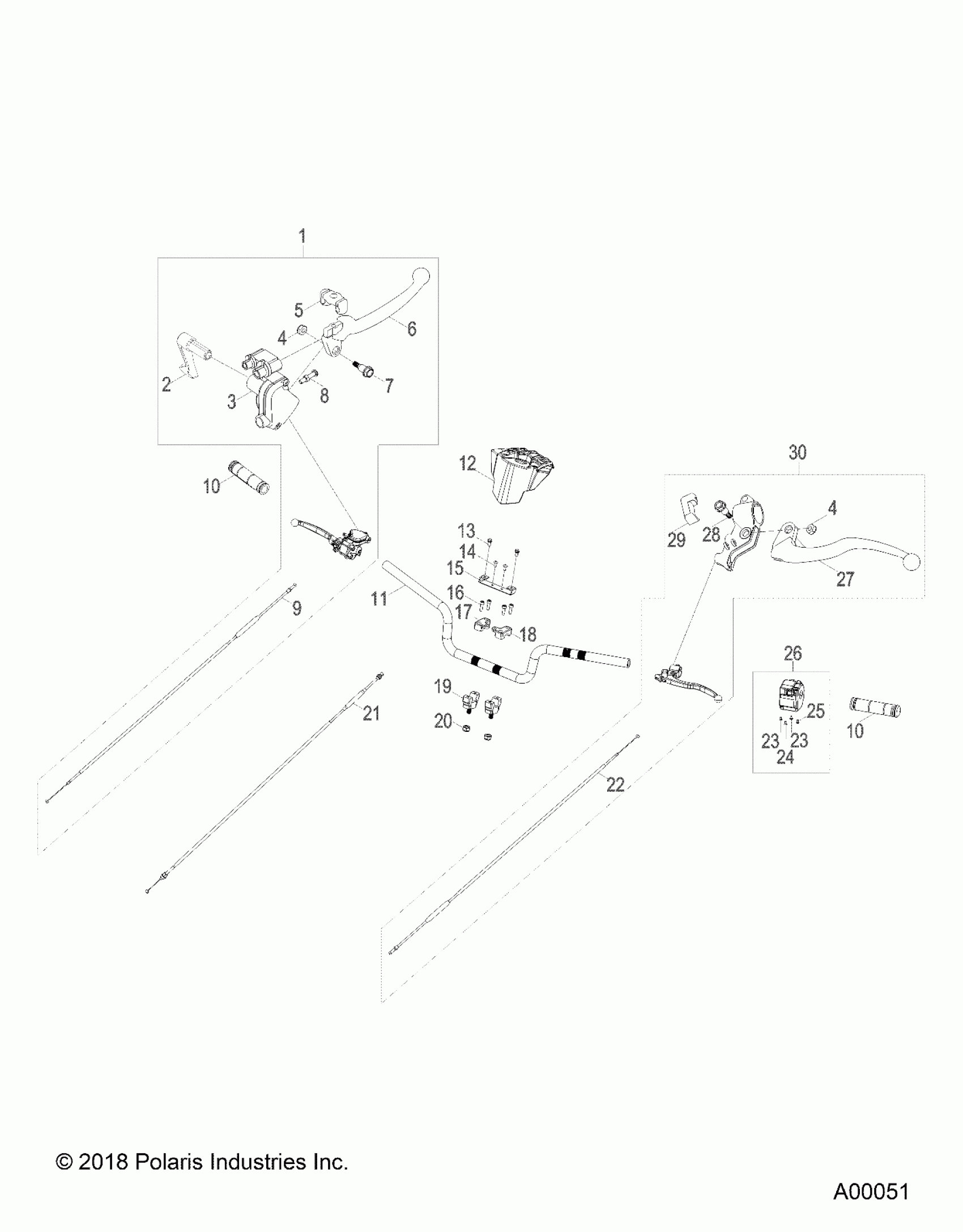

Polaris OUTLAW 110 (R02) - A22YAK11B6/B7 STEERING, HANDLEBAR - A22YAK11B6/B7 (A00051) Diagram

ASM-LEVER,RH,110 [INCL. 2-8]

ARM, THROTTLE

MOUNT, LEVER, BRAKE, RH

NUT

NUT

BRACKET, BRAKE CABLE

LEVER, BRAKE, SIDE

BOLT, BRAKE LEVER, RH

SCR W/JAM NUT THROTTLE STOP

CABLE, BRAKE SWITCH

GRIP, HANDLEBAR

GRIP, HANDLEBAR

HANDLEBAR

POD-UPPER,110,A.GRAY

Bolt

Bolt

BRACKET, POD

BOLT

COVER, CLAMP, RH

COVER, CLAMP, LH

CLAMP, SADDLE

NUT

CABLE, THROTTLE

CABLE, SENSOR, BRAKE

SCREW

SCREW

BOLT

BOLT

ASM., SWITCH, LH [INCL. 23-25]

LEVER, BRAKE, SIDE, BLACK

BOLT

LOCK, PARK BRAKE

ASM., LEVER, BRAKE, LH [INCL. 4,22,27,28]
