- OUTLAW 110 (R02) - A22YAK11B6/B7
DRIVE TRAIN, TRANSMISSION - A2YAK11B6/B7 (A00072)

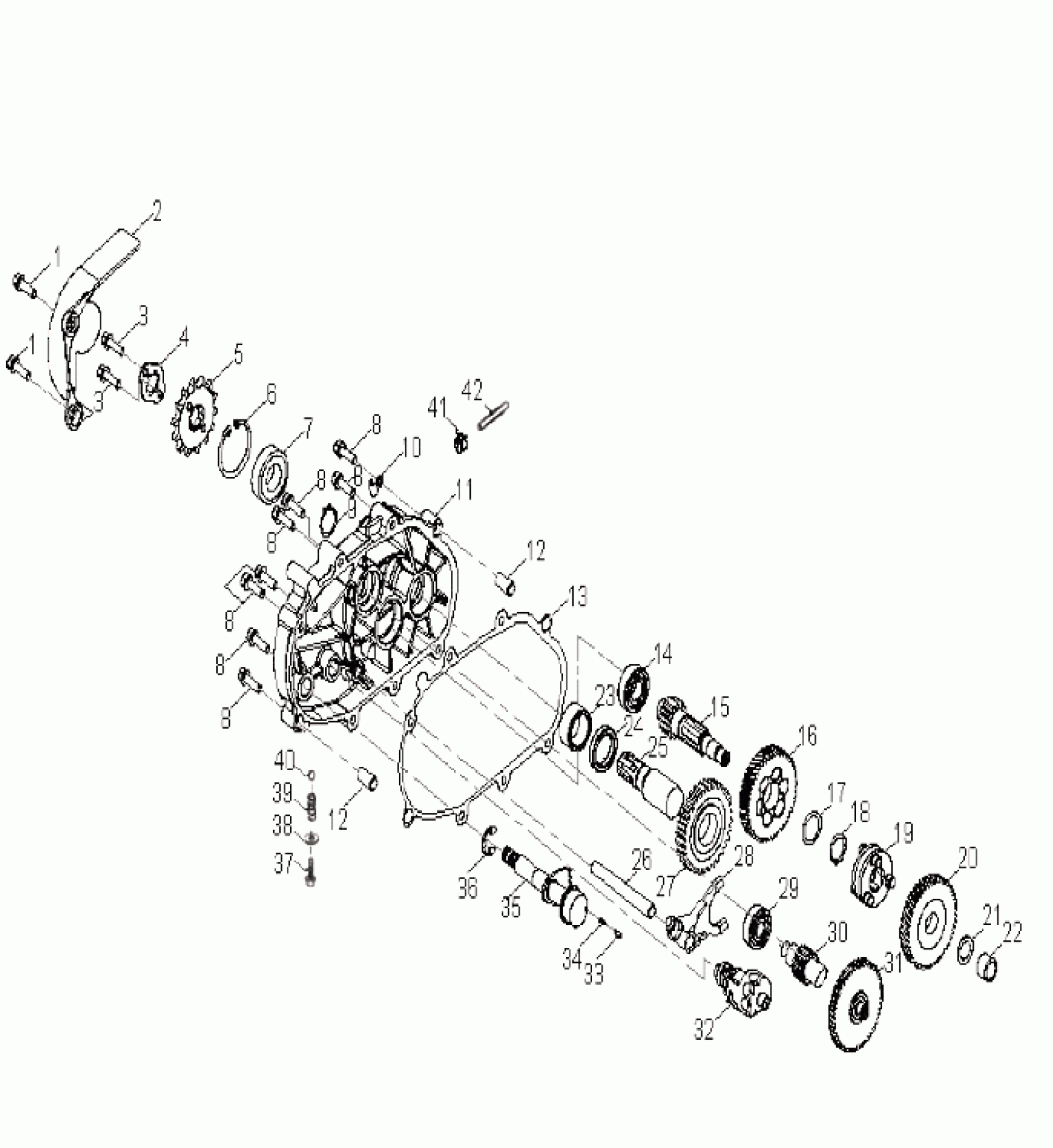

Polaris OUTLAW 110 (R02) - A22YAK11B6/B7 DRIVE TRAIN, TRANSMISSION - A2YAK11B6/B7 (A00072) Diagram
#
1
SCREW,CHAIN PROTECTOR
0455440
$3.19
1
SCREW,CHAIN PROTECTOR
0455440
$3.19
2
ASM., SPROCKET COVER
0453650
$47.99
3
BOLT
0453505
$3.99
4
BRACKET, SPROCKET
0453458
$10.39
5
SPROCKET, DRIVE
0453457
$35.99
6
CIRCLIP
0450162
$5.59
7
BEARING, BALL
0454248
$31.99
8
BOLT
0452331
$3.99
8
BOLT
0452331
$3.99
8
BOLT
0452331
$3.99
8
BOLT
0452331
$3.99
8
BOLT
0452331
$3.99
8
BOLT
0452331
$3.99
8
BOLT
0452331
$3.99
9
CLIP, CIR
0452339
$3.99
10
RETAINER-BREATHER TUBE
0455235
$6.39
11
ASM., TRANSMISSION COVER
0453642
$203.99
12
PIN, DOWEL
0450142
$3.99
12
PIN, DOWEL
0450142
$3.99
13
GASKET-COVER,TRANSMISSION
0455487
$13.59
14
BEARING
0452156
$15.99
15
SHAFT, TRANSMISSION
0453645
$115.99
16
ASM., REVERSE GEAR
0453312
$115.99
17
WASHER
0452152
$3.99
18
CIRCLIP
0450060
$3.99
19
RATCHET, SHIFT
0452151
$83.99
20
ASM., GEAR, SPUR
0453220
$91.99
21
WASHER
0452148
$3.99
22
Collar, Shaft
0452147
Unavailable
23
BEARING
0450258
$63.99
24
SEAL, OIL
0450259
$6.39
25
SHAFT
0453643
$99.99
26
SHAFT, GEAR SHIFT
0452158
$8.79
27
GEAR
0453644
$99.99
28
FORK, SHIFT
0452157
$59.99
29
BEARING, BALL
0450254
$23.99
30
SHAFT, COUNTER
0452145
$63.99
31
GEAR, COUNTER
0452146
$75.99
32
ASM., DRUM, GEAR SHIFT
0452159
$159.99
33
ROLLER-DRUM SENSOR
0452163
$7.19
34
SPRING, DRUM SENSOR
0452162
$3.99
35
SPINDLE
0452160
$63.99
36
E-CLIP
0452161
$3.99
37
BOLT
0452137
$7.19
38
WASHER-FLAT
0452136
$3.99
39
SPRING, DETENT
0452135
Unavailable
40
BALL, STEEL
0452134
$4.79
41
CLAMP, TRANSM 110
0455246
$3.99
42
TUBE, BREATHER
0455236
$13.59
