- Outlander STD, XT, 400 EFI, 2013
10- Electrical Accessories 1

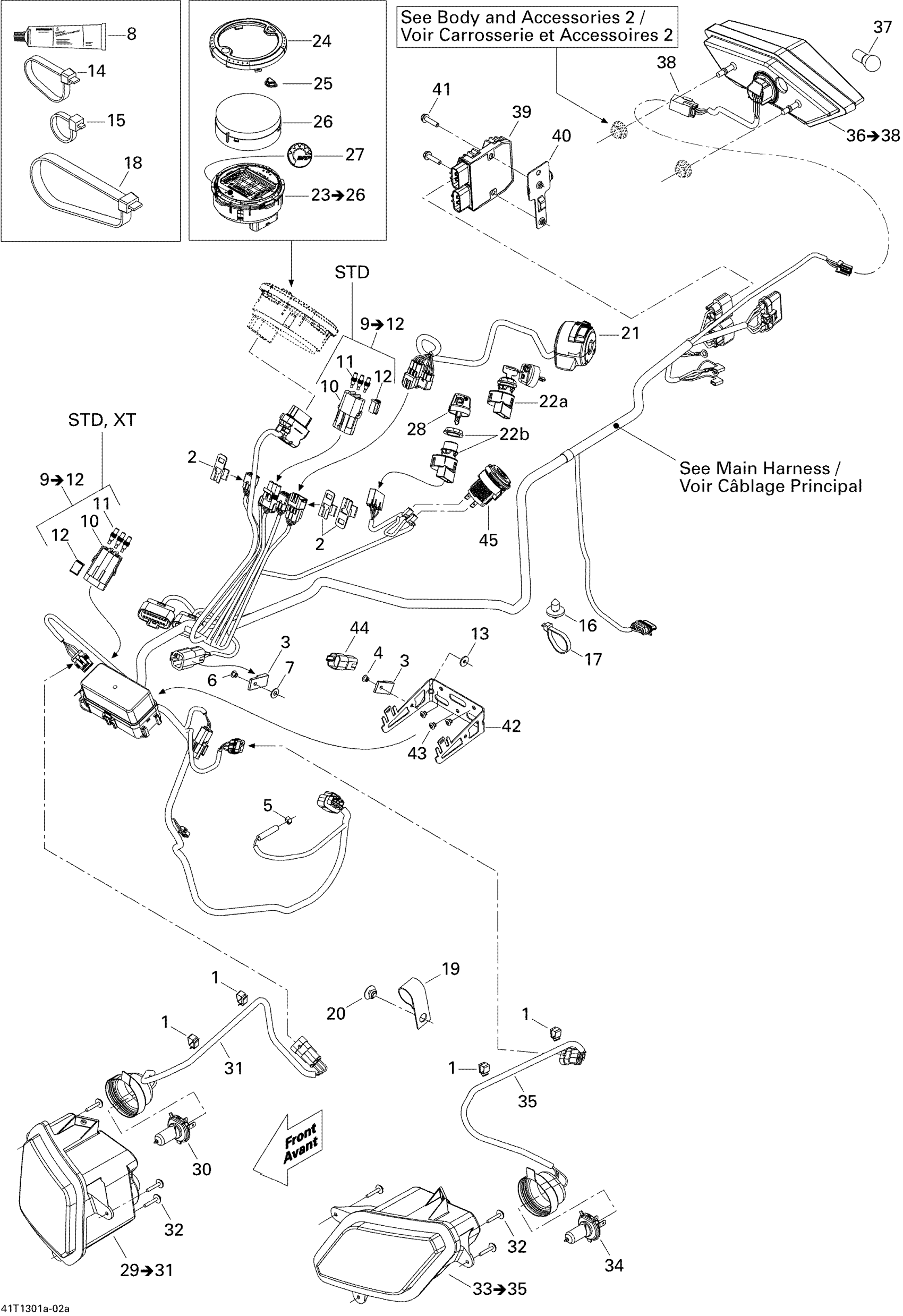

Can-Am Outlander STD, XT, 400 EFI, 2013 10- Electrical Accessories 1 Diagram
#
1
Clip
414227300
Unavailable
2
Housing Support
515175283
Unavailable
3
Clip
270000141
Unavailable
4
Pop Rivet 3/16"
390402300
Unavailable
5
Oetiker Clamp
293650100
Unavailable
6
Pop Rivet 3/16"
390402300
Unavailable
7
FLAT WASHER - Call your local BRP dealership | 4X4
250200081
Unavailable
8
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
9
Connector Ass'y | STD / Includes 7 to 10
710000917
Unavailable
10
Female Terminal Housing, 3 Circuits | XT Models
278000281
Unavailable
11
Wire Seal
278000216
Unavailable
12
Clip
710000992
Unavailable
13
Washer
517124300
Unavailable
14
Tie Wrap 368 mm
293750008
Unavailable
15
Tie-Rap 180 mm
414115200
Unavailable
16
Mount Dart
293730040
Unavailable
17
Tie Wrap 368 mm
293750008
Unavailable
18
Tie-rap 627 mm
293750041
Unavailable
19
CLAMP - Call your local BRP dealership
705600311
Unavailable
20
Pop Rivet 3/16"
390406500
Unavailable
21
Handle Kit | STD
703500919
Unavailable
22a
Ignition Switch With Key
710002323
Unavailable
22b
Ignition Switch | Includes 16 to 17
710002324
Unavailable
23
Speedometer Ass'y | Includes 18 to 21
710003100
Unavailable
24
Trim Ring
710001416
Unavailable
25
Button
710001473
Unavailable
26
Lens
415129320
Unavailable
27
BRP Logo13 mm
704904615
Unavailable
28
Black, Electronic Key
710000817
Unavailable
29
RH Headlamp Ass'y | Includes 20 to 22
710001496
Unavailable
30
Bulb, 12V 35/35W
710000871
Unavailable
31
LIGHT HARNESS - Call your local BRP dealership
710000828
Unavailable
32
Plastite Screw Type K-40, M4 X 25
250000101
Unavailable
33
LH Headlamp Ass'y | Includes 24 to 26
710001497
Unavailable
34
Bulb, 12V 35/35W
710000871
Unavailable
35
LIGHT HARNESS - Call your local BRP dealership
710000828
Unavailable
36
Tail Light Housing Ass'y | Includes 29 to 31
710001203
Unavailable
37
Bulb
520000758
Unavailable
38
Male Housing, 3 Circuits
515175494
Unavailable
39
Voltage Regulator | For replacement, refer to service bulletin 2005-5
710001103
Unavailable
40
RECTIFIER SUPPORT - Call your local BRP dealership
710001262
Unavailable
41
Hexagonal Head Screw
210262050
Unavailable
42
FUSE SUPPORT - Call your local BRP dealership
710002176
Unavailable
43
Pop Rivet 3/16"
390402400
Unavailable
44
Diagnostic Connector
278002704
Unavailable
45
DC Outlet
710001248
Unavailable
