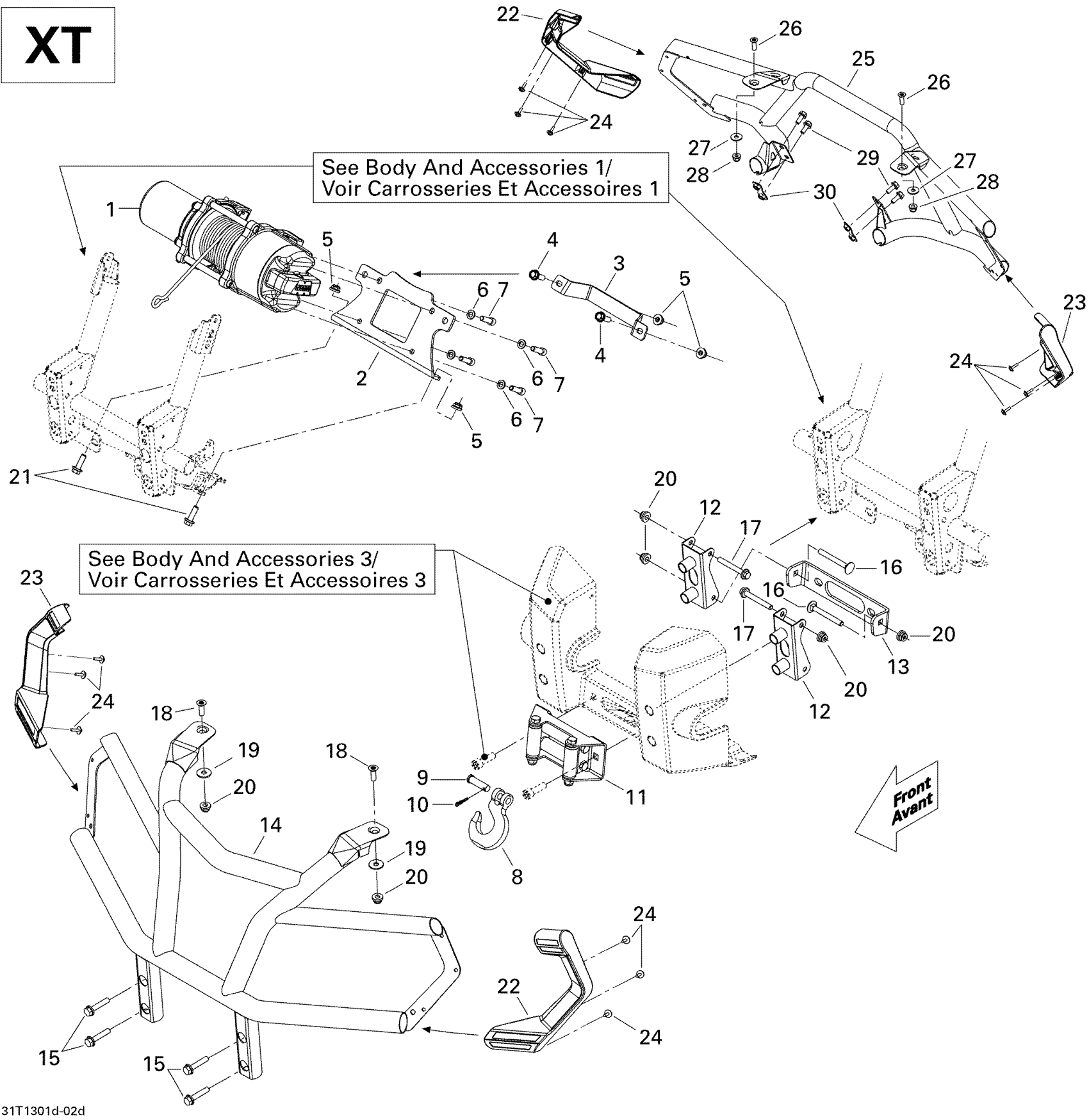

Can-Am Outlander STD, XT, 400 EFI, 2013 09- Body And Accessories XT Diagram

#

Description
Price

1

WINCH - Call your local BRP dealership | Europe

705008546

Unavailable

2

BLACK MOUNTING PLATE - Call your local BRP dealership | XT

705004278

Unavailable

3

BLACK WINCH BRACKET - Call your local BRP dealership | XT

705001460

Unavailable

4

Hex. Flange Screw M8 X 25

207682544

Unavailable

5

Hex. Flange Elastic Nut M8

233281414

Unavailable

6

Lock Washer 8 mm

234181401

Unavailable

7

Socket Head Screw M8 X 20

205082044

Unavailable

8

Winch Hook Kit

705014949

Unavailable

9

Clevis Pin

250400021

Unavailable

10

Cotter Pin

250400022

Unavailable

11

Fairlead_Roller Kit

715007699

Unavailable

12

BUMPER BRACKET - Call your local BRP dealership

705003828

Unavailable

13

WINCH BRACKET - Call your local BRP dealership

705003649

Unavailable

14

Front Bumber | XT

705002812

Unavailable

15

Hex. Flange Screw M8 X 40, Scotch Grip

207584044

Unavailable

16

Carriage Bolt M8 X 70

207787044

Unavailable

17

Hex. Flange Screw M8 x 60

207686044

Unavailable

18

TORX SCREW M8 X 25 - Call your local BRP dealership

235482584

Unavailable

19

Flat Washer 8 mm

234082410

Unavailable

20

Hex. Flange Elastic Nut M8

233281414

Unavailable

21

Hex. Flange Screw M8 X 25

207682544

Unavailable

22

LH Front Cap | XT

705002802

Unavailable

23

RH Front Cap | XT

705002803

Unavailable

24

Screw M4 X 16

250000725

Unavailable

25

Rear Bumber | XT

705002806

Unavailable

26

TORX SCREW M8 X 25 - Call your local BRP dealership

235482584

Unavailable

27

Flat Washer 8 mm

234082410

Unavailable

28

Hex. Flange Elastic Nut M8

233281414

Unavailable

29

Hex Screw Washer Head M8 X 20

207582054

Unavailable

30

LINK PLATE - Call your local BRP dealership

705003796

Unavailable
