09- Body And Accessories 2

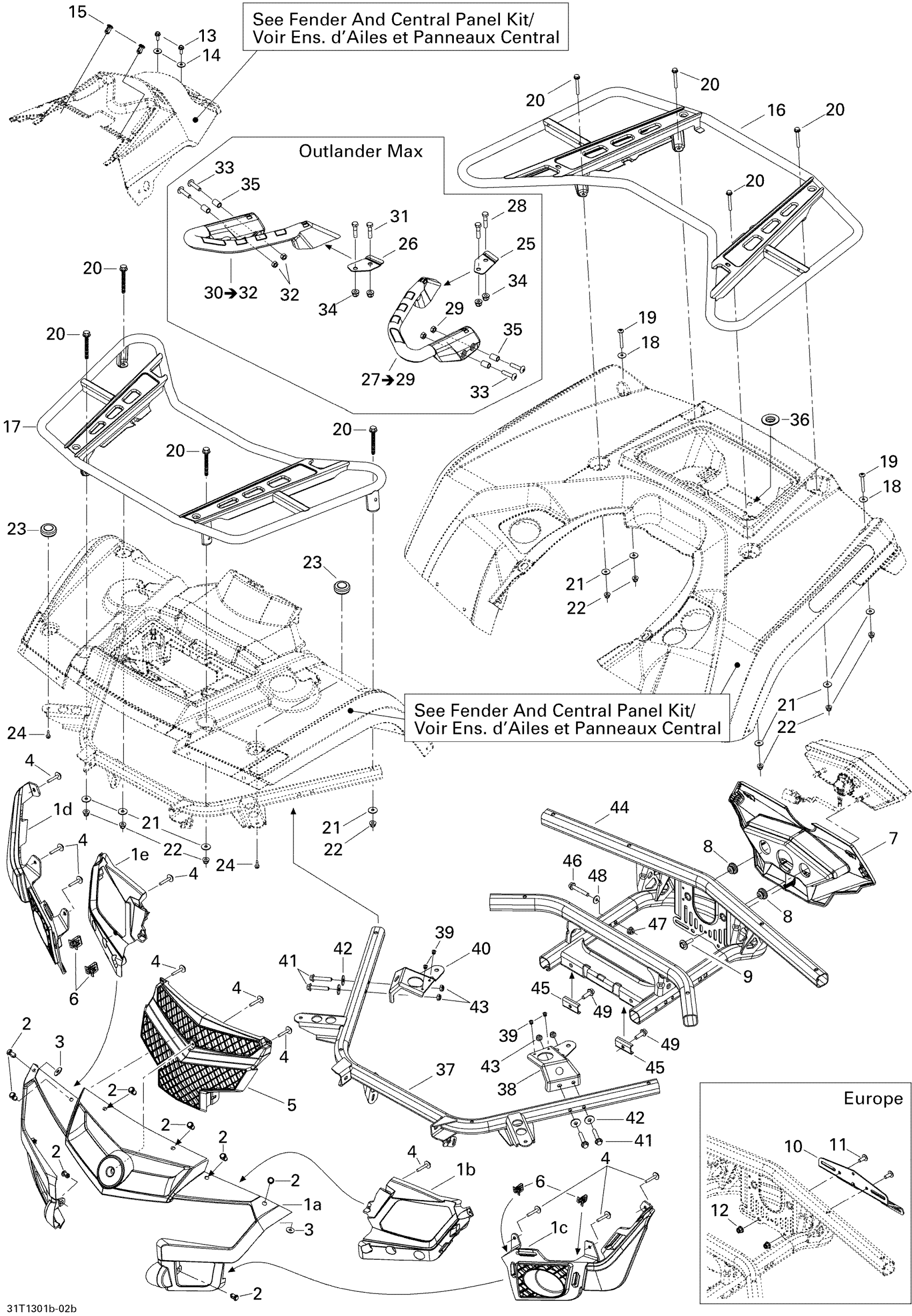

Can-Am Outlander STD, XT, 400 EFI, 2013 09- Body And Accessories 2 Diagram
#
1a
YELLOW FRONT FASCIA - Call your local BRP dealership | Yellow
705002778
Unavailable
1a
RED FRONT FASCIA - Call your local BRP dealership | Red
705003080
Unavailable
1b
LH Head Lamp Support
705002825
Unavailable
1c
LH LOWER FRONT FACIA - Call your local BRP dealership
705002780
Unavailable
1c
LH LOWER FRONT FACIA - Call your local BRP dealership | Europe
705002889
Unavailable
1d
RH LOWER FRONT FACIA - Call your local BRP dealership
705002781
Unavailable
1d
RH LOWER FRONT FACIA - Call your local BRP dealership | Europe
705002890
Unavailable
1e
RH Head Lamp Support
705002826
Unavailable
2
Tuflok Plastic Rivet
293150230
Unavailable
3
Washer
506151252
Unavailable
4
Plastite Screw Type K-40, M4 X 25
250000101
Unavailable
5
UPPER GRILL - Call your local BRP dealership
705002779
Unavailable
6
Edge Clip
517302785
Unavailable
7
Rear Facia
705003840
Unavailable
8
Stopper Rubber
705014429
Unavailable
9
Screw M4 X 16
250000725
Unavailable
10
SUPPORT - Call your local BRP dealership | Europe
705002499
Unavailable
11
Torx Screw M6 X 16
250000755
Unavailable
12
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
13
Hex. Flange Screw M6 X 16
210261650
Unavailable
14
Flat Washer
250200082
Unavailable
15
Tuflok Plastic Rivet
293150230
Unavailable
16
Rear Luggage Rack
705002617
Unavailable
17
Front Luggage Rack
705002616
Unavailable
18
Flat Washer
250200040
Unavailable
19
Torx Truss Screw M6 X 50
250000749
Unavailable
20
Hex. Screw M6 X 55
207065544
Unavailable
21
Flat Washer
224061201
Unavailable
22
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
23
RUBBER CAP - Call your local BRP dealership
705003667
Unavailable
24
HEX. SCREW 12 X 3/4 - Call your local BRP dealership
365901100
Unavailable
25
Not Available As Spare Parts
XXX
Unavailable
26
Not Available As Spare Parts
XXX
Unavailable
27
Not Available As Spare Parts
XXX
Unavailable
28
Not Available As Spare Parts
XXX
Unavailable
29
Not Available As Spare Parts
XXX
Unavailable
30
Not Available As Spare Parts
XXX
Unavailable
31
Not Available As Spare Parts
XXX
Unavailable
32
Not Available As Spare Parts
XXX
Unavailable
33
Not Available As Spare Parts
XXX
Unavailable
34
Not Available As Spare Parts
XXX
Unavailable
35
Not Available As Spare Parts
XXX
Unavailable
36
CAP - Call your local BRP dealership
414859400
Unavailable
37
FRONT SUPPORT - Call your local BRP dealership
705003655
Unavailable
38
LH ANCHOR PLATE - Call your local BRP dealership
705002995
Unavailable
39
Pop Rivet 3/16"
390402300
Unavailable
40
RH Anchor Plate
705002997
Unavailable
41
Hex. Flange Screw M8 X 45
207684544
Unavailable
42
Flat Washer 8 mm
234082410
Unavailable
43
Hex. Elastic Stop Nut M8
232581414
Unavailable
44
Rear Support
705003656
Unavailable
45
U Reinforcement
705003647
Unavailable
46
Hex. Flange Screw M8 X 50
207685044
Unavailable
47
Hex. Flange Elastic Nut M8
233281414
Unavailable
48
Flat Washer 8 mm
234082410
Unavailable
49
Hex. Flange Screw M8 X 20, Scotch Grip
207582044
Unavailable
