07- Drive System, Front

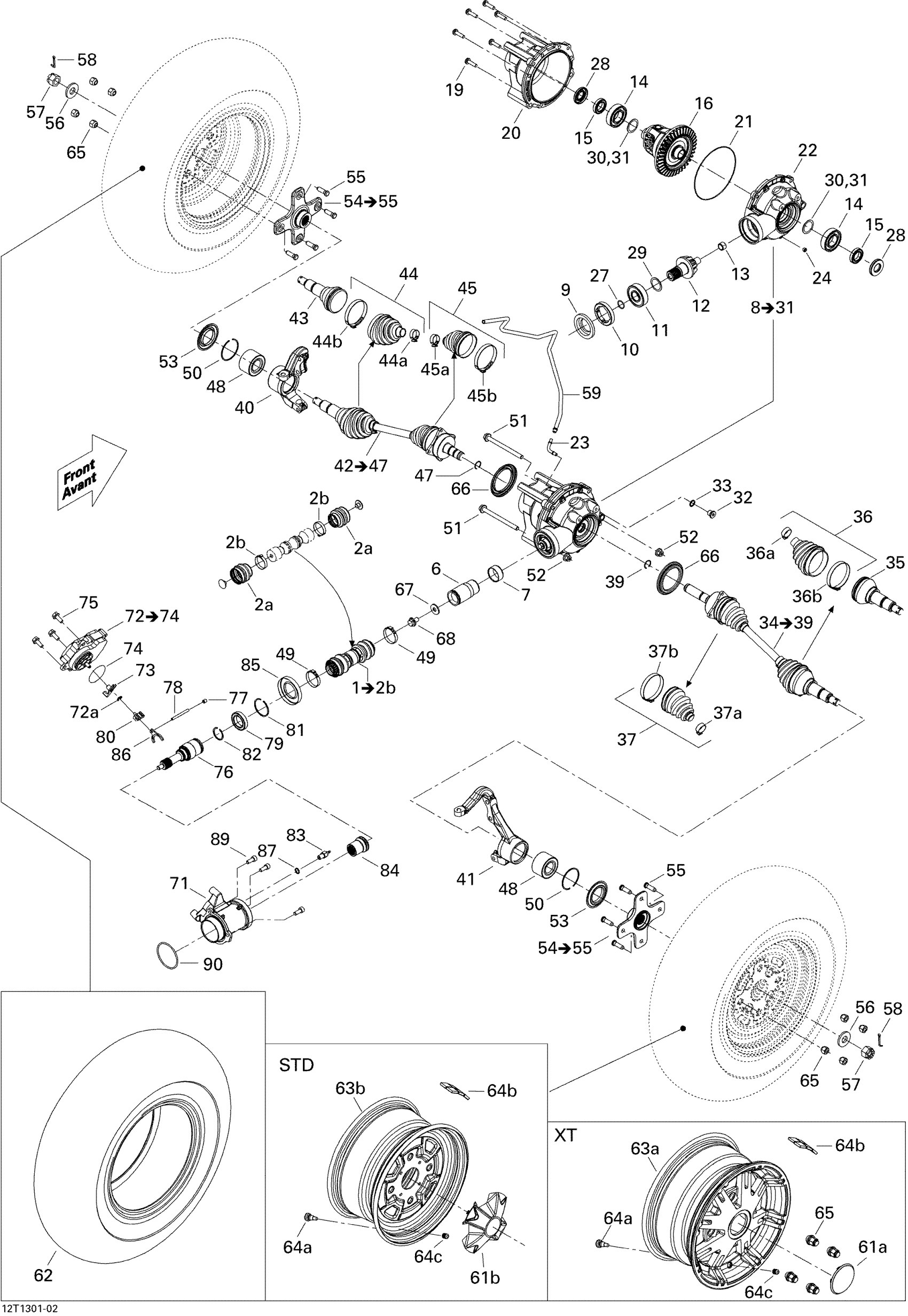

Can-Am Outlander STD, XT, 400 EFI, 2013 07- Drive System, Front Diagram
#
1
Front Drive Axle Ass'y | 4X4 / Includes 1 to 5
705400912
Unavailable
2a
Rubber Boot
715900118
Unavailable
2b
Oetiker Gear Clamp 36.1MM
509000045
Unavailable
6
Front Bushing Shaft Kit | 4X4
703500678
Unavailable
7
Wear Ring | 4X4
705400036
Unavailable
8
Front Differential | Includes 8 to 31
703500907
Unavailable
9
Oil Seal | 4X4
705401481
Unavailable
10
Nut | 4X4
705401603
Unavailable
11
Ball Bearing | 4X4
705500260
Unavailable
12
10 TEETH PINION - Call your local BRP dealership
705501588
Unavailable
13
Needle Bearing | 4X4
705500261
Unavailable
14
Ball Bearing | 4X4
705401606
Unavailable
15
Ball Bearing | 4X4
293350044
Unavailable
16
Ens Differentiel*Differential Kit | 4X4
703500871
Unavailable
19
Screw | 4X4
705401601
Unavailable
20
FRONT COVER - Call your local BRP dealership
705400762
Unavailable
21
Seal | 4X4
705500265
Unavailable
22
FRONT COVER - Call your local BRP dealership
705400761
Unavailable
23
VENT VALVE - Call your local BRP dealership | 4X4
705500893
Unavailable
24
Drain Plug | 4X4
705500894
Unavailable
27
O-Ring | 4X4
705500267
Unavailable
28
Gasket | 4X4
705401618
Unavailable
29
Pinion Gear Shim 1.67 mm
705502061
Unavailable
29
Pinion Gear Shim .022"
705500075
Unavailable
29
Pinion Gear Shim
705501162
Unavailable
30
Shim | 4X4
705401604
Unavailable
31
Shim | 4X4
705401604
Unavailable
32
Fill Level Plug | 4X4
705500504
Unavailable
33
Copper Washer | 4X4
705500506
Unavailable
34
RH Half Shaft | Includes 34 to 39
705401579
Unavailable
35
Not Available As Spare Part - Friction Washer
Unavailable
36
Not Available As Spare Part - Friction Washer
Unavailable
36a
Not Available As Spare Part - Friction Washer
Unavailable
36b
Not Available As Spare Part - Friction Washer
Unavailable
37
Not Available As Spare Part - Friction Washer
Unavailable
37a
Not Available As Spare Part - Friction Washer
Unavailable
37b
Not Available As Spare Part - Friction Washer
Unavailable
39
Not Available As Spare Part - Friction Washer
Unavailable
40
LH Knuckle
705400816
Unavailable
41
RH Knuckle
705400818
Unavailable
42
LH Half Shaft | Includes 42 to 47
705401578
Unavailable
43
Not Available As Spare Part - Friction Washer
Unavailable
44
Not Available As Spare Part - Friction Washer
Unavailable
44a
Not Available As Spare Part - Friction Washer
Unavailable
44b
Not Available As Spare Part - Friction Washer
Unavailable
45
Not Available As Spare Part - Friction Washer
Unavailable
45a
Not Available As Spare Part - Friction Washer
Unavailable
45b
Not Available As Spare Part - Friction Washer
Unavailable
47
Not Available As Spare Part - Friction Washer
Unavailable
48
Ball Bearing
293350150
Unavailable
49
Oetiker Gear Clamp 44.0MM | 4X4
293650138
Unavailable
50
Circlip
293370019
Unavailable
51
Hex. Flange Screw M10 X 125
230602546
Unavailable
52
Hex. Flange Elastic Nut M10
233201436
Unavailable
53
Wear Sleeve | 4X4
705501121
Unavailable
54
LH WHEEL HUB ASSEMBLY - Call your local BRP dealership | 4X4 / Includes 65 to 66
705501713
Unavailable
55
Wheel Stud M10 X 1.25 | 2X4
250300055
Unavailable
56
Conical Spring Washer M18
250200171
Unavailable
57
Hex. Flange Castellated Nut M18
232291413
Unavailable
58
Cotter Pin
250400036
Unavailable
59
Polyurethane Hose 10000Mm Long
219704410
Unavailable
61a
Wheel Cap | STD
705400563
Unavailable
61b
WHEEL CAP - Call your local BRP dealership
705400680
Unavailable
62
Front Tire | XT
705400606
Unavailable
63a
RIM_12 INCH X 6 - Call your local BRP dealership | XT (Except Camo)
705400648
Unavailable
64a
Rim Valve With Cap
705400193
Unavailable
64b
1/2 Oz Weight
219704465
Unavailable
62
Front Tire | XT
705400326
Unavailable
62
Front Tire | STD Europe
705401626
Unavailable
63b
Black,12" X 6 Rim | STD
705401199
Unavailable
62
Tire 205 X 80 R12
705402890
Unavailable
64c
Valve Cap
293000110
Unavailable
65
Steel Wheel Nut
250100042
Unavailable
65
Chrome Wheel Nut M10 X 1.25 | XT
250100185
Unavailable
66
Wear Sleeve
705400780
Unavailable
67
Flat Washer M12
250200102
Unavailable
68
HEX FLANGED SCREW M12 X 16, SCOTCH GRIP - Call your local BRP dealership
250000378
Unavailable
71
HOUSING - Call your local BRP dealership | 4X4
705400169
Unavailable
72
Actuator Ass'Y | Includes 72 to 74
715900502
Unavailable
72a
Circlip | 4X4
293370042
Unavailable
73
Fork | 4X4
705400274
Unavailable
74
O-Ring
293300117
Unavailable
75
Hex. Flange Screw M8 X 20, Scotch Grip | 4X4
250000137
Unavailable
76
UNION SHAFT - Call your local BRP dealership | 4X4
705400917
Unavailable
77
Pressure Screw M8 X 8 | 4X4
206580890
Unavailable
78
Dowell Pin | 4X4
250400025
Unavailable
79
Ball Bearing | 4X4
705400249
Unavailable
80
Slider | 4X4
705402139
Unavailable
81
Circlip | 4X4
293370029
Unavailable
82
Circlip | 4X4
293370030
Unavailable
83
SWITCH - Call your local BRP dealership | 4X4
710000324
Unavailable
84
Coupling Sleeve | 4X4
705400389
Unavailable
85
Oil Seal | 4X4
293250138
Unavailable
86
Shifter Lever Plate | 4X4
705401553
Unavailable
87
Copper Washer
705601628
Unavailable
89
Socket Head Screw M8 X 20, Scotch Grip
250000136
Unavailable
90
O-Ring
293300091
Unavailable
