05- Transmission

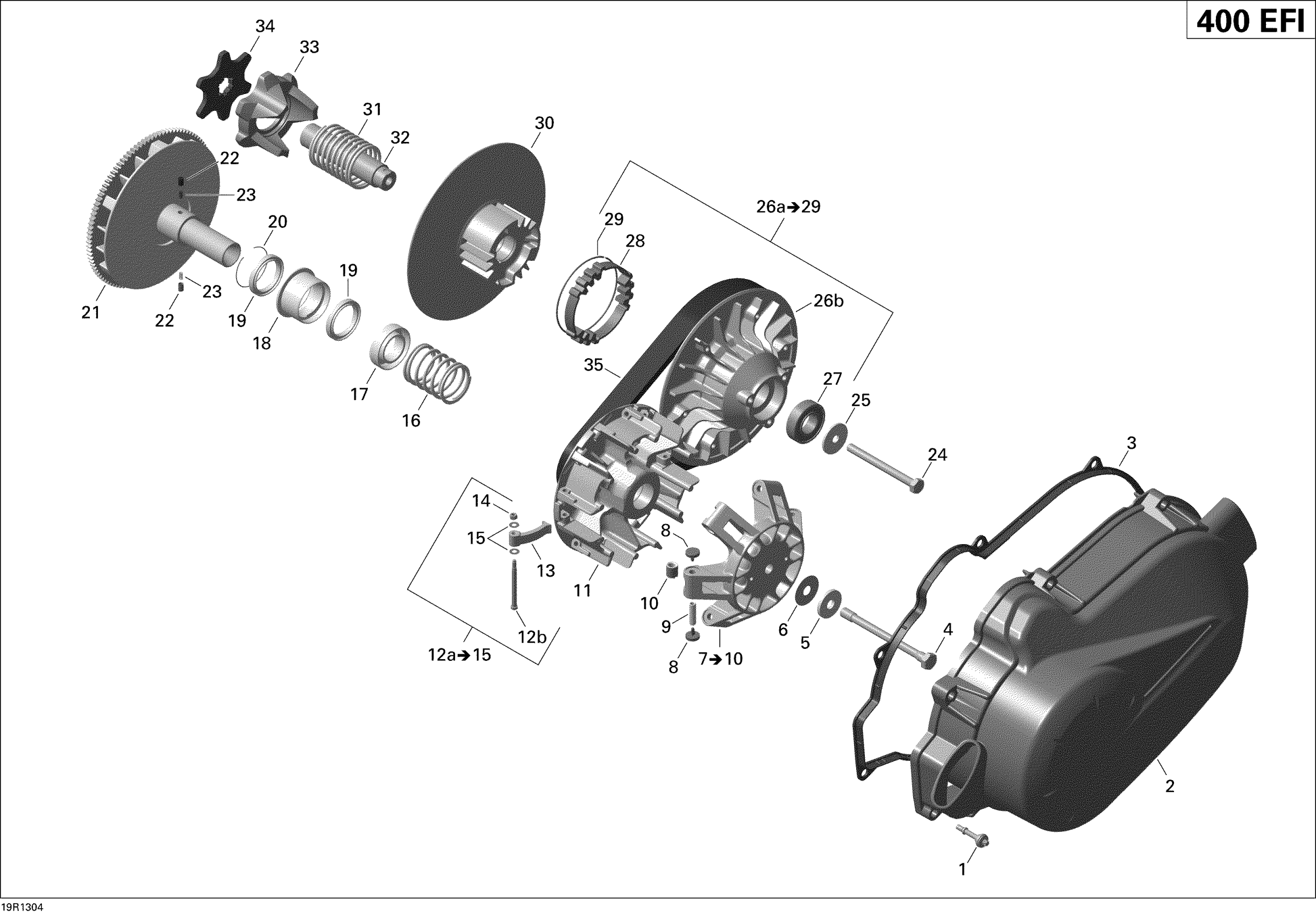

Can-Am Outlander STD, XT, 400 EFI, 2013 05- Transmission Diagram
#
1
Hex Screw M6 X 30
420440568
Unavailable
2
CVT Cover
420610428
Unavailable
3
CVT Cover Gasket
420630290
Unavailable
4
Hex. Screw M12 X 140
420641812
Unavailable
5
Spring Washer
420627760
Unavailable
6
Thrust Washer
420627920
Unavailable
7
Governor Cup Ass'y | Includes 6 to 9
420280522
Unavailable
8
Slider Shoe Set
420281296
Unavailable
9
Roller Axle
417223257
Unavailable
10
Roller
417223767
Unavailable
11
Outer Haft
420280467
Unavailable
12a
Centrifugal Lever Set | 400HO / Includes 14 to 16
420248424
Unavailable
12b
Not Available As Spare Part - Friction Washer
Unavailable
13
Not Available As Spare Part - Friction Washer
Unavailable
14
Not Available As Spare Part - Friction Washer
Unavailable
15
Not Available As Spare Part - Friction Washer
Unavailable
16
Compression Spring
420238166
Unavailable
17
Seat Spring
420627578
Unavailable
18
Clutch
420257439
Unavailable
19
Ball Bearing
420632377
Unavailable
20
Retaining Ring
420245951
Unavailable
21
Inner Half Ass'y
420280247
Unavailable
22
Spring Sleeve
420229577
Unavailable
23
Compression Spring
420239135
Unavailable
24
Hex. Screw M10 X 110
420441485
Unavailable
25
Thrust Washer
420627590
Unavailable
26a
Outer Half Pulley Ass'y | Includes 27 to 32
420280178
Unavailable
26b
Not Available As Spare Part - Friction Washer
Unavailable
27
Ball Bearing
420932421
Unavailable
28
Torque Gear
420660124
Unavailable
29
Retaining Ring
420245911
Unavailable
30
Inner Half Ass'y | Includes 33 to 35
420248233
Unavailable
31
Compression Spring, Driven Pulley
420238173
Unavailable
32
Driven Pulley Shaft
420220914
Unavailable
33
Cam
420280250
Unavailable
34
Cam Plate
420627586
Unavailable
35
Drive Belt
422280283
Unavailable
