05- Gear Shift

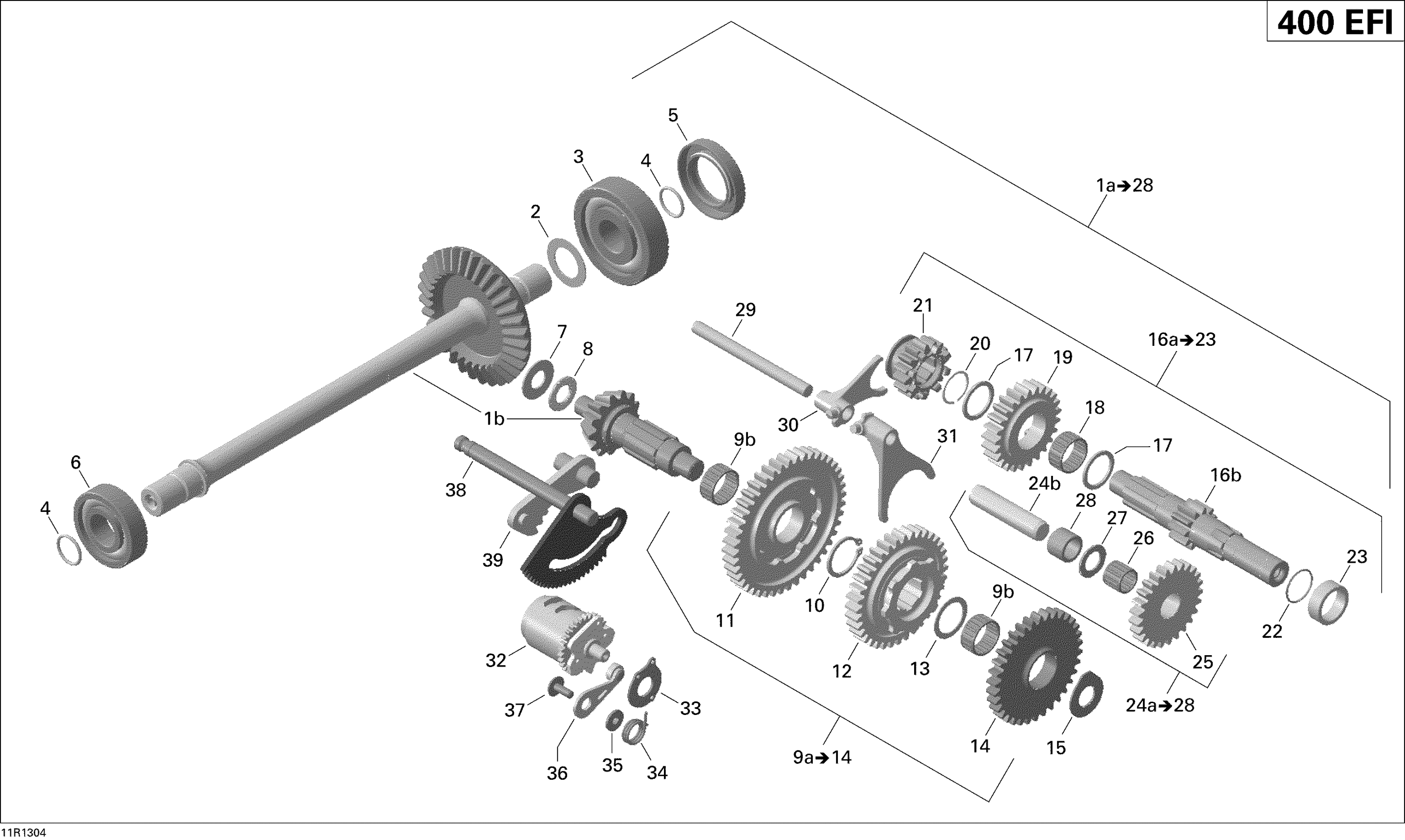

Can-Am Outlander STD, XT, 400 EFI, 2013 05- Gear Shift Diagram
#
1a
DRIVE ASS'Y - Call your local BRP dealership | Includes 1 to 24
420684221
Unavailable
1b
BEVEL GEAR ASSEMBLY - Call your local BRP dealership
420635556
Unavailable
2
Washer Thrust Set
420281300
Unavailable
3
Ball Bearing 6405
420632280
Unavailable
4
O-Ring
420430373
Unavailable
5
Oil Seal
420650682
Unavailable
6
Ball Bearing
420932822
Unavailable
7
Thrust Washer Set, MAG Side
420281306
Unavailable
8
Axial Needle Bearing
420632300
Unavailable
9a
Gear Wheel Set | 400HO, Includes 2a to 7
420281285
Unavailable
9b
Needle Bearing
420632070
Unavailable
10
Retaining Ring
420245850
Unavailable
11
Not Available As Spare Part - Friction Washer
Unavailable
12
Not Available As Spare Part - Friction Washer
Unavailable
13
Not Available As Spare Part - Friction Washer
Unavailable
14
Not Available As Spare Part - Friction Washer
Unavailable
15
Thrust Washer Set, CVT Side
420281302
Unavailable
16a
Countershaft Ass'y, 11 Teeth | Includes 10 to 18
420620441
Unavailable
16b
Not Available As Spare Part - Friction Washer
Unavailable
17
Not Available As Spare Part - Friction Washer
Unavailable
18
Needle Bearing
420632070
Unavailable
19
Not Available As Spare Part - Friction Washer
Unavailable
20
Circlip
420445302
Unavailable
21
Not Available As Spare Part - Friction Washer
Unavailable
22
O-Ring
420630040
Unavailable
23
Distance Ring
420247114
Unavailable
24a
INTERMEDIATE GEAR SHAFT ASS'Y - Call your local BRP dealership | Includes 16a to 20
420635673
Unavailable
24b
Needle Pin
420229600
Unavailable
25
Not Available As Spare Part - Friction Washer
Unavailable
26
Needle Cage
420432034
Unavailable
27
Not Available As Spare Part - Friction Washer
Unavailable
28
Not Available As Spare Part - Friction Washer
Unavailable
29
Pin
420229540
Unavailable
30
Shift Fork
420257332
Unavailable
31
Shift Fork
420257342
Unavailable
32
Shift Drum Ass'y
420257325
Unavailable
33
ISOLATING WASHER - Call your local BRP dealership
420627780
Unavailable
34
Index Spring
420238290
Unavailable
35
Step Ring
420227717
Unavailable
36
Index Lever Kit
703500254
Unavailable
37
Torx Screw M6 X 16
420241529
Unavailable
38
Shift Shaft Ass'y
420620136
Unavailable
39
Parking Lock Lever
420257316
Unavailable
