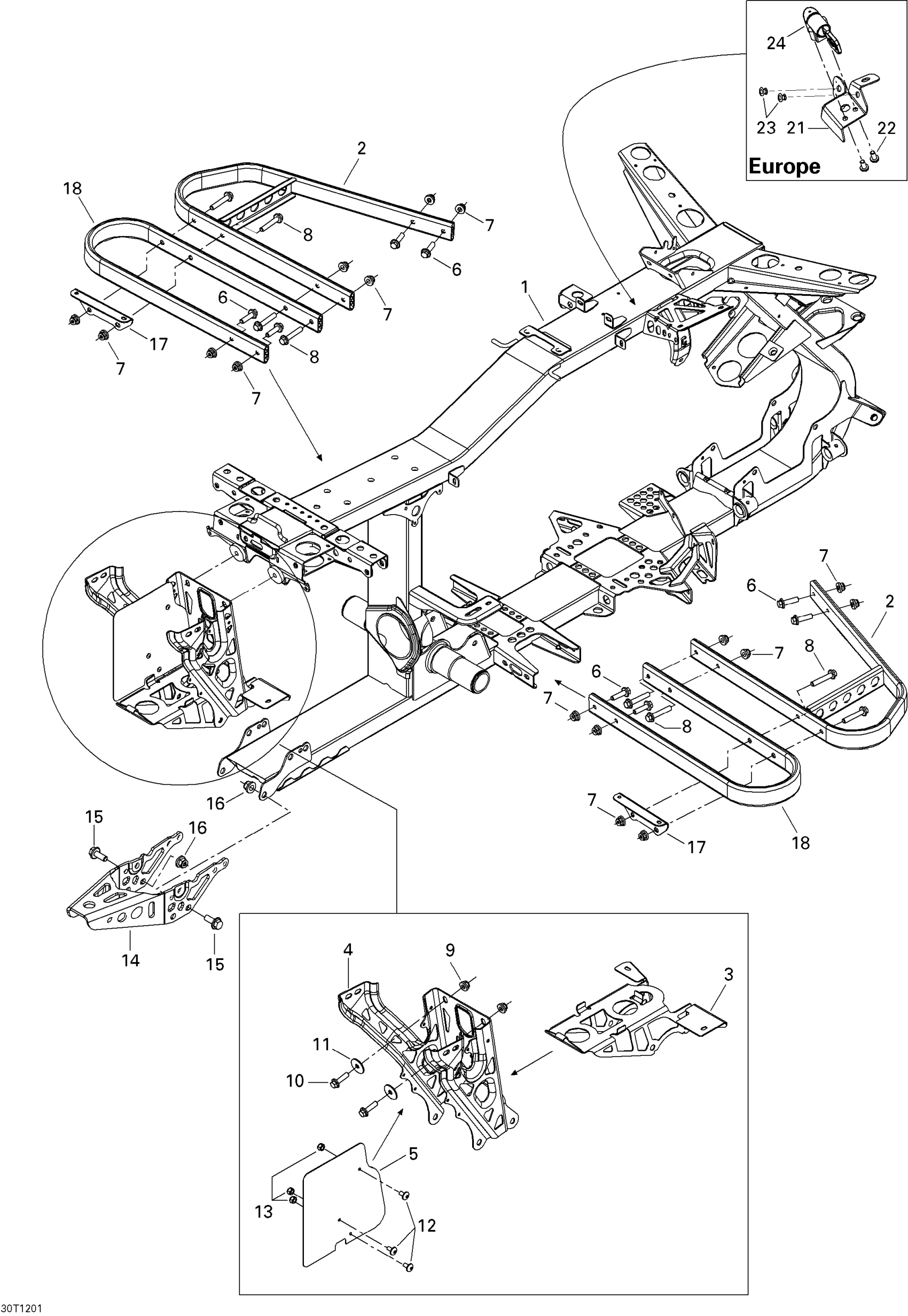

Can-Am Outlander STD, XT, 400 EFI, 2012 Frame Diagram

#

Description
Price

1

FRAME, BLACK. - Call your local BRP dealership

705203837

Unavailable

2

OOTBOARD ASS'Y - Call your local BRP dealership

705202081

Unavailable

3

Battery Support Base

705201942

$32.99

4

Rear Support, Black

705203842

Unavailable

5

Heat Shield

705202394

$17.49

6

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.49

7

Hex. Flange Elastic Nut M8

233281414

$1.31

8

Hex. Flange Screw M8 X 45

207684544

$3.57

9

Hex. Elastic Flange Nut M8

233281416

$1.43

10

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.49

11

FLAT WASHER - Call your local BRP dealership

250200073

Unavailable

12

Torx Screw M4 X 8

250000127

$1.06

13

Elastic Stop Nut M4

232541484

$0.70

14

TRAILER HOOK KIT - Call your local BRP dealership

715000286

Unavailable

15

Hex. Flange Screw M10 X 25

207602544

$1.52

16

Hex. Flange Elastic Nut M10

233201436

$2.00

17

SUPPORT PLATE, BLACK - Call your local BRP dealership

705202402

Unavailable

18

REAR FOOTREST - Call your local BRP dealership

705201993

Unavailable

21

LOCK SUPPORT - Call your local BRP dealership | Europe

705201707

Unavailable

22

Socket Head Screw M5 X 10

205951046

$2.31

23

Pop Rivet 3/16"

390402400

$0.28

24

Padlock with Key

707000666

$23.10
