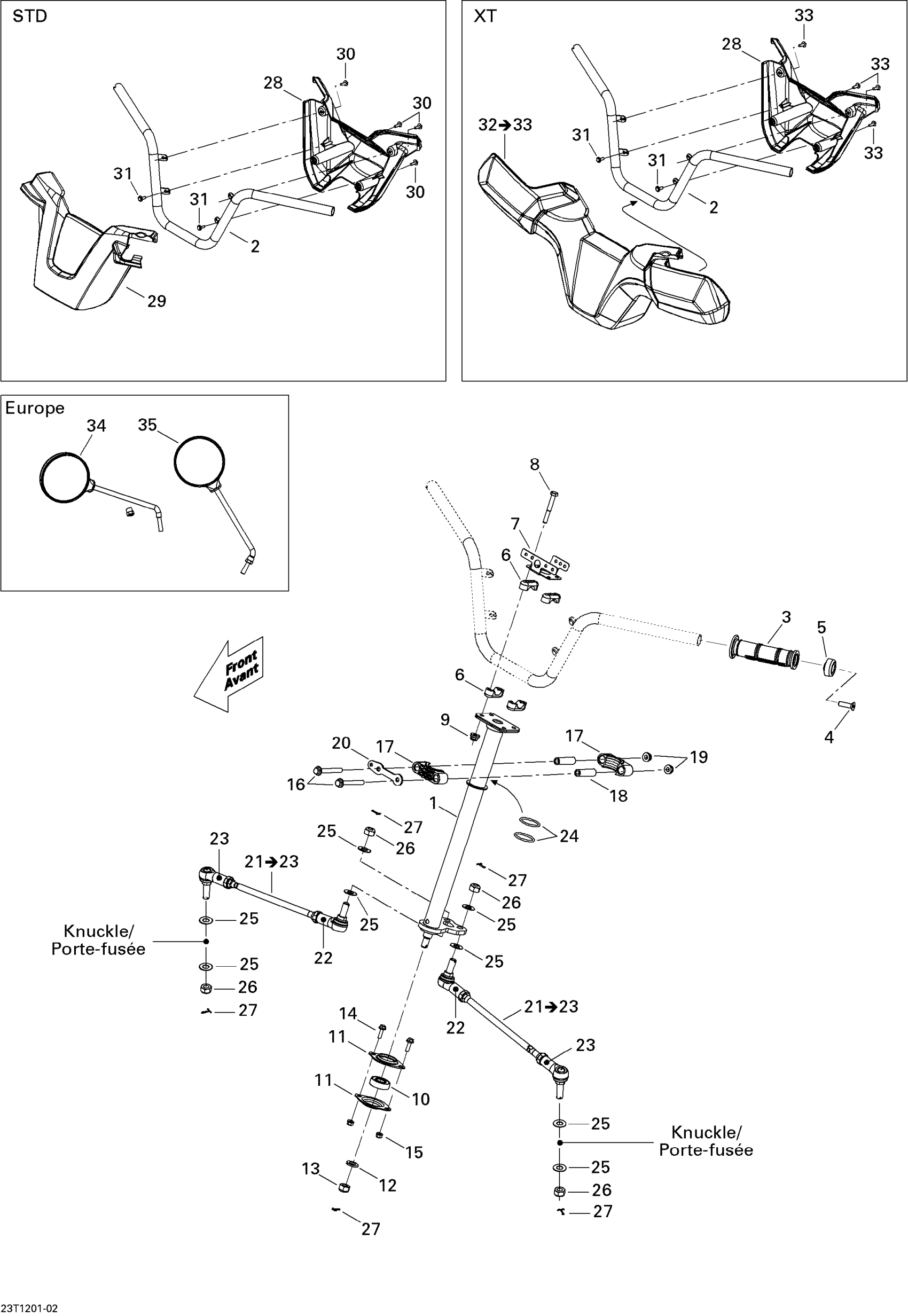

Can-Am Outlander STD, XT, 400 EFI, 2012 Steering Diagram

#

Description
Price

1

Main Tube

709401056

$113.40

2

Steering | STD

709401237

$58.93

3

Handle Grip

709400493

$13.82

4

SOCKET HEAD SCREW, M8 - Call your local BRP dealership

205883046

Unavailable

5

END PIECE - Call your local BRP dealership

709400868

Unavailable

6

Steering Support

709400919

$20.12

7

Connector Bracket

709400586

Unavailable

8

Hex. Screw M8 X 60

207086046

$2.64

9

Hex. Elastic Flange Nut M8

233281416

$1.43

10

Ball Bearing

709400439

$17.88

11

FLANGE, BEARING - Call your local BRP dealership

709400152

Unavailable

12

Flat Washer 12 mm

234021410

$0.66

13

Hex. Flange Elastic Nut M12

250000047

$1.79

14

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.00

15

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

16

Hex. Flange Screw M8 X 70

207687044

$7.01

17

Half Bushing

709400471

$13.22

18

BUSHING - Call your local BRP dealership

709400072

Unavailable

19

Hex. Flange Elastic Nut M8

233281414

$1.31

20

STOPPER PLATE - Call your local BRP dealership

709400053

Unavailable

21

Tie Rod Ass'y | Includes 21 to 23

709400485

Unavailable

22

LH Ball Joint

709402303

$34.30

23

Ball Joint, RH Threads

709400487

$49.22

24

O-Ring

293300068

$6.07

25

Hardened Washer

706200281

$2.69

26

Nut M12

250100099

$1.88

27

Cotter Pin

211400013

$0.31

28

BLACK REAR STEERING COVER - Call your local BRP dealership

709400313

Unavailable

29

BLACK FRONT STEERING COVER - Call your local BRP dealership | STD

709400386

Unavailable

30

Torx Screw K50 X 16

250000720

$1.60

31

Hex. Plastic Screw M4.8 X 16

243141630

$2.00

32

HANDLE GUARD, XT - Call your local BRP dealership | Includes 38 to 39 / XT

703100217

Unavailable

33

Torx Screw K50 X 16

250000720

$1.60

34

LH Mirror | Europe

709400406

$33.55

35

RH Mirror | Europe

709400407

$44.75
