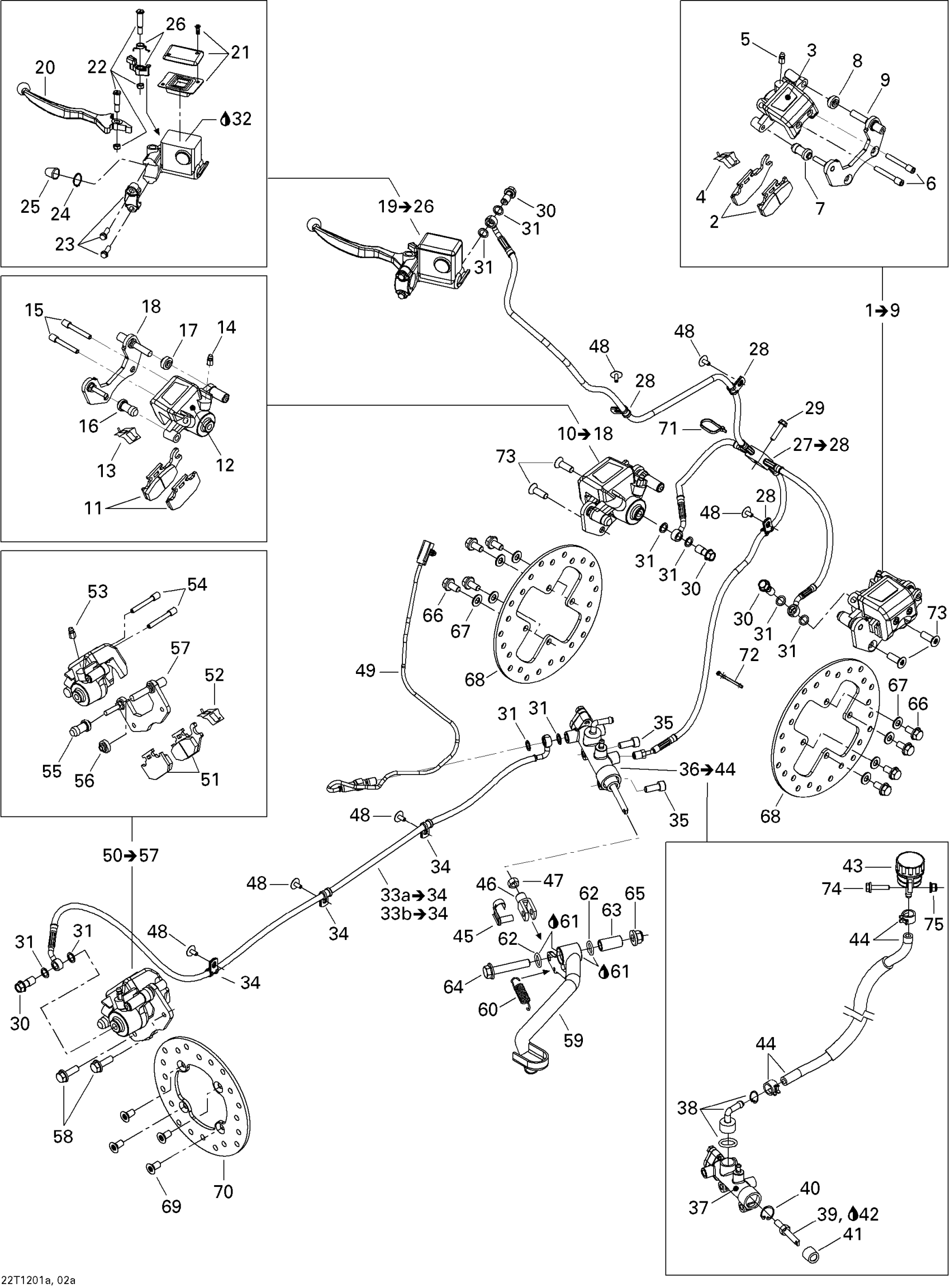

Can-Am Outlander STD, XT, 400 EFI, 2012 Hydraulic Brakes Diagram

#

Description
Price

1

RH Caliper | Includes 1 to 9

705600575

Unavailable

2

Brake Pad Kit

705600349

$49.97

3

Piston Set

705600078

$36.89

4

Spring

705600079

$14.37

5

Bleeding Screw

705600080

$15.22

6

Pin Set (2)

705600081

$19.20

7

Compression Boot

705600082

$10.14

8

Compression Boot

705600083

$10.14

9

Not Available As Spare Part - Friction Washer

Unavailable

10

LH Caliper | Includes 10 to 18

705600576

$210.74

11

Brake Pad Kit

705600350

$49.97

12

Piston Set

705600078

$36.89

13

Spring

705600079

$14.37

14

Bleeding Screw

705600080

$15.22

15

Pin Set (2)

705600081

$19.20

16

Compression Boot

705600082

$10.14

17

Compression Boot

705600083

$10.14

18

Not Available As Spare Part - Friction Washer

Unavailable

19

Front Master Cylinder | Includes 19 to 26

705600844

$212.28

20

Lever Arm

705600243

$50.74

21

Cap Set

705600084

$23.05

22

Brake Lever Bolt Kit

705600246

$14.75

23

BRACKET KIT - Call your local BRP dealership

705600087

Unavailable

24

CIRCLIP - Call your local BRP dealership

705600088

Unavailable

25

COMPRESSION BOOT - Call your local BRP dealership

705600089

$9.74

26

PARKING KIT, BRAKE LEVER LOCK - Call your local BRP dealership

705600477

Unavailable

27

Front Hose | Includes 28 to 29

705600925

$166.12

28

Clamp

293650256

$4.36

29

Hexagonal Head Screw

210262050

$1.74

30

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.91

31

Copper Washer

705601628

$4.34

32

HYDRAULIC OIL - Call your local BRP dealership

293600131

Unavailable

33a

Rear Hose | Includes 34 to 35

705600929

$87.66

33b

Not Available As Spare Parts

XXX

Unavailable

34

Clamp

293650256

$4.36

35

Socket Head Screw M8 X 20, Scotch Grip

250000136

$3.06

36

Master Cylinder | Includes 36 to 44, STD Model

705600751

$212.28

37

Piston Set

705600255

Unavailable

38

PUSHER BRACKET, HOSE CONNECTOR - Call your local BRP dealership

705600064

Unavailable

39

Not Available As Spare Part - Friction Washer

Unavailable

40

Circlip

705600068

Unavailable

41

Compression Boot

705600090

Unavailable

42

Not Available As Spare Part - Friction Washer

Unavailable

43

Oil Tank, Brake Fluid Reservoir

705600182

$36.89

44

OIL HOUSING HOSE - Call your local BRP dealership

705600754

$66.12

45

Pin Kit

219702305

$26.62

46

Yoke

705600100

Unavailable

47

Hex. Nut M8

232081414

$0.60

48

Pop Rivet 3/16”

390910000

$0.48

48

Pop Rivet 3/16”

390910000

$0.48

49

Brake Switch

705600798

$50.74

50

Rear Caliper | Includes 48 to 56

705600577

$210.74

51

LH Brake Pad Kit

705600398

$49.97

52

Spring

705600079

$14.37

53

Bleeding Screw

705600080

$15.22

54

Pin Set (2)

705600081

$19.20

55

Compression Boot

705600082

$10.14

56

Compression Boot

705600083

$10.14

57

Not Available As Spare Part - Friction Washer

Unavailable

58

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.68

59

BRAKE PEDAL, BLACK - Call your local BRP dealership

705601154

$56.89

60

Brake Pedal Spring

705600792

$9.22

61

Synthetic Grease, 400 G

293550010

Unavailable

62

O-Ring

293300144

$3.98

63

Inner Spacer

705600815

$10.98

64

Hex. Flange Screw M10 X 55

207605544

$2.78

65

Hex. Flange Elastic Nut M10

233201414

$1.26

66

Hex. Flange Screw M8 X 16, Scotch Grip

207581646

$1.74

67

Conical Spring Washer M8

234281474

$1.25

68

Disk Brake

705600603

$56.89

69

Torx Screw M8 X 16, Scotch Grip

235381646

$2.09

70

Disk Brake

705600604

$56.89

71

Tie-Rap 180 mm

414115200

$0.09

72

Tie-Rap 180 mm

414115200

$0.09

73

Torx Screw M8 X 25, Scotch Grip

250000143

$1.77

74

Hex. Flange Screw M6 X 25

207662544

$0.53

75

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11
