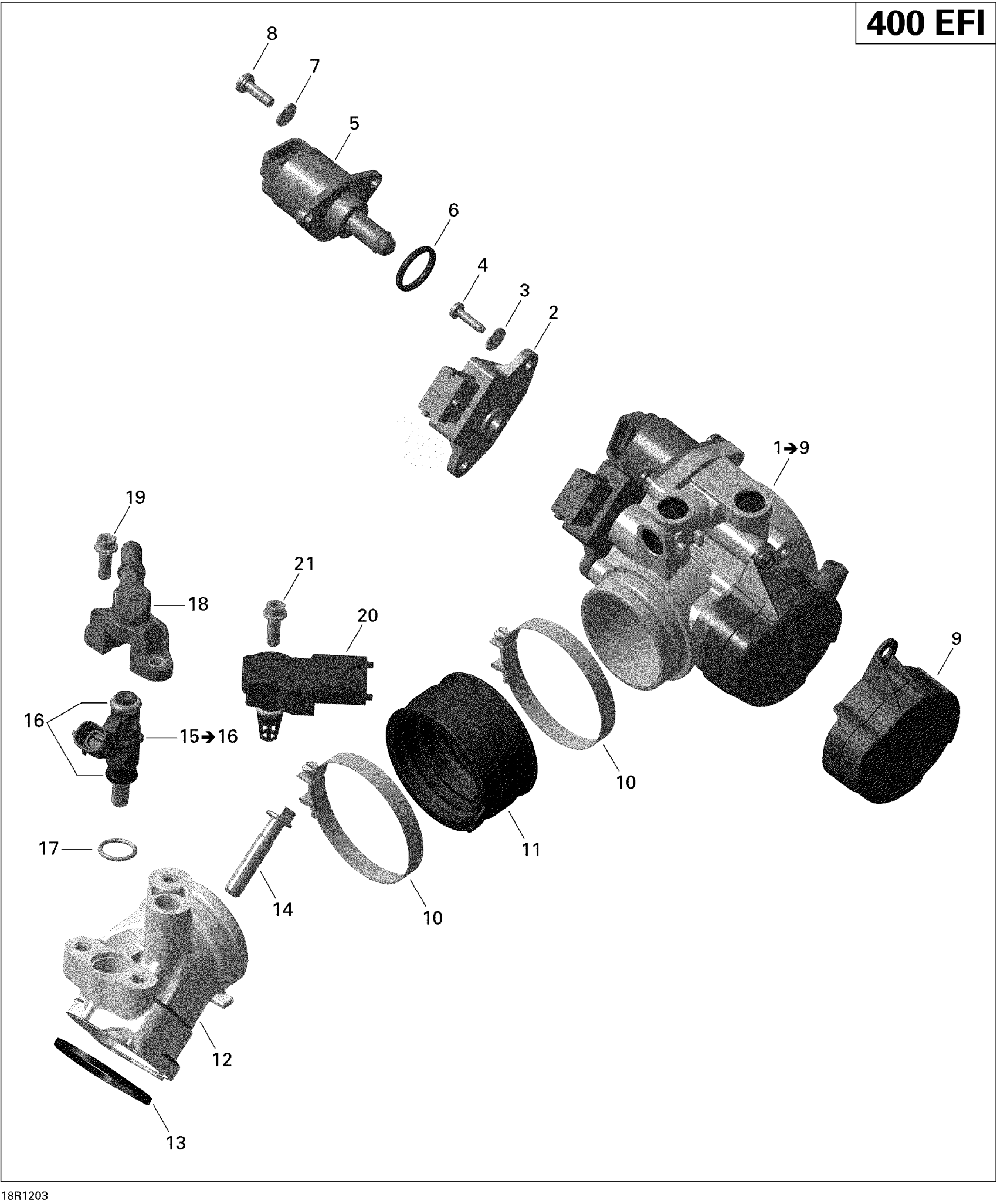

Can-Am Outlander STD, XT, 400 EFI, 2012 Air Intake Manifold And Throttle Body Diagram

Description

Price

Throttle Body Ass'y | Includes 8 to 16

420685326

$659.67

Position Sensor

420866120

$89.52

Flat Washer 4 mm, Stainless

234042600

$1.06

Phillips Screw M4 X 16

208641660

$0.85

Idle Air Control Valve

420665941

$169.37

O-Ring

420631780

$4.15

Snap Ring

420845710

$3.88

Binding Head Screw M5 X 16

420440911

$13.18

Cover Kit

420281540

$19.37

Clamp

420251480

$13.18

Intake Adaptor

420267480

$14.90

ELBOW INTAKE ADAPTOR - Call your local BRP dealership

420267525

Unavailable

Gasket

420630642

$5.06

ALLEN SCREW M8 X 40 - Call your local BRP dealership

420440482

Unavailable

Injection Valve

420874402

$176.09

O-Ring

420631220

$13.18

O-Ring

420631296

$0.72

Fuel Rail

420874901

$22.36

Torx Flange Screw M6 X 16

420641048

$2.82

Pressure And Temperature Sensor

707000995

$81.31

Torx Flange Screw M6 X 16

420641048

$2.82
