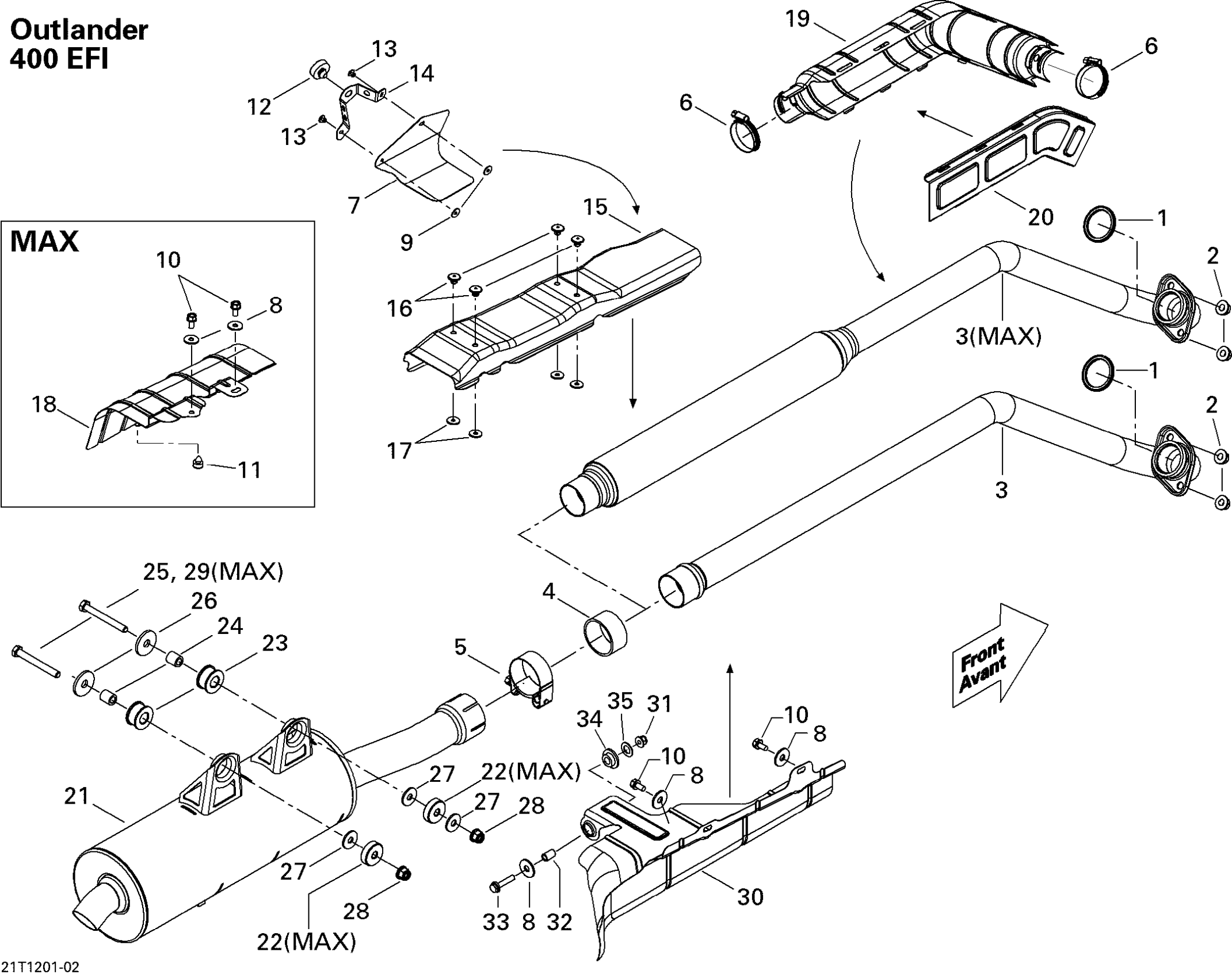

Can-Am Outlander STD, XT, 400 EFI, 2012 Exhaust System Diagram

#

Description
Price

1

Gasket

707600317

$10.52

2

Hex. Flange Nut M8

233081416

$1.63

3

PIPE_EXHAUST WELD - Call your local BRP dealership

707600453

$183.82

4

Pipe Gasket

707600430

$18.43

5

Norma Gear Clamp

293650177

$9.29

6

Norma Gear Clamp

293650098

$4.28

7

HEAT SHIELD - Call your local BRP dealership

707600618

$13.83

8

Flat Washer

250200082

$0.35

9

WASHER - Call your local BRP dealership

391301000

$0.65

10

Hex. Flange Screw M6 X 12

210261250

$1.56

11

Not Available As Spare Parts

XXX

Unavailable

12

Rubber Stopper

708000506

$6.15

13

RIVET_POP 1/8 X ,375 - Call your local BRP dealership

293150122

$0.65

14

Panel Support

707600581

Unavailable

15

HEAT SHIELD - Call your local BRP dealership

707600700

Unavailable

16

Pop Rivet 3/16"

390406500

$0.70

17

Washer

517124300

$0.16

18

Not Available As Spare Parts

XXX

Unavailable

19

Heat Base Shield

707600462

$23.05

20

HEAT SHIELD COVER - Call your local BRP dealership

707600457

$10.74

21

Muffler

707600574

$509.97

21

MUFFLER_EXHAUST - Call your local BRP dealership | Europe

707600597

Unavailable

22

Not Available As Spare Parts

XXX

Unavailable

23

Vibration Damper

707603323

$11.98

24

Bushing

293900106

$4.42

25

Hex. Flange Screw M8 X 70

207687044

$6.11

26

Washer

503032900

$3.20

27

Flat Washer 8 mm

234082410

$1.11

28

Hex. Flange Elastic Nut M8

233281414

$1.14

29

Not Available As Spare Parts

XXX

Unavailable

30

Protector

707600621

Unavailable

31

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

32

Sleeve

293900078

$12.68

33

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

34

Grommet

705003932

$2.75

35

Washer

503175800

$3.26
