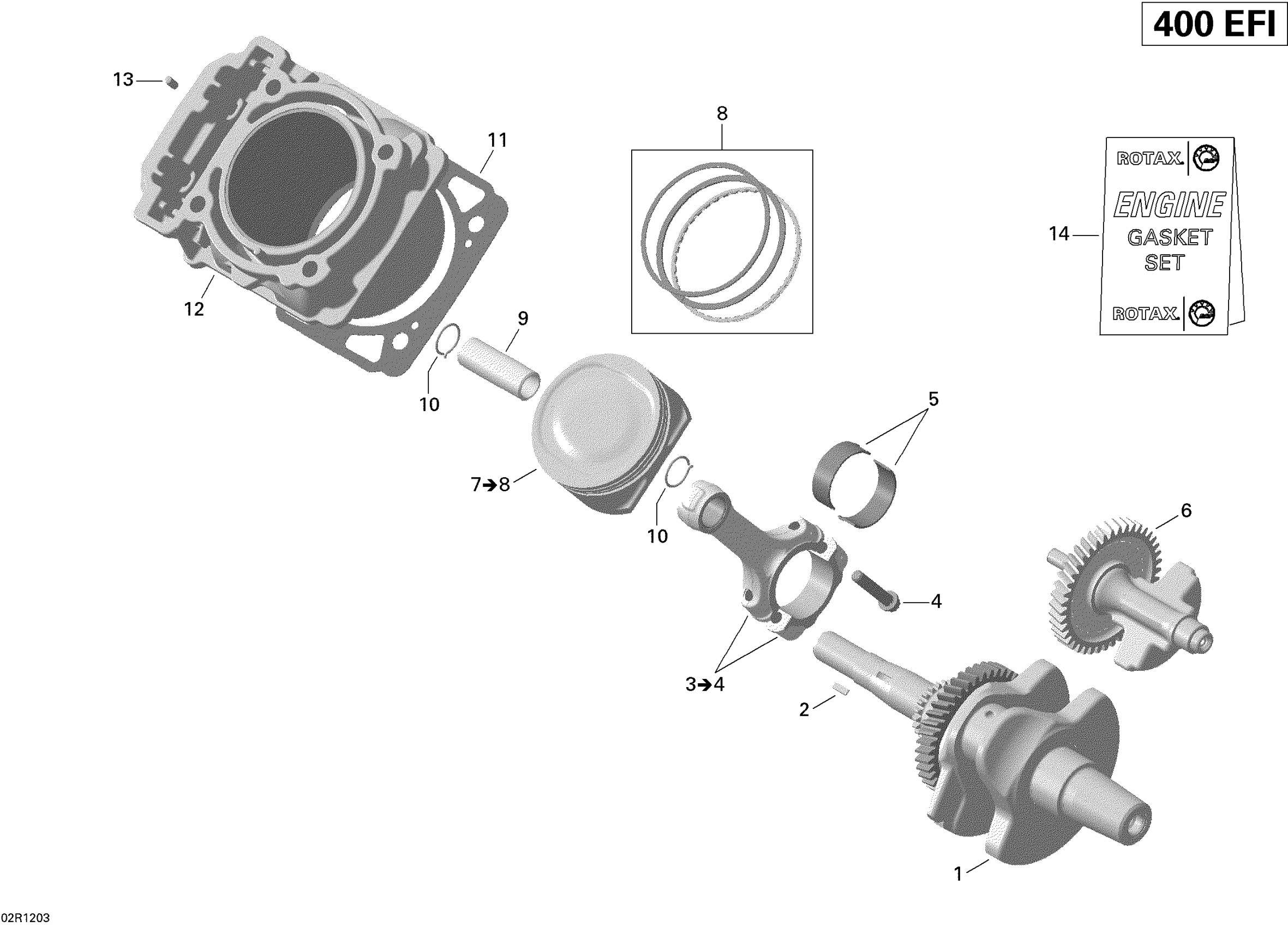

Can-Am Outlander STD, XT, 400 EFI, 2012 Crankshaft And Pistons Diagram

Description

Price

Crankshaft Ass'y

420296671

$679.97

Woodruff Key 4 X 5

420246570

$3.29

Connecting Rod Ass’y | Includes 3 to 4

420217425

$232.64

Connecting Rod Screw M8 X 1

420641645

$13.58

Plain Bearing 40 X 43 X 15

420233980

$26.89

BALANCE SHAFT ASS'Y - Call your local BRP dealership

420620035

Unavailable

Piston Ass'y, 90.958 mm | 400HO / Includes 7 to 8

420685714

$163.34

Piston Ass'y, Oversize, 91.208 mm | Includes 7 to 8

420296776

$163.34

Piston Ring Set | 400HO

420296774

$81.99

Not Available As Spare Part - Friction Washer

Unavailable

Piston Pin

420216270

$26.99

Piston Circlip

420845107

$4.33

Gasket

420630210

$12.42

Cylinder With Sleeve

420413434

$402.97

Drive Pin 5 X 10

420929650

$1.34

Gasket Set

420685129

$383.05
