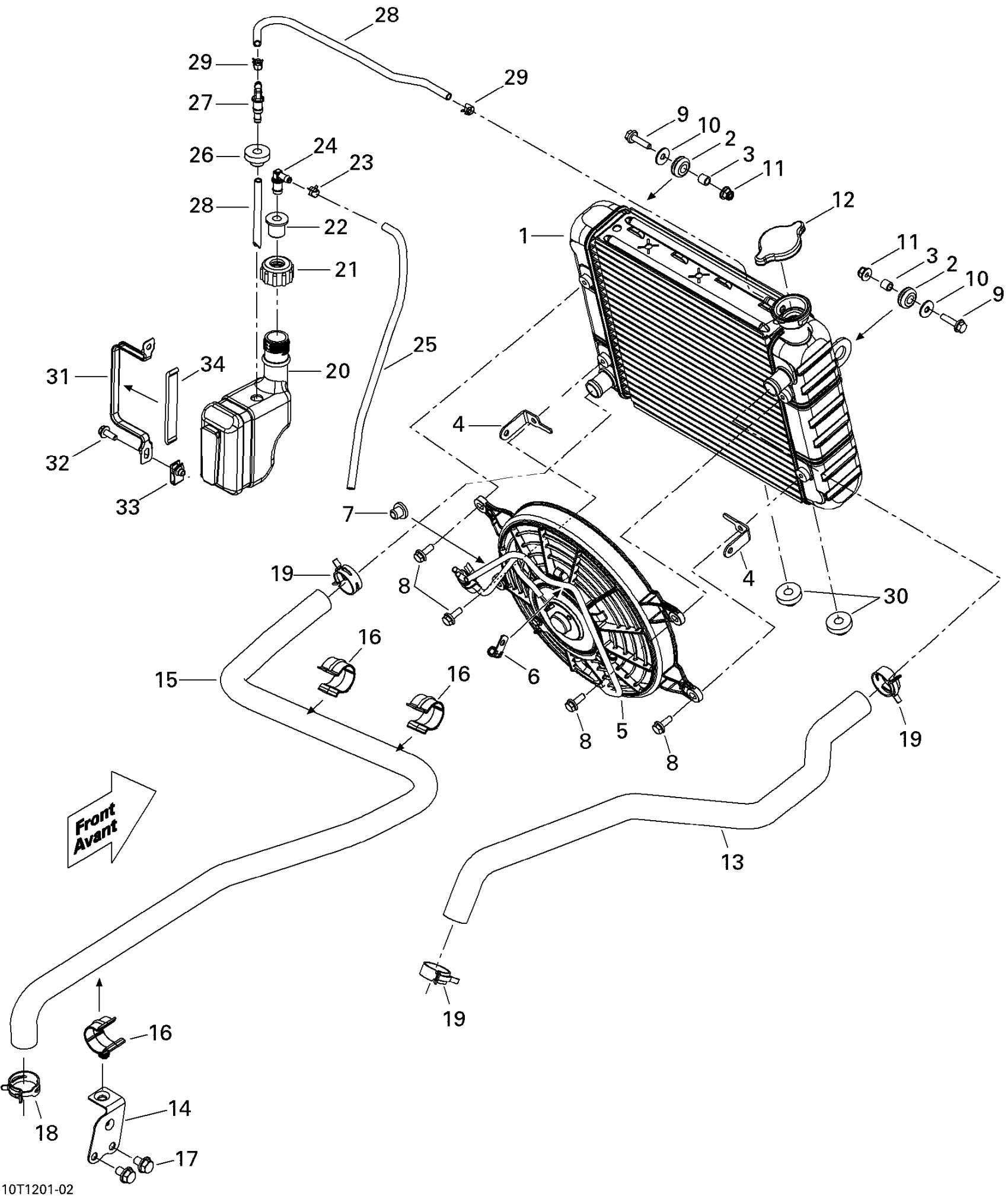

Can-Am Outlander STD, XT, 400 EFI, 2012 Cooling System Diagram

#

Description
Price

1

RADIATOR ASS'Y - Call your local BRP dealership

709200307

Unavailable

2

Grommet

709000582

$4.25

3

Bushing

293900105

$6.07

4

SUPPORT - Call your local BRP dealership

709200284

Unavailable

5

Fan Ass'y

709200371

$199.22

6

Clamp

293650256

$5.00

7

Grommet

293720029

$1.30

8

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

9

Hex. Flange Screw M6 X 25

207662544

$0.61

10

Flat Washer

250200082

$0.40

11

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

12

Radiator Pressure Cap

709200207

$21.61

13

RADIATOR INLET HOSE - Call your local BRP dealership

709200077

Unavailable

14

Hose Support

709200206

$8.24

15

HOSE OUTLET RADIATOR - Call your local BRP dealership

709200198

Unavailable

16

Retainer

275500526

$4.28

17

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

$1.06

18

Norma Spring Clamp

293650108

$3.88

19

Norma Spring Clamp

293650109

$3.88

20

COOLANT TANK - Call your local BRP dealership

709200099

Unavailable

21

Cap

709200586

$10.12

22

Grommet

293830136

$8.04

23

Spring Clamp

414554800

$0.81

24

Male Connector

414580700

$3.88

25

Polyurethane Hose 10000Mm Long

219704410

$52.96

26

Grommet

709200285

$8.13

27

Elbow Male Connector

414580600

$4.01

28

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$114.15

29

Spring Clamp

414554800

$0.81

30

Grommet

709200285

$8.13

31

TANK ANCHOR - Call your local BRP dealership

709200080

Unavailable

32

Hex. Flange Screw M6 X 16

210261650

$1.40

33

Panel Nut M6 X 1.0

250100198

$1.99

34

Gasket, Neoprene 2000Mm Long

219704476

$14.51
