10- Electrical Harness Europe

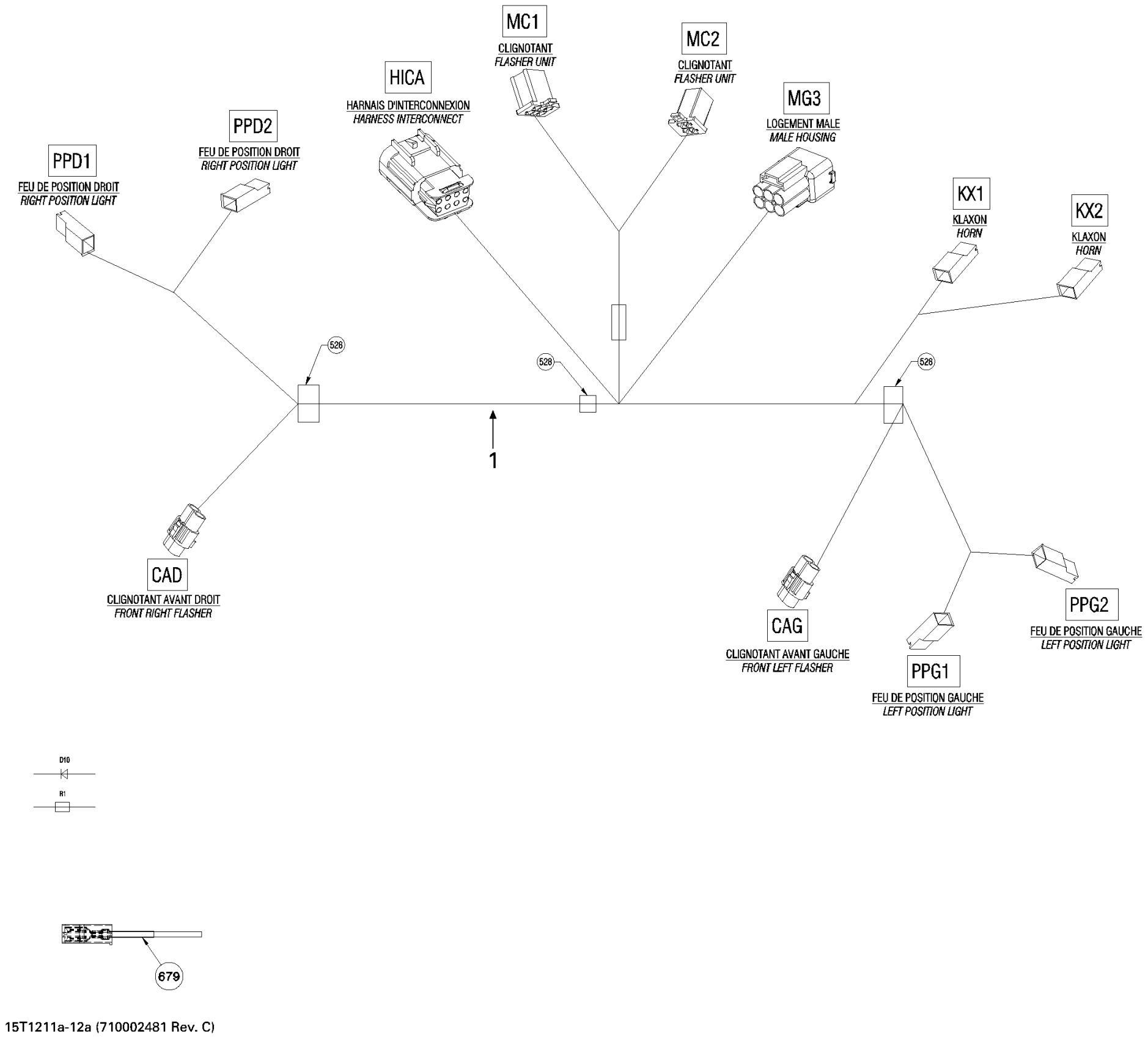

Can-Am Outlander STD, XT, 1000 EFI, 2012 10- Electrical Harness Europe Diagram
#
1
Harness Ass'y | Includes 1 to R1, Europe
710002481
Unavailable
528
Not Available As Spare Part - Friction Washer
Unavailable
765
Not Available As Spare Part - Friction Washer
Unavailable
CAD
Female Terminal
409012100
Unavailable
CAD
Seal
409012300
Unavailable
CAG
Female Terminal
409012100
Unavailable
CAG
Seal
409012300
Unavailable
D10
Diode
409012700
Unavailable
HICA
Clip
710001038
Unavailable
HICA
Seal
710001233
Unavailable
HICA
Cap
710001225
Unavailable
HICA
Terminal
710001224
Unavailable
HICA
Housing
710001927
Unavailable
KX1
Female Terminal
409010100
Unavailable
KX1
Female Terminal Housing, 1 Circuit
409010400
Unavailable
KX1
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
KX1
SHRINK TUBING 500MM LONG - Call your local BRP dealership
219704448
Unavailable
KX2
Female Terminal
409010100
Unavailable
KX2
Female Terminal Housing, 1 Circuit
409010400
Unavailable
KX2
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
KX2
SHRINK TUBING 500MM LONG - Call your local BRP dealership
219704448
Unavailable
MC1
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
MC1
Housing
710002314
Unavailable
MC1
Terminal
710002315
Unavailable
MC2
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
MC2
Housing
710002313
Unavailable
MC2
Terminal
710002315
Unavailable
MG3
Male Terminal
409011300
Unavailable
MG3
Wire Seal
710000402
Unavailable
MG3
Male Housing Terminal, 6 Circuits
710001446
Unavailable
PPD1
Female Terminal
409010100
Unavailable
PPD1
Female Terminal Housing, 1 Circuit
409010400
Unavailable
PPD1
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
PPD1
SHRINK TUBING 500MM LONG - Call your local BRP dealership
219704448
Unavailable
PPD2
Female Terminal
409010100
Unavailable
PPD2
Female Terminal Housing, 1 Circuit
409010400
Unavailable
PPD2
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
PPD2
SHRINK TUBING 500MM LONG - Call your local BRP dealership
219704448
Unavailable
PPG1
Female Terminal
409010100
Unavailable
PPG1
Female Terminal Housing, 1 Circuit
409010400
Unavailable
PPG1
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
PPG1
SHRINK TUBING 500MM LONG - Call your local BRP dealership
219704448
Unavailable
PPG2
Female Terminal
409010100
Unavailable
PPG2
Female Terminal Housing, 1 Circuit
409010400
Unavailable
PPG2
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
PPG2
SHRINK TUBING 500MM LONG - Call your local BRP dealership
219704448
Unavailable
R1
Resistor
710002674
Unavailable
