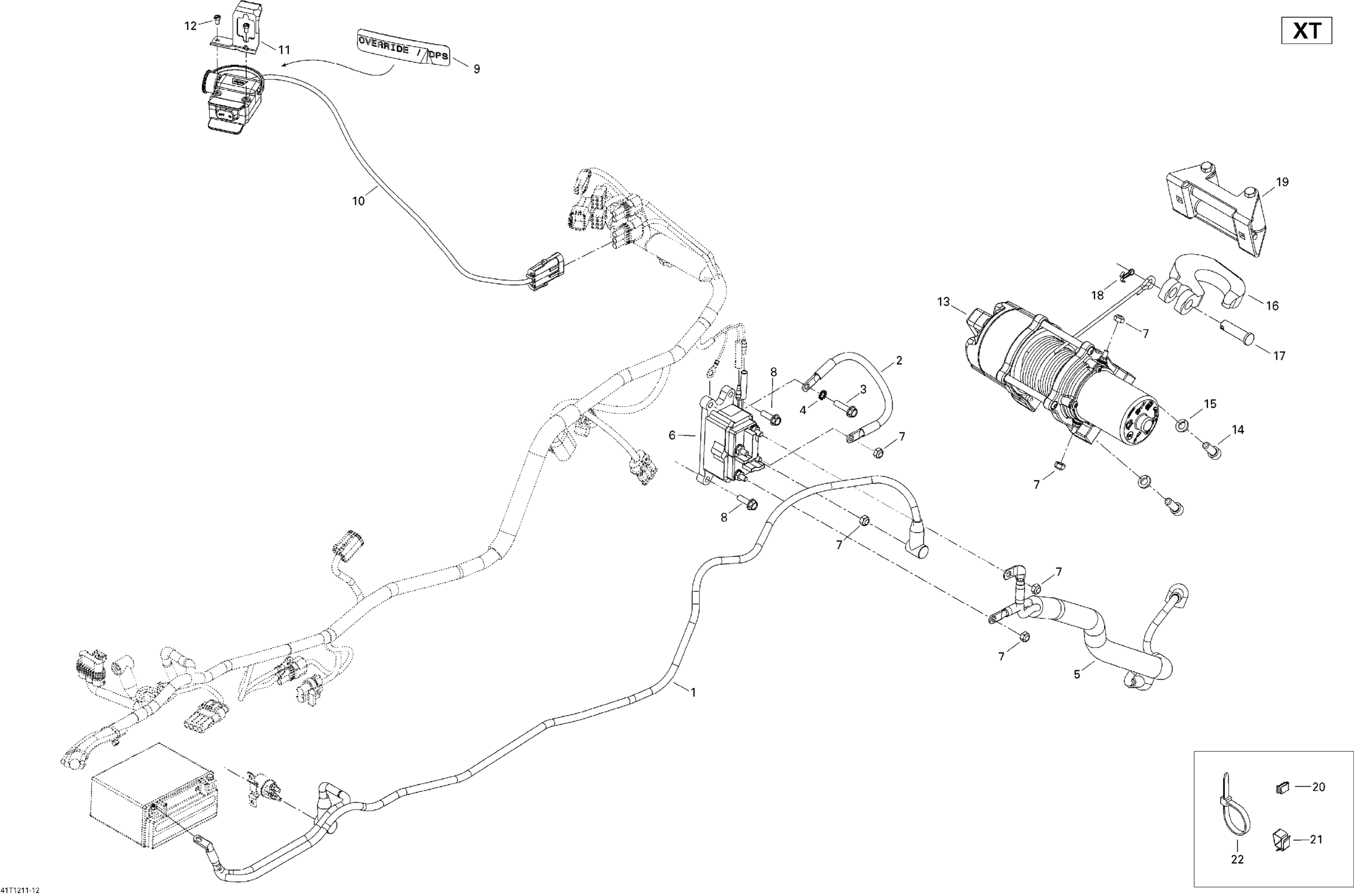

Can-Am Outlander STD, XT, 1000 EFI, 2012 Electrical Accessories XT Diagram

#

Description
Price

1

Connector Ass'y

710004375

$32.99

2

CABLE_NEGATIVE - Call your local BRP dealership

710003003

Unavailable

3

Hex. Flange Forming Screw M6 X 25

210262550

$1.90

4

Lock Washer Serrated M6

250200041

$1.15

5

Winch Cables

710004378

$51.99

6

Winch Solenoid | XT Models

710001000

$121.99

7

Elastic Stop Nut M6

232561414

$0.55

8

Hexagonal Head Screw

210262050

$2.11

9

DPS LABEL - Call your local BRP dealership | Europe

704901835

Unavailable

10

Winch Switch | XT, XTP, XMR, LTD,

710002724

$164.49

11

Winch Switch Support | XT, XTP, XMR, LTD,

710002631

$10.27

12

Hex. Cap Screw 6-32 X 1/4" | XT Models

250000153

$1.69

13

WINCH - Call your local BRP dealership | Europe

705008546

Unavailable

14

Socket Head Screw M8 X 20

205082044

$1.15

15

Lock Washer 8 mm

234181401

$0.92

16

Winch Hook Kit

705014949

$24.99

17

Clevis Pin

250400021

$13.18

18

Cotter Pin

250400022

$9.69

19

Fairlead_Roller Kit

715007699

$83.99

20

Clip

710000992

$4.29

21

Clip

414227300

$1.67

22

Tie-Rap 180 mm

414115200

$0.11

22

Tie Wrap 368 mm

293750008

$1.04

22

Tie Wrap 94 mm | 4X4

293750001

$1.03

22

Tie-rap 627 mm

293750041

$0.93
