Description

Price

1

FRAME, BLACK - Call your local BRP dealership

705203598

Unavailable

2

SUPPORT KIT - Call your local BRP dealership

703500852

Unavailable

3

Carriage Bolt, M8 X 20

207782044

Unavailable

4

Hex. Flange Elastic Nut M8

233281414

Unavailable

5

Rear Pillar

705210818

Unavailable

6

Hex. Flange Screw M10 X 25

207602546

Unavailable

7

Hex. Flange Elastic Nut M10

233201436

Unavailable

8

WELDED EXTENSION, BLACK - Call your local BRP dealership

705202291

Unavailable

9

Hex. Flange Screw M10 X 25

207602546

Unavailable

10

Hex. Flange Elastic Nut M10

233201436

Unavailable

11

Hex. Flange Elastic Nut M8

233281414

Unavailable

12

Trailer Hitch

715005186

Unavailable

13

Insert Half Hex Body M8 x 1.25

293450307

Unavailable

14

Threaded Insert M6 X 1.0

250100242

Unavailable

15

Rear Support

705203301

Unavailable

16

Hex. Flange Screw M8 X 20

207682046

Unavailable

17

Hex. Elastic Flange Nut M8

233281416

Unavailable

18

FRONT LINK - Call your local BRP dealership

705202900

Unavailable

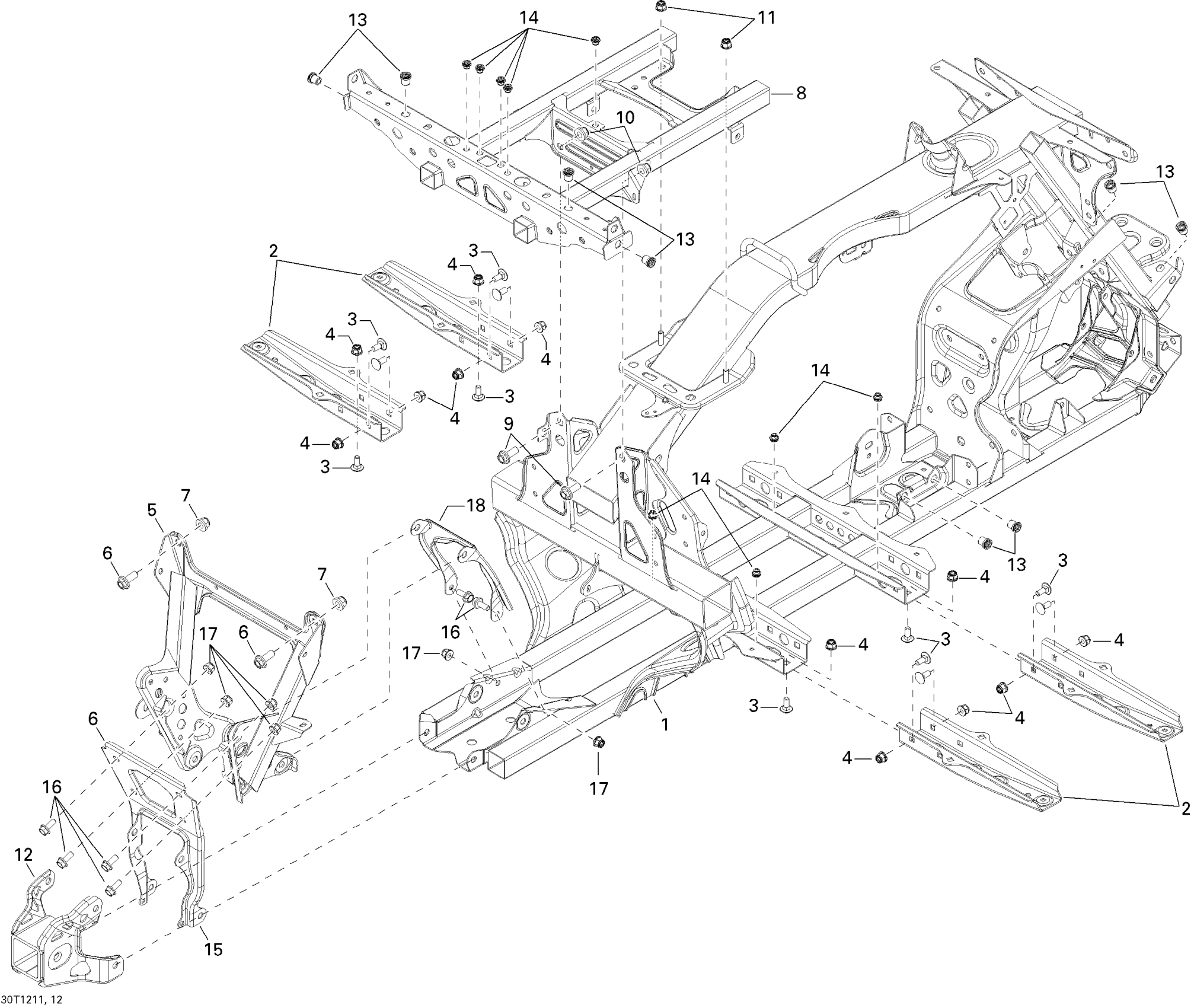

Can-Am Outlander STD, XT, 1000 EFI, 2012 09- Frame Diagram

FRAME, BLACK - Call your local BRP dealership

SUPPORT KIT - Call your local BRP dealership

Carriage Bolt, M8 X 20

Hex. Flange Elastic Nut M8

Rear Pillar

Hex. Flange Screw M10 X 25

Hex. Flange Elastic Nut M10

WELDED EXTENSION, BLACK - Call your local BRP dealership

Hex. Flange Screw M10 X 25

Hex. Flange Elastic Nut M10

Hex. Flange Elastic Nut M8

Trailer Hitch

Insert Half Hex Body M8 x 1.25

Threaded Insert M6 X 1.0

Rear Support

Hex. Flange Screw M8 X 20

Hex. Elastic Flange Nut M8

FRONT LINK - Call your local BRP dealership
