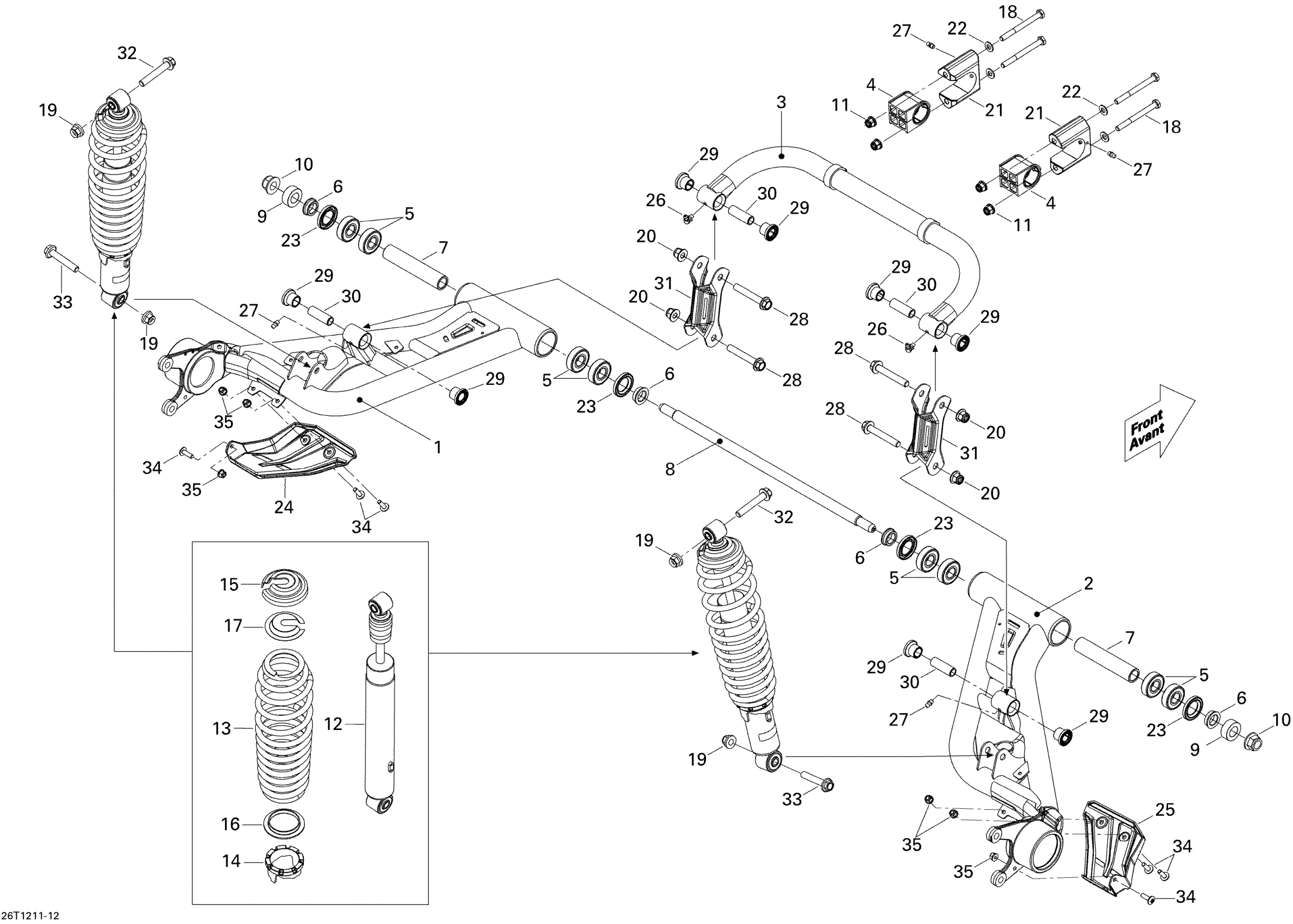

Can-Am Outlander STD, XT, 1000 EFI, 2012 Rear Suspension Diagram

#

Description
Price

1

Black LH Swing Arm

706001860

$296.99

2

Black RH Swing Arm

706001861

$296.99

3

Swaybar

706000988

$126.99

4

Stabilizer Bar Bushing

706004640

$8.89

5

Ball Bearing

293350145

$13.75

6

Spacer

706001282

$12.99

7

Spacer

706002259

$28.99

8

Axial Pivot

706001023

Unavailable

9

Flat Washer M17

250200112

$7.99

10

HEX. ELASTIC FLANGED NUT M14 - Call your local BRP dealership

233271416

Unavailable

11

Hex. Flange Elastic Nut M8

233281434

$2.11

12

Rear Shock

706000958

$185.49

13

Black Spring

706000963

$103.99

14

Adjustment Cam

505073625

$12.99

15

Spring Stopper

706200881

$12.99

16

Spring Guide

503187500

$10.49

17

Cap

706200785

$4.69

18

Hex. Screw M8 X 85

250001035

$1.89

19

Hex. Flange Elastic Nut M10

233201436

$2.11

20

Hex. Flange Elastic Nut M10

233201414

$1.58

21

Bushing Holder

706001099

$33.99

22

Flat Washer M8

234081430

$2.11

23

Seal

293200144

$5.09

24

LH PROTECTOR - Call your local BRP dealership

706001009

Unavailable

25

RH PROTECTOR - Call your local BRP dealership

706001010

Unavailable

26

Grease Fitting 90°

293550056

$1.15

27

Grease Fitting

250000315

$5.82

28

Hex. Flange Screw M10 X 65

207606536

$4.44

29

Suspension Arm Bushing Kit | Includes 4

703500875

$16.33

30

Suspension Arm Bushing Kit | Includes 4

703500875

$16.33

31

Sway Bar Linkage

706001020

$13.99

32

Hex. Flange Screw M10 X 6

207606046

$4.12

33

Hex. Flange Screw M10 X 55

207605546

$2.11

34

Torx Screw M6 X 20

250000722

$1.68

35

Hex. Flange Elastic Nut M6

233261494

$1.58
