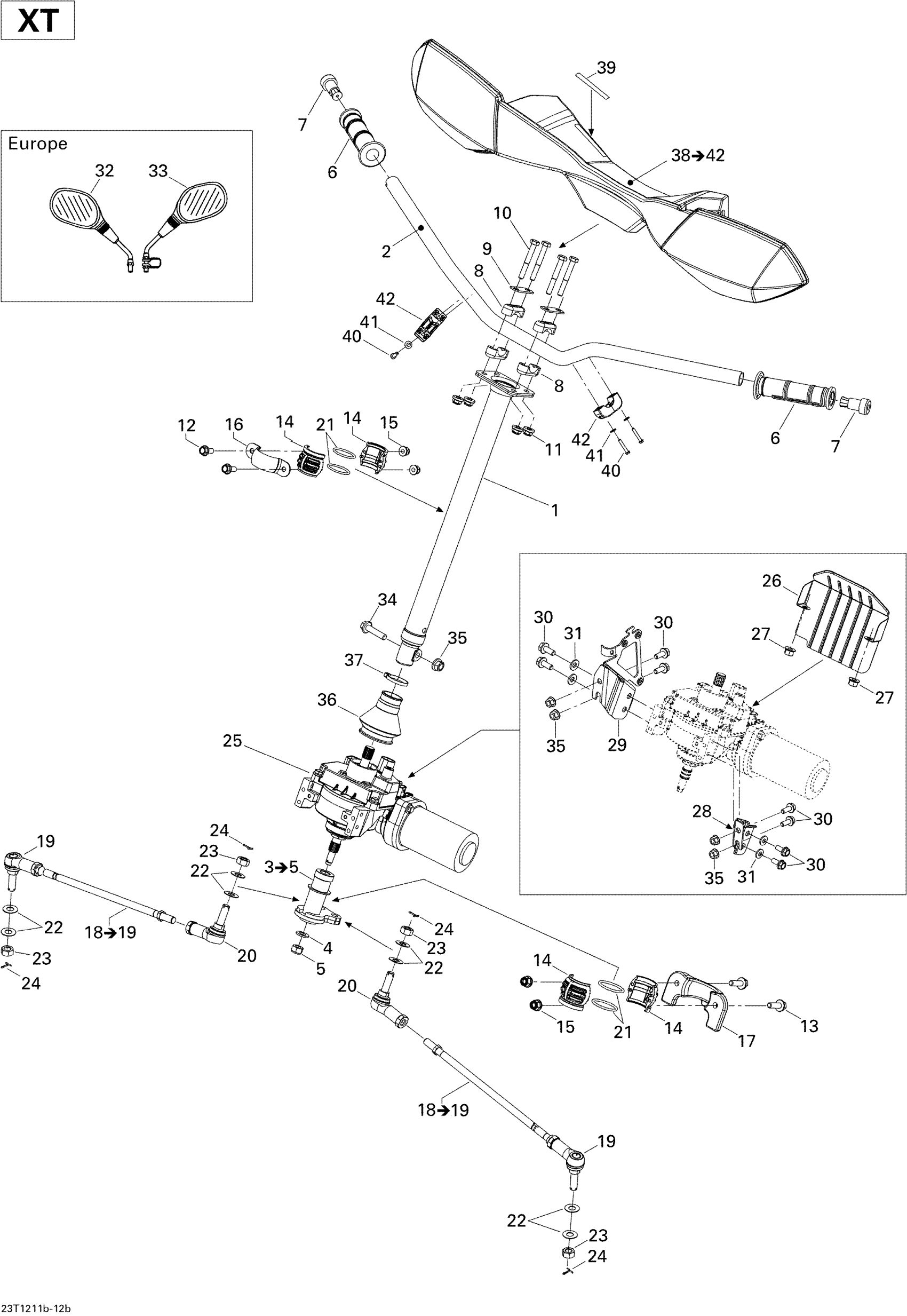

Can-Am Outlander STD, XT, 1000 EFI, 2012 Steering XT Diagram

#

Description
Price

1

Kit Tube-Main.

703501137

$184.99

2

Black, Handle Bar

709401240

$69.99

3

Pitman Kit | Includes 3 to 5

703500785

$159.99

4

Hardened Washer

706200281

$2.85

5

Hex. Flange Elastic Nut M12

250000047

$1.90

6

Handle Grip

709400493

$14.83

7

End Piece

709400449

$8.49

8

Steering Support

709400919

$22.49

9

Stiffner

709400509

$4.69

10

Hex. Screw M8 X 60

207086046

$2.85

11

Hex. Elastic Flange Nut M8

233281416

$1.48

12

Hex. Flange Screw M8 X 20

207682044

$1.15

13

Hex. Flange Screw M8 X 25

207682544

$1.35

14

Spherical Half Bushing

709400783

$7.65

15

Hex. Flange Elastic Nut M8

233281414

$1.47

16

Upper Column Attachment

709400827

$1.09

17

Column Attachment

709401428

$38.99

18

Tie Rod Ass`y | Includes 15 to 17

703501038

$96.49

19

LH Ball Joint

709402303

$36.99

20

RH Ball Joint

709402302

$36.99

21

O-Ring

293300068

$7.65

22

Hardened Washer

706200281

$2.85

23

Nut M12

250100099

$2.09

24

Cotter Pin

211400013

$0.37

25

Power Steering

709401608

$1,010.49

26

HEAT DEFLECTOR - Call your local BRP dealership

709401005

Unavailable

27

Hex. Flange Nut M8

233081416

$1.15

28

Power Steering Module Bracket

709400848

$16.49

29

RH STEERING BRACKET - Call your local BRP dealership

709400994

Unavailable

30

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

31

Conical Spring Washer M8

234281474

$1.48

32

LH Mirror | Europe

709400406

$32.99

33

RH Mirror | Europe

709400407

$47.49

34

Hex. Flange Screw M8 X 35

207683544

$1.69

35

Hex. Flange Nut M8

233081416

$1.15

36

Bellows

709400674

$18.99

37

Tie-Rap 180 mm

414115200

$0.11

38

Handle Guard Ass'y, XT

703100352

$98.49

39

Decal "Dynamic Power Steering"

704905284

$14.49

40

Hex. Flange Screw K40 X 25

241142560

$2.64

41

Flat Washer | XT

211200035

$0.55

42

U-Clamp | XT

517303264

$11.99
