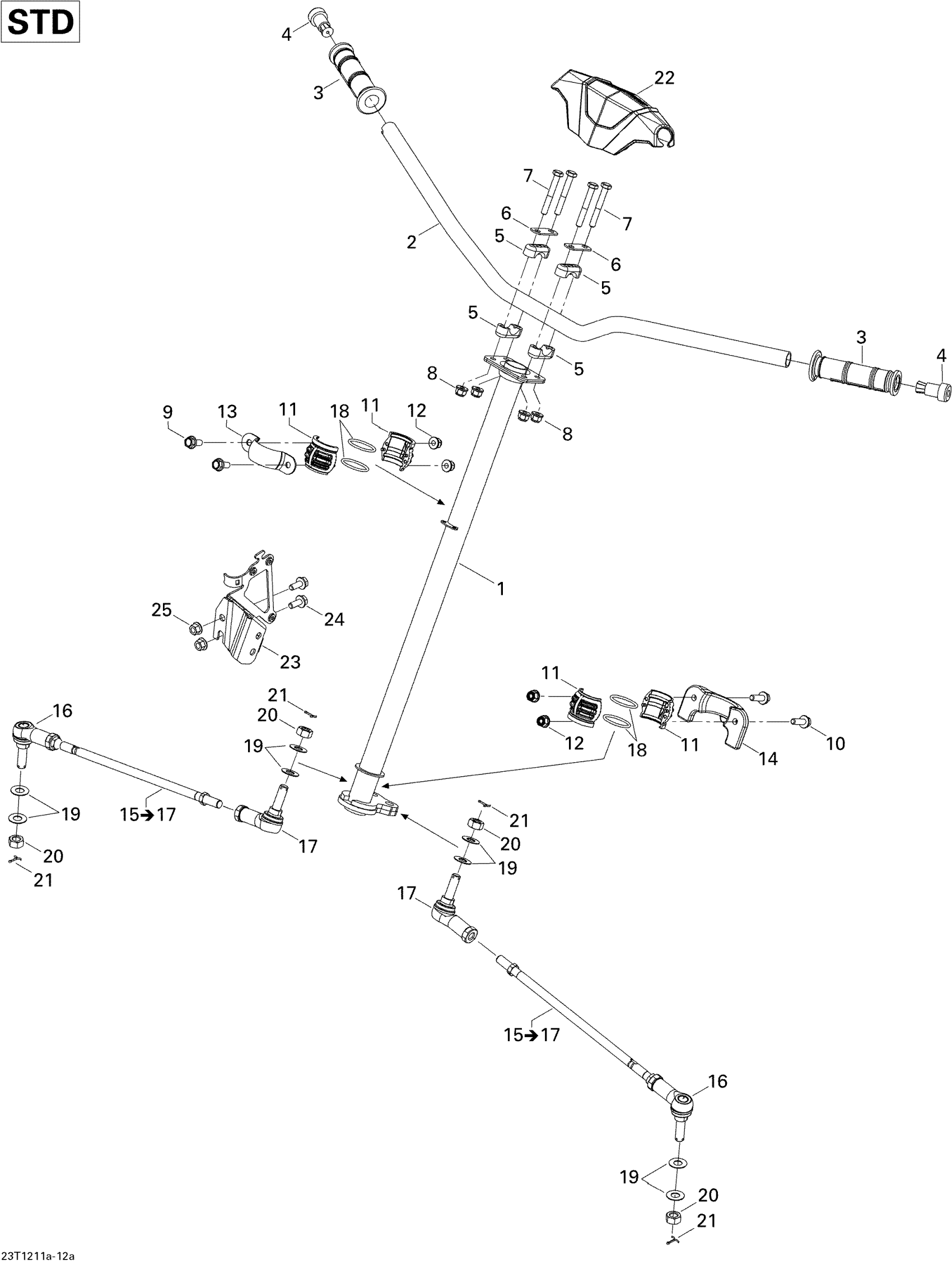

Can-Am Outlander STD, XT, 1000 EFI, 2012 07- Steering STD Diagram

#

Description
Price

1

Main Tube

709401008

Unavailable

2

Black, Handle Bar

709401240

Unavailable

3

Handle Grip

709400493

Unavailable

4

End Piece

709400449

Unavailable

5

Steering Support

709400919

Unavailable

6

Stiffner

709400509

Unavailable

7

Hex. Screw M8 X 60

207086046

Unavailable

8

Hex. Elastic Flange Nut M8

233281416

Unavailable

9

Hex. Flange Screw M8 X 20

207682044

Unavailable

10

Hex. Flange Screw M8 X 25

207682544

Unavailable

11

Spherical Half Bushing

709400783

Unavailable

12

Hex. Flange Elastic Nut M8

233281414

Unavailable

13

Upper Column Attachment

709400827

Unavailable

14

Column Attachment

709401428

Unavailable

15

Tie Rod Ass`y | Includes 15 to 17

703501038

Unavailable

16

LH Ball Joint

709402303

Unavailable

17

RH Ball Joint

709402302

Unavailable

18

O-Ring

293300068

Unavailable

19

Hardened Washer

706200281

Unavailable

20

Nut M12

250100099

Unavailable

21

Cotter Pin

211400013

Unavailable

22

Cover

709400939

Unavailable

23

RH STEERING BRACKET - Call your local BRP dealership

709400994

Unavailable

24

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

Unavailable

25

Hex. Flange Nut M8

233081416

Unavailable
