07- Drive System, Front

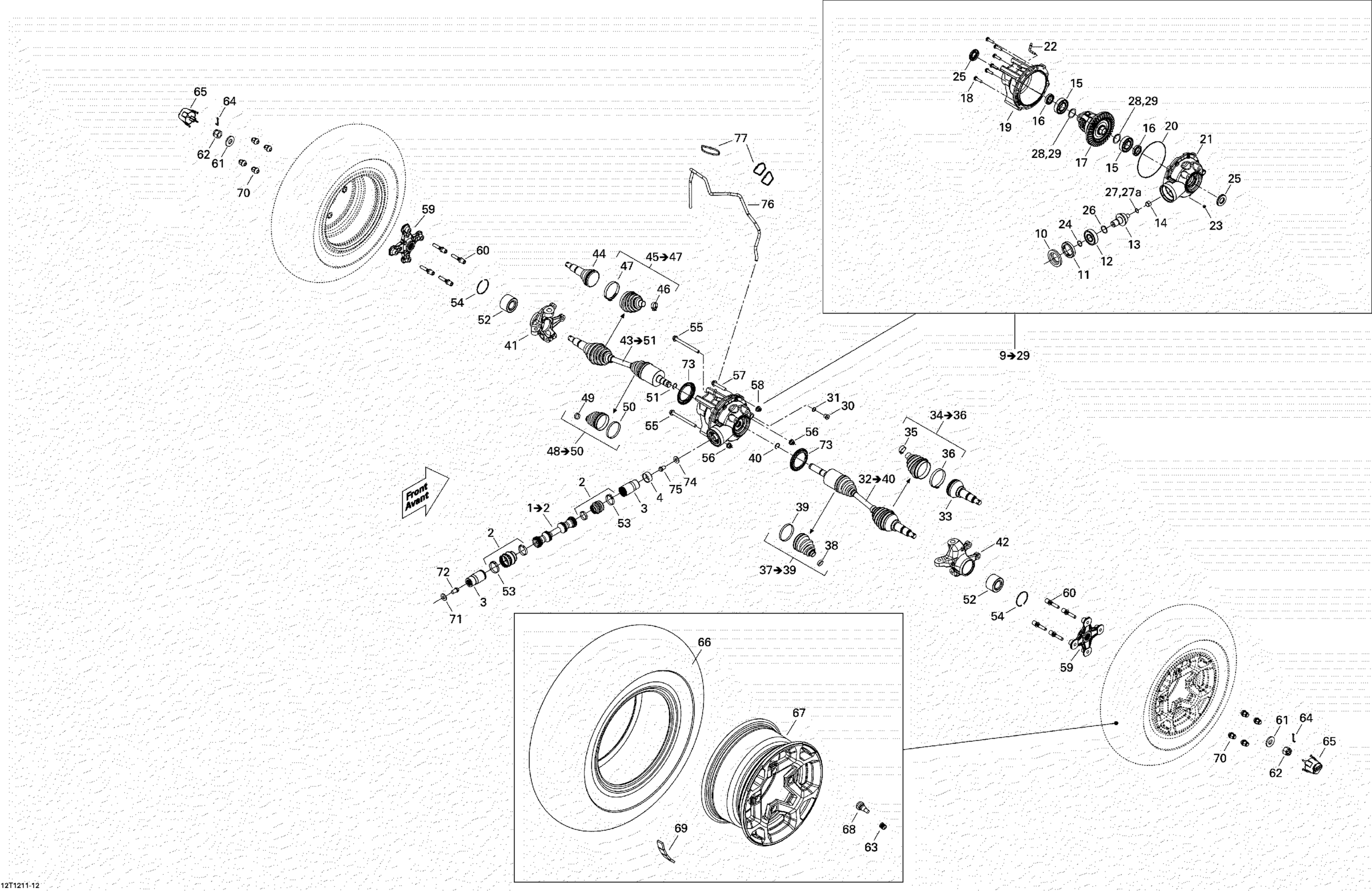

Can-Am Outlander STD, XT, 1000 EFI, 2012 07- Drive System, Front Diagram
#
1
Propeller Shaft | Includes 1 to 2
705400913
Unavailable
2
Rubber Boot Kit
703500794
Unavailable
3
Front Bushing Shaft Kit | 4X4
703500678
Unavailable
4
Wear Ring | 4X4
705400036
Unavailable
5
Rubber Boot
705401093
Unavailable
6
Oetiker Gear Clamp
293650199
Unavailable
9
Front Differential | Includes 8 to 31
703500907
Unavailable
9
Front Differential | XT, XT-P, Includes 9 to 29
703500908
Unavailable
10
Oil Seal | 4X4
705401481
Unavailable
11
Nut | 4X4
705401603
Unavailable
12
Ball Bearing | 4X4
705500260
Unavailable
13
10 TEETH PINION - Call your local BRP dealership
705501588
Unavailable
14
Needle Bearing | 4X4
705500261
Unavailable
15
Ball Bearing | 4X4
705401606
Unavailable
16
Ball Bearing | 4X4
293350044
Unavailable
17
Ens Differentiel*Differential Kit | 4X4
703500871
Unavailable
17
DIFFERENTIAL KIT - Call your local BRP dealership
703500872
Unavailable
18
Screw | 4X4
705401601
Unavailable
19
FRONT COVER - Call your local BRP dealership
705400762
Unavailable
20
Seal | 4X4
705500265
Unavailable
21
FRONT COVER - Call your local BRP dealership
705400761
Unavailable
22
VENT VALVE - Call your local BRP dealership | 4X4
705500893
Unavailable
23
Drain Plug | 4X4
705500894
Unavailable
24
O-Ring | 4X4
705500267
Unavailable
25
Gasket | 4X4
705401618
Unavailable
26
Pinion Gear Shim 1.67 mm
705502061
Unavailable
27
Pinion Gear Shim .022"
705500075
Unavailable
27a
Pinion Gear Shim
705501162
Unavailable
28
Shim | 4X4
705401604
Unavailable
29
Shim | 4X4
705401604
Unavailable
30
Fill Level Plug | 4X4
705500504
Unavailable
31
Copper Washer | 4X4
705500506
Unavailable
32
RH Half Shaft Kit | Includes 32 to 40
703500824
Unavailable
33
CV Joint
705500560
Unavailable
34
Wheel Boot Kit
705400511
Unavailable
35
OETIKER CLAMP 23MM - Call your local BRP dealership
293650192
Unavailable
36
OETIKER CLAMP 70MM - Call your local BRP dealership
293650194
Unavailable
37
Differential Boot Kit
705400512
Unavailable
38
OETIKER CLAMP 23MM - Call your local BRP dealership
293650192
Unavailable
39
OETIKER CLAMP 67MM - Call your local BRP dealership
293650193
Unavailable
40
CIRCLIP - Call your local BRP dealership | 4X4
705400042
Unavailable
41
LH KNUCKLE - Call your local BRP dealership
705401178
Unavailable
42
RH KNUCKLE - Call your local BRP dealership
705401179
Unavailable
43
LH Front - Premium CV Axle | Includes 43 to 51
705401115
Unavailable
44
CV Joint
705500560
Unavailable
45
Wheel Boot Kit
705400511
Unavailable
46
OETIKER CLAMP 23MM - Call your local BRP dealership
293650192
Unavailable
47
OETIKER CLAMP 70MM - Call your local BRP dealership
293650194
Unavailable
48
Differential Boot Kit
705400512
Unavailable
49
OETIKER CLAMP 23MM - Call your local BRP dealership
293650192
Unavailable
50
OETIKER CLAMP 67MM - Call your local BRP dealership
293650193
Unavailable
51
CIRCLIP - Call your local BRP dealership | 4X4
705400042
Unavailable
52
Ball Bearing
293350150
Unavailable
53
Oetiker Gear Clamp 44.0MM | 4X4
293650138
Unavailable
54
Circlip
293370019
Unavailable
55
Hex. Flange Screw M10 X 125
230602546
Unavailable
56
Hex. Flange Elastic Nut M10
233201436
Unavailable
57
Hex. Flange Screw M8 X 55
207685544
Unavailable
58
Hex. Flange Elastic Nut M8
233281414
Unavailable
59
Wheel Hub Ass'y
705501716
Unavailable
60
Wheel Stud | Tightening Torque: See Bulletin ATV 2020-4
250300643
Unavailable
61
Conical Spring Washer M18
250200171
Unavailable
62
Hex. Flange Castellated Nut M18
232291413
Unavailable
63
Valve Cap
293000110
Unavailable
64
Cotter Pin
250400036
Unavailable
65
Wheel Cap
705400928
Unavailable
66
Tire | STD
705401331
Unavailable
66
Tire | XT
705401333
Unavailable
66
Front Tire | XT, Red, Yellow, Green, EURO
705401334
Unavailable
67
Black, Rim | XT
705401420
Unavailable
67
Silver Front Rim | STD
705401088
Unavailable
67
Deep Black, 12 Inch Rim X 6 | XT CAMO
705401127
Unavailable
68
Rim Valve With Cap
705400193
Unavailable
69
1/2 Oz Weight
219704465
Unavailable
70
Steel Wheel Nut
250100042
Unavailable
70
Black, Wheel Nut M10 X 1.25
250100184
Unavailable
71
Flat Washer M12
250200102
Unavailable
72
Hex Flange Screw M12 X 20
250001042
Unavailable
73
Wear Sleeve
705400780
Unavailable
74
Flat Washer M12
250200102
Unavailable
75
HEX FLANGED SCREW M12 X 16, SCOTCH GRIP - Call your local BRP dealership
250000378
Unavailable
76
Polyurethane Hose 10000Mm Long
219704410
Unavailable
77
Tie-Rap 180 mm
414115200
Unavailable
