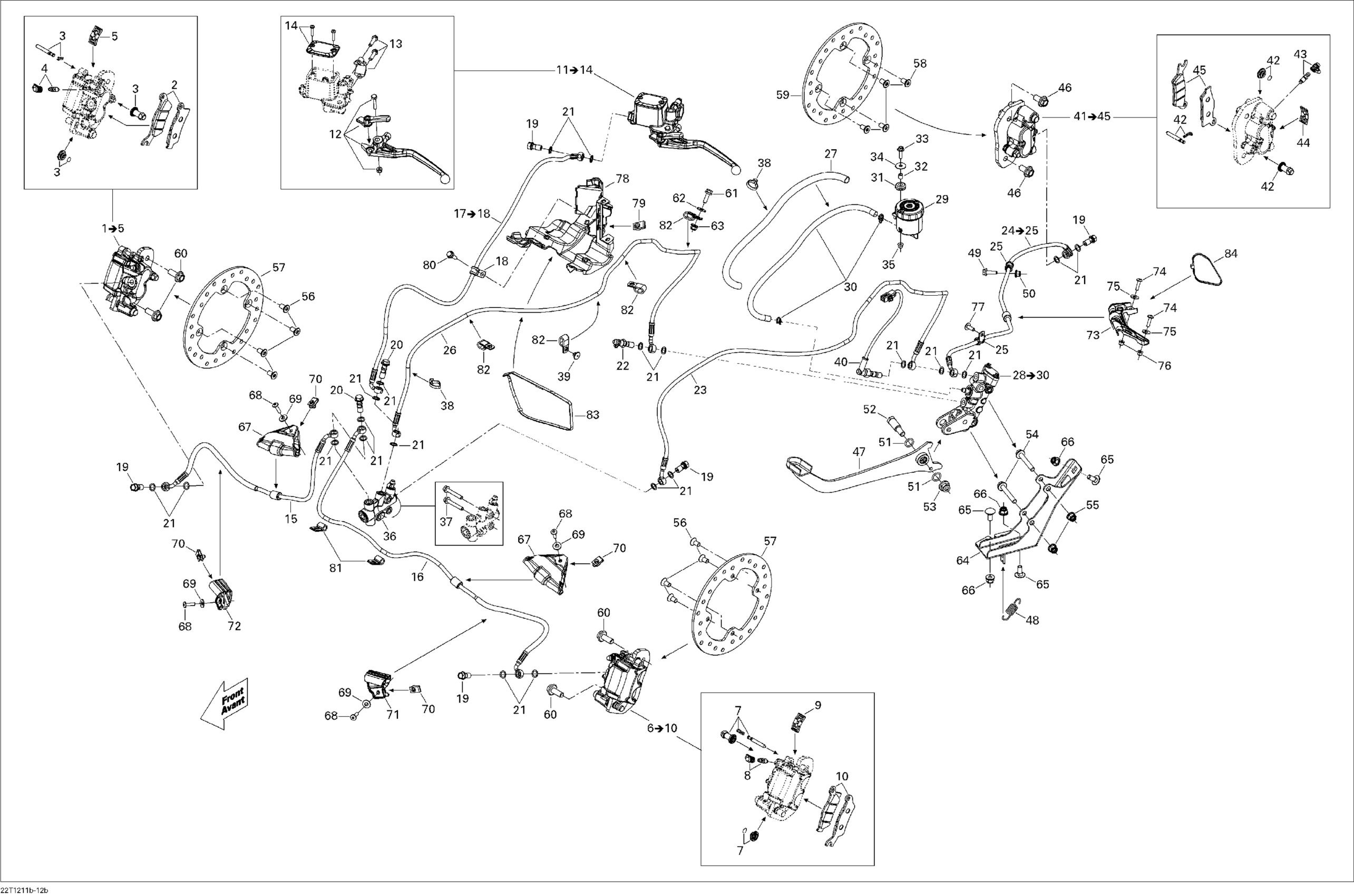

Can-Am Outlander STD, XT, 1000 EFI, 2012 Hydraulic Brakes Europe Diagram

#

Description
Price

1

RH Front Caliper Ass'y | Includes 1 to 5

705600861

$270.49

2

RH Organic Brake Pad Kit

705601014

$42.49

3

Pin Set

705601016

$9.26

4

Bleeding Screw

705601017

$6.35

5

Retaining Spring

705601018

$7.55

6

LH Front Caliper Ass'y | Includes 6 to 10

705600862

$270.49

7

Pin Set

705601016

$9.26

8

Bleeding Screw

705601017

$6.35

9

Retaining Spring

705601018

$7.55

10

LH Organic Brake Pad Kit

705601015

$42.49

11

LH Front Master Cylinder | Includes 11 to 14

705601430

$259.99

12

Lever Set

705601013

$63.99

13

Clamp And Screw Kit

507032477

$23.99

14

Cap Set

219800096

$21.99

15

RH Front Hose

705601521

$45.49

16

LH Front Hose

705601520

$45.49

17

Brake Handle Line | Includes 17 to 18

705600967

$48.49

18

Clamp

293650256

$5.49

19

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.99

20

Banjo Bolt

705600958

$6.35

21

Copper Washer

705601628

$4.44

22

Bleeding Screw

705601051

$12.16

23

Outlet Hose, Master Cylinder

705601518

$69.99

24

RH Brake Line | Includes 24 to 25

705601005

$46.49

25

Clamp

293650256

$5.49

26

Inlet Hose, Master Cylinder

705600973

$63.49

27

Tubing 10 MM 1000MM Long

219704407

$2.79

28

Rear Master Cylinder Ass'y | Includes 28 to 30

705601776

$229.99

29

Oil Tank

705601020

$39.99

30

Oil Housing Hose

705601019

$15.87

31

Grommet

414036300

$2.79

32

Bushing

293900112

$10.06

33

Hex.Flange Screw M5 X 20

207652044

$1.90

34

Flat Washer

224060201

$1.26

35

Hex. Flange Elastic Nut M5

233251414

$1.04

36

Splitter

705600994

$153.49

37

HEX. SCREW M6 X 40 - Call your local BRP dealership

210264080

Unavailable

38

Tie-Rap 180 mm

414115200

$0.11

39

Pop Rivet 3/16"

390406500

$0.88

40

Brake Switch

705601251

$51.99

41

RH Rear Brake Caliper | Includes 41 to 45

705602190

$307.49

42

Pin Set

705601016

$9.26

43

Bleeding Screw

705601017

$6.35

44

Retaining Spring

705601018

$7.55

45

RH Organic Brake Pad Kit

705601014

$42.49

46

Hex. Flange Screw M10 X 20

207502046

$2.11

47

Deep Black, Brake Pedal

705602163

$154.99

48

Brake Pedal Spring

705600792

$9.10

49

Hex. Flange Screw M6 X 20

207662044

$2.00

50

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

51

O-Ring

293300144

$3.82

52

Shoulder Screw M10

250000513

$6.77

53

Hex. Flange Elastic Nut M10

233201436

$2.11

54

Hex. Flange Screw M8 X 55

207685544

$5.39

55

Hex. Flange Elastic Nut M8

233281414

$1.47

56

Torx Screw M8 X 16, Scotch Grip

235381646

$2.53

57

Disc Brake

705600999

$67.99

58

Torx Screw M8 X 16, Scotch Grip

235381646

$2.53

59

Disc Brake

705600999

$67.99

60

Hex. Flange Screw M10 X 25

207502546

$2.11

61

Hex. Flange Screw M6 X 20

207662044

$2.00

62

Flat Washer 6 mm

234062410

$0.77

63

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

64

Brake Pedal Bracket

705202000

$38.99

65

Carriage Bolt, M8 X 20

207782044

$1.90

66

Hex. Flange Elastic Nut M8

233281414

$1.47

67

Hose Guard

705601893

$4.55

68

Torx Screw M5 X 20

250000724

$1.69

69

Washer M5

250200025

$0.74

70

Panel Nut M5 X 0.8

250000958

$4.23

71

LH Hose Bracket

705601048

$4.55

72

RH Hose Bracket

705601049

$4.55

73

REAR HOSE PROTECTOR - Call your local BRP dealership

705600963

Unavailable

74

Torx Screw M5 X 20

250000792

$2.11

75

Washer M5

250200025

$0.74

76

Elastic Flange Nut M5

233251494

$2.11

77

Torx Screw M6 X 16

250000755

$0.87

78

Front Hose Bracket

705600983

$13.71

79

Panel Nut M6 X 1.0

250100198

$2.11

80

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

81

Clamp

293650219

$0.90

82

Clamp

293650220

$0.90

83

Tie Rap, 533 mm

293750047

$2.09

84

Tie Wrap 368 mm

293750008

$1.04
