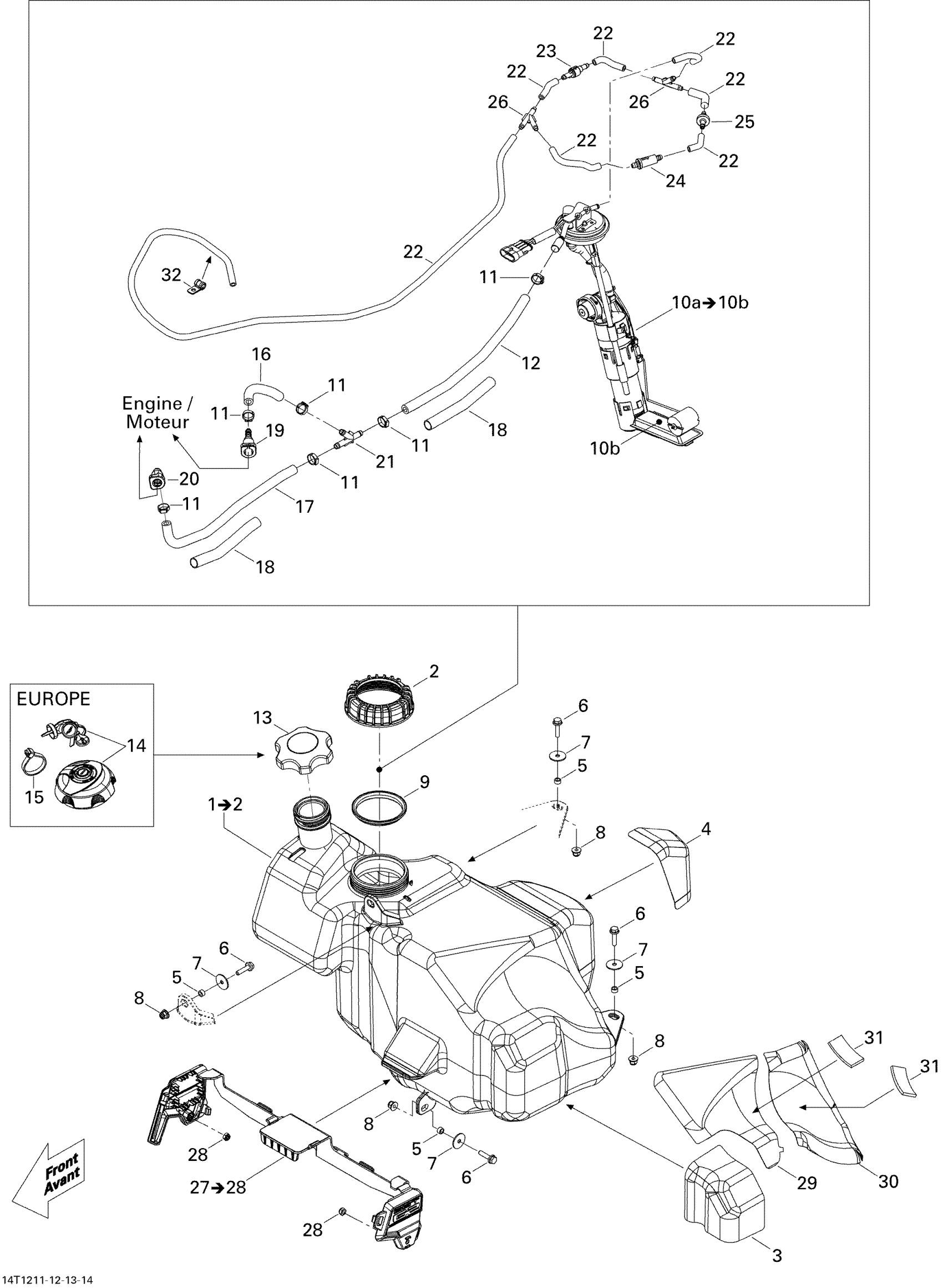

Can-Am Outlander STD, XT, 1000 EFI, 2012 Fuel System Diagram

#

Description
Price

1

Fuel Tank Ass'y | Includes 1 to 2

709000799

Unavailable

2

Fuel Pump Module Nut

709000328

$13.75

3

Heat Reflective Sheet

709000381

$6.99

4

Heat Reflective Sheet

709001071

$10.49

5

Bushing | DS 650 X

293900104

$5.50

6

Hex. Flange Screw M6 X 25

207662544

$0.64

7

Washer

224060251

$0.58

8

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

9

Seal

709000208

$14.99

10a

Fuel Pump | Includes 10a to 10b

709001517

$340.99

10b

Fuel Pre-Filter Kit

709000389

$79.49

11

Oetiker Clamp

293650046

$2.89

12

Was 709000163 Fuel Line

219704440

$28.99

13

Fuel Tank Cap

513033025

$24.49

14

Locking Cap Tank | Europe

860200387

$58.49

15

Tie Wrap 94 mm | 4X4

293750001

$1.03

16

Was 709000163 Fuel Line

219704440

$28.99

17

Was 709000163 Fuel Line

219704440

$28.99

18

Tubing 16 Mm 1000Mm Long

219704408

$7.49

19

Female Quick Fitting Ass'y

709000125

$15.49

20

Quick Fitting 90° Ass'y

415128965

$10.99

21

Y-Fitting, 5/16''

293710136

$6.49

22

Polyurethane Hose 10000Mm Long

219704410

$56.99

23

Check Valve

513033469

$31.99

24

Filter

709000330

$7.79

25

Check Valve

275500398

$10.99

26

Y-Fitting

293710059

$9.69

27

Hose Support Ass'y

709000359

$14.31

28

Hex. Elastic Stop Nut M6

232561600

$1.15

29

Heat Reflective Sheet

709000387

$5.09

30

Heat Reflective Sheet

709000388

$6.39

31

RUBBER PAD - Call your local BRP dealership

293830129

Unavailable

32

Clamp

293650256

$5.49
