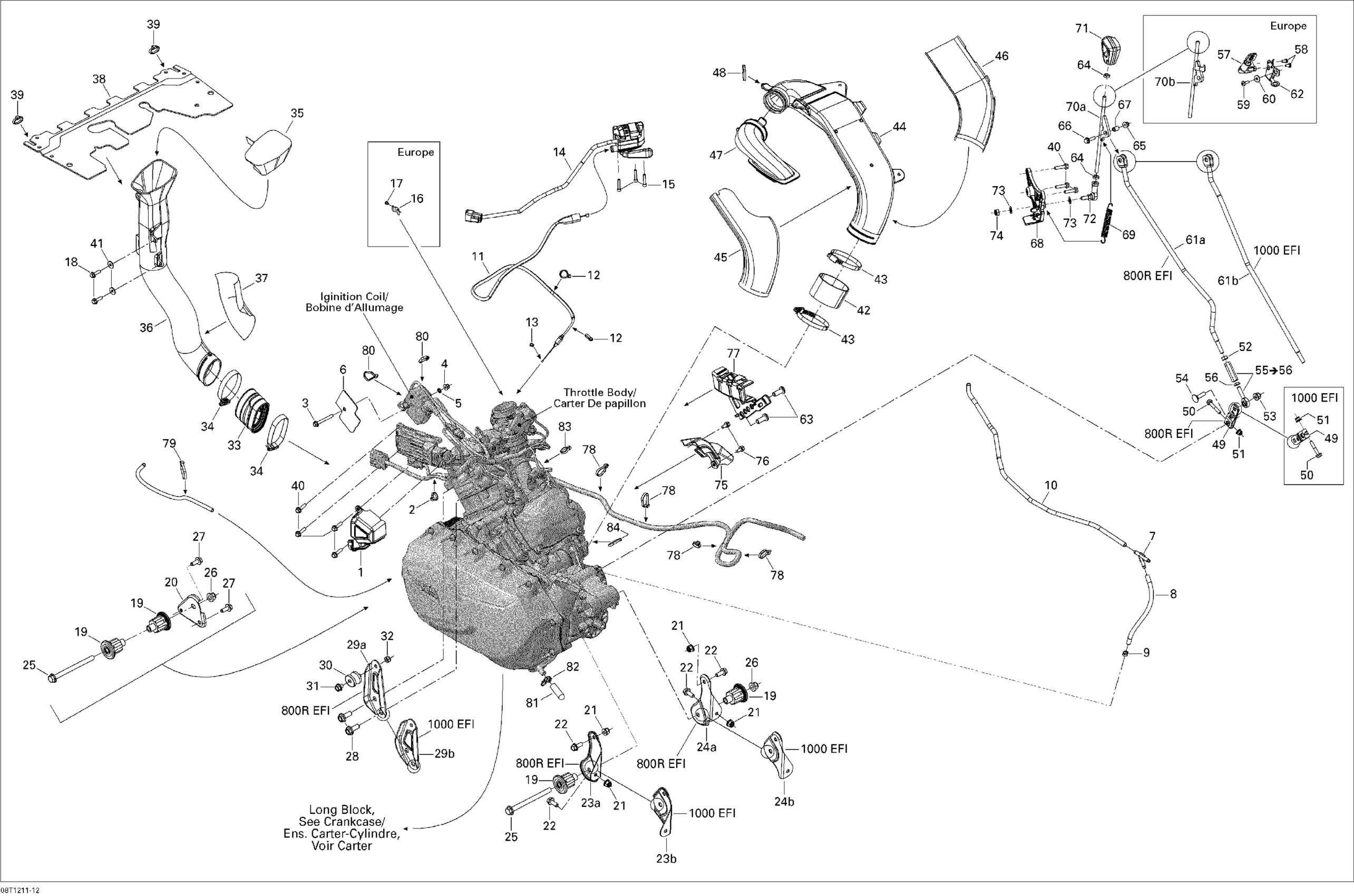

Can-Am Outlander STD, XT, 1000 EFI, 2012 01- Engine Diagram
#
1
Cover
707000945
Unavailable
2
Tie Wrap 142 mm
293750002
Unavailable
3
Hex. Flange Screw M6 X 50
207665044
Unavailable
4
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
5
External Serrated Lock Washer 6 mm
234461608
Unavailable
6
Insulator Pad
710000073
Unavailable
7
Y-Fitting
293710059
Unavailable
8
Polyurethane Hose 10000Mm Long
219704410
Unavailable
9
Clamp, Oetiker
293650195
Unavailable
10
Polyurethane Hose 10000Mm Long
219704410
Unavailable
11
Throttle Cable
707000955
Unavailable
12
Tie-Rap 180 mm
414115200
Unavailable
13
Cable Guide
707000434
Unavailable
14
Throttle Handle | 4X4
707000595
Unavailable
15
Socket Head Screw M5 X 25
205052588
Unavailable
16
SPEED LIMITER - Call your local BRP dealership | Europe
707000994
Unavailable
17
TORX SCREW M4 X 8 - Call your local BRP dealership | Europe
250000332
Unavailable
18
Hex. Flange Screw M6 X 20, Scotch Grip
207562034
Unavailable
19
Vibration Damper
707001169
Unavailable
20
Engine Support
707003319
Unavailable
21
Hex. Elastic Flange Nut M8
233281416
Unavailable
22
Hex. Flange Screw M8 X 20
207682046
Unavailable
23a
Not Available As Spare Parts
XXX
Unavailable
23b
LH REAR ENGINE BRACKET - Call your local BRP dealership
707000763
Unavailable
24a
Not Available As Spare Parts
XXX
Unavailable
24b
RH Rear Engine Bracket
707001192
Unavailable
25
Hex. Flange Screw M10 X 125
230602546
Unavailable
26
Hex. Flange Elastic Nut M10
233201436
Unavailable
27
Hex. Flange Screw M8 X 20, Scotch Grip
207582044
Unavailable
28
Hex. Flange Screw M10 X 25
207602544
Unavailable
29a
Not Available As Spare Parts
XXX
Unavailable
29b
Upper Engine Support
707003326
Unavailable
30
Rubber Isolator
707000949
Unavailable
31
Flange Screw M8 x 10, Scotch Grip
207581046
Unavailable
32
Hex. Elastic Stop Nut M8
232581414
Unavailable
33
Flexibale Adaptor
707002585
Unavailable
34
Norma Clamp
293650091
Unavailable
35
CVT Filter
707001786
Unavailable
36
CVT Air Inlet
707002073
Unavailable
37
Heat Shield
707001654
Unavailable
38
Upper Water Deflector
707001124
Unavailable
39
Tie-Rap 180 mm
414115200
Unavailable
40
Hex. Flange Screw M6 X 25
207562544
Unavailable
41
Flat Washer M6, Stainless
234062600
Unavailable
42
Adaptor
707000789
Unavailable
43
Norma Gear Clamp
293650118
Unavailable
44
AIR OUTLET - Call your local BRP dealership
706600016
Unavailable
45
HEAT SHIELD - Call your local BRP dealership
707001217
Unavailable
46
HEAT SHIELD - Call your local BRP dealership
707001218
Unavailable
47
AIR OUTLET - Call your local BRP dealership
706600018
Unavailable
48
Tie Wrap 142 mm
293750002
Unavailable
49
Lever
707000911
Unavailable
50
Hex. Flange Screw M6 X 35
207663544
Unavailable
51
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
52
Hex. Nut M8, LH Threads
250100144
Unavailable
53
Hex. Flange Elastic Nut M8
233281414
Unavailable
54
Carriage Bolt M8 X 30
207783044
Unavailable
55
Ball Joint Ass'y | Includes 55 to 56
707000966
Unavailable
56
Hex. Jam Nut M8
232180600
Unavailable
57
Padlock with Key
707000666
Unavailable
58
Socket Head Screw M5 X 10
205951046
Unavailable
59
Torx Screw K50 X 16
250000720
Unavailable
60
Washer | DS 650 X
391301600
Unavailable
61a
Not Available As Spare Parts
XXX
Unavailable
61b
Shifter Rod
707002068
Unavailable
62
Fixing Plate | Europe
707001042
Unavailable
63
Screw Socket M10 X 25 | Europe
205402556
Unavailable
64
Hex. Jam Nut M8
232180600
Unavailable
65
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
66
Hex. Flange Screw M6 X 25
207662544
Unavailable
67
Bushing
293900019
Unavailable
68
Lever Support
707003054
Unavailable
69
Spring
707000577
Unavailable
70a
Shift Arm | Except Europe
707000840
Unavailable
70b
Shift Arm | Europe
707001003
Unavailable
71
Lever Trim
707003211
Unavailable
72
RH Ball Joint
707001959
Unavailable
73
Washer
506151252
Unavailable
74
Hex. Elastic Stop Nut M8
232581414
Unavailable
75
Cover OPS
707000410
Unavailable
76
Hex. Flange Screw M6 X 12
210261250
Unavailable
77
Upper Cable Support
707001955
Unavailable
78
Tie-Rap 180 mm
414115200
Unavailable
79
Tie-Rap 180 mm
414115200
Unavailable
80
Tie-Rap 180 mm
414115200
Unavailable
81
Plug
707001185
Unavailable
82
Retainer Clip
707800506
Unavailable
83
Tie-Rap 180 mm
414115200
Unavailable
84
Tie-Rap 180 mm
414115200
Unavailable
