- Outlander MAX 800REFI STD, XT & XT-P, 2012
01- Gear Box Output Shaft

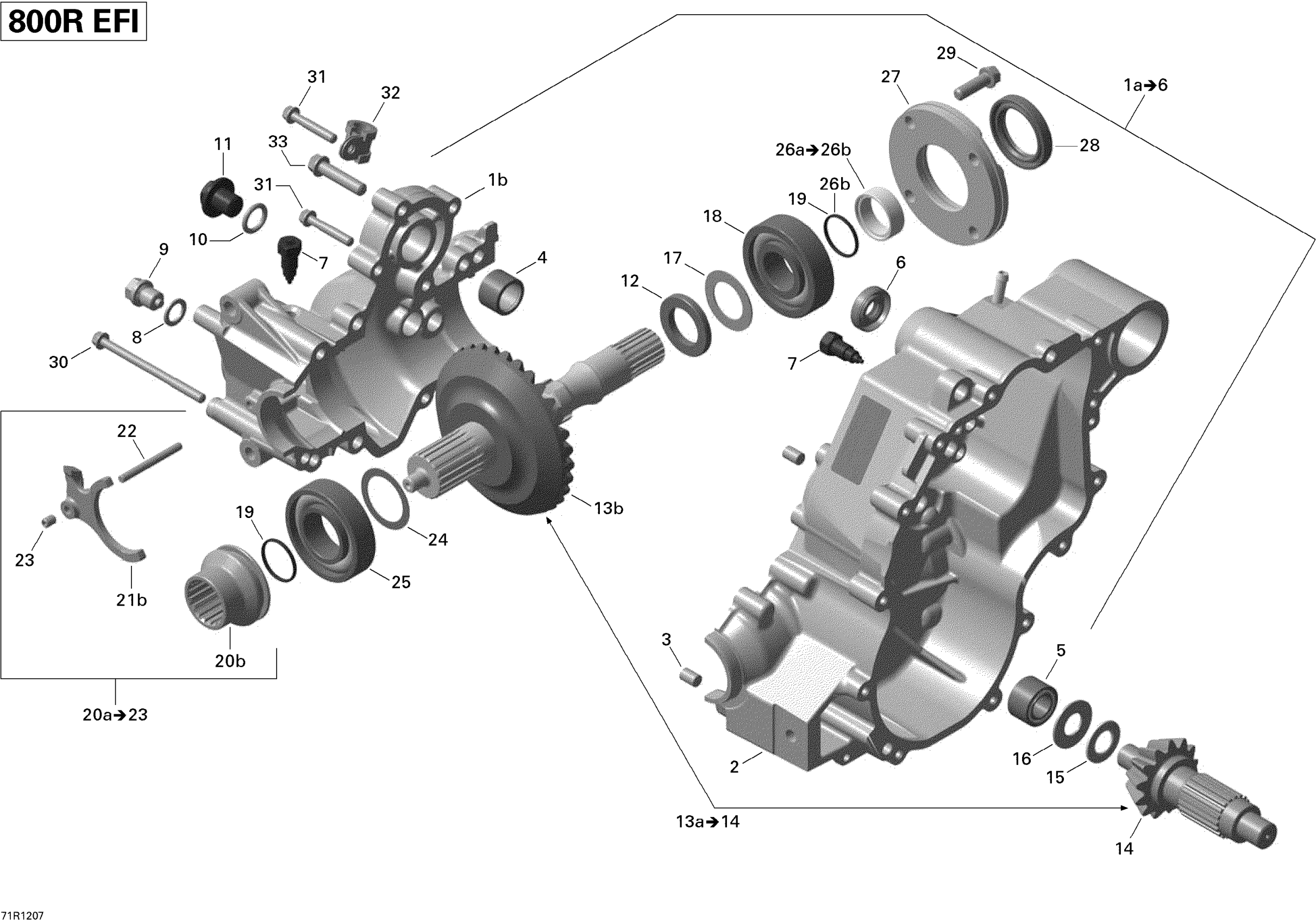

Can-Am Outlander MAX 800REFI STD, XT & XT-P, 2012 01- Gear Box Output Shaft Diagram
#
1a
Gear Housing Ass'y | Includes 1a to 7
420686205
Unavailable
1b
Not Available As Spare Part - Friction Washer
Unavailable
2
Not Available As Spare Part - Friction Washer
Unavailable
3
Center Pin 8 X 12
420632010
Unavailable
4
Needle Bushing
420832240
Unavailable
5
Needle Bushing
420232085
Unavailable
6
Oil Seal
420250450
Unavailable
7
3 Position Switch
420640192
Unavailable
8
Copper Washer
420250640
Unavailable
9
Magnetic Drain Plug M12
420241787
Unavailable
10
O-Ring
420650350
Unavailable
11
Plug Screw M14 X 1.5
420241662
Unavailable
12
Distance Ring
420247772
Unavailable
13a
Drive Ass'y | Includes 13a to 14
420635557
Unavailable
13b
Not Available As Spare Part - Friction Washer
Unavailable
14
Not Available As Spare Part - Friction Washer
Unavailable
15
Axial Needle Bearing
420632300
Unavailable
16
Thrust Washer Set, MAG Side
420281306
Unavailable
17
Washer Thrust Set
420281300
Unavailable
18
Ball Bearing
420932822
Unavailable
19
O-Ring
420631612
Unavailable
20a
Shifting Sleeve Kit | Includes 26a to 29
420257676
Unavailable
20b
Not Available As Spare Part - Friction Washer
Unavailable
21
Not Available As Spare Part - Friction Washer
Unavailable
22
Not Available As Spare Part - Friction Washer
Unavailable
23
SET SCREW M6 X 8 - Call your local BRP dealership
420841771
Unavailable
24
Shim 0.5
420944584
Unavailable
25
Ball Bearing
420932580
Unavailable
26a
Distance Ring
420247114
Unavailable
26b
O-Ring
420631612
Unavailable
27
Bearing Cover
420611444
Unavailable
28
Oil Seal
420950089
Unavailable
29
Torx Flange Screw M8 X 25
420440372
Unavailable
30
Torx Flange Screw M6 X 85
420641228
Unavailable
31
Torx Flange Screw M6 X 35
420641258
Unavailable
32
CABLE CLAMP - Call your local BRP dealership
420251690
Unavailable
33
Torx Flange Screw M8 X 35
420641188
Unavailable
