- Outlander Max 800R EFI Ltd, 2011
10- Electrical System

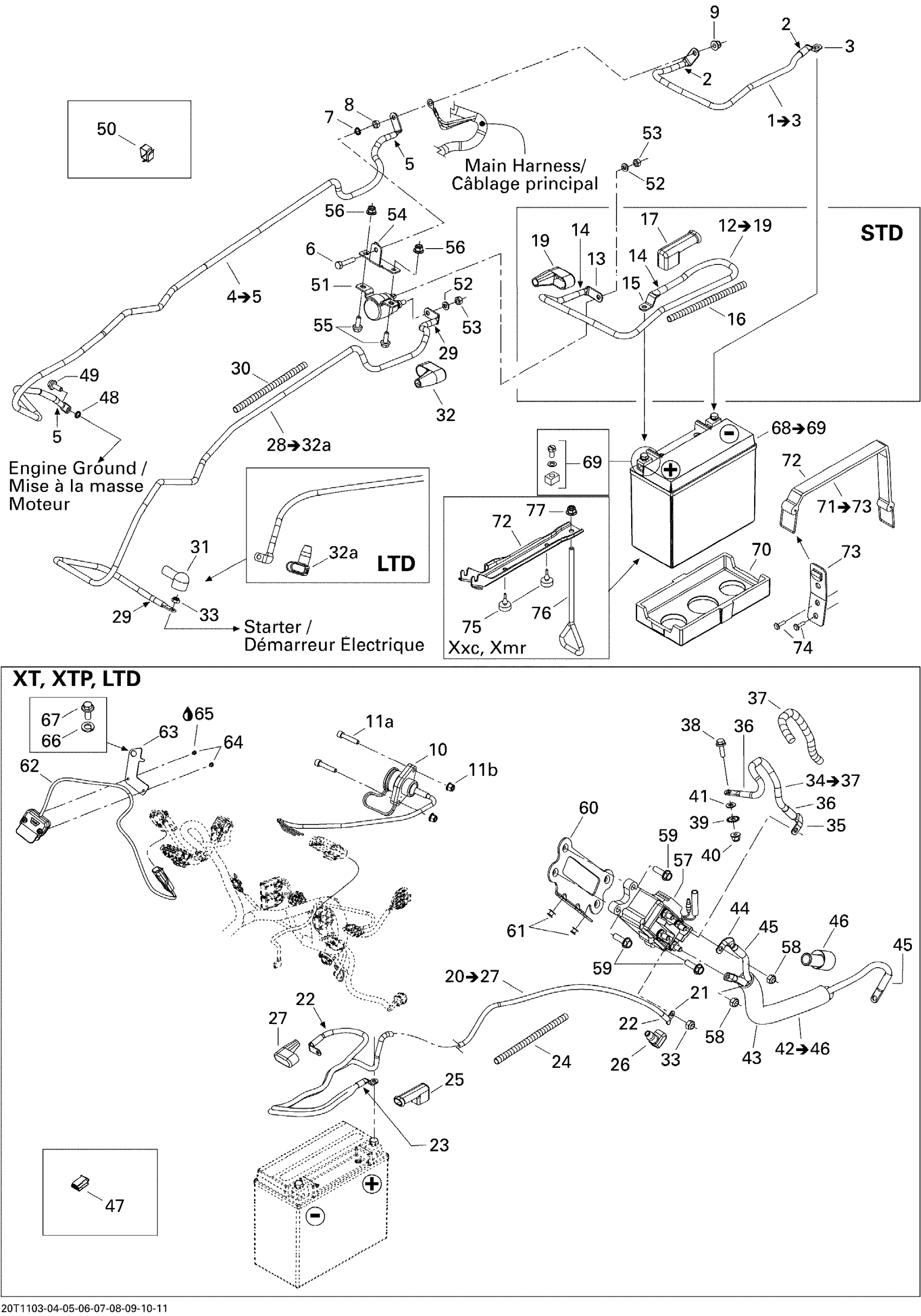

Can-Am Outlander Max 800R EFI Ltd, 2011 10- Electrical System Diagram
#
1
Ground Cable Ass'y, Battery/Frame | Includes 1 to 4
710000830
Unavailable
2
Was 710000483 Heat Shrink Tubing
219704447
Unavailable
3
Open Barrel | STD Models
710000518
Unavailable
4
GROUND CABLE - Call your local BRP dealership | Includes 5 to 8
710000844
Unavailable
5
Was 710000483 Heat Shrink Tubing
219704447
Unavailable
6
Hex. Screw M6 X 25
207162544
Unavailable
7
External Serrated Lock Washer 6 mm
234461608
Unavailable
8
Hex. Nut M6
232061414
Unavailable
9
Hex. Flange Nut M6
233061414
Unavailable
10
Winch Connector
710001023
Unavailable
11a
Socket Head Screw M5 X 25
205052588
Unavailable
11b
Hex. Flange Elastic Nut M5
233251414
Unavailable
12
Not Available As Spare Parts
XXX
Unavailable
13
Not Available As Spare Parts
XXX
Unavailable
14
Not Available As Spare Parts
XXX
Unavailable
15
Not Available As Spare Parts
XXX
Unavailable
16
Not Available As Spare Parts
XXX
Unavailable
17
Not Available As Spare Parts
XXX
Unavailable
19
Not Available As Spare Parts
XXX
Unavailable
20
Positive Cable Ass'y | XT, Includes 20 to 28
710001824
Unavailable
21
OPEN BARREL, 6.6 MM - Call your local BRP dealership | XT Models
710000476
Unavailable
22
Was 710000483 Heat Shrink Tubing
219704447
Unavailable
23
Shrink Tubing | XT Models
275500578
Unavailable
24
PROTECTOR TUBE, 9 MM - Call your local BRP dealership
710000497
Unavailable
25
Protector Cap | STD Models
710001829
Unavailable
26
Protector Cap | XT Models
710001828
Unavailable
27
Protector Cap | STD
710001817
Unavailable
28
POSITIVE CABLE - Call your local BRP dealership | Includes 30 to 36
710001819
Unavailable
29
Was 710000483 Heat Shrink Tubing
219704447
Unavailable
30
PROTECTOR TUBE, 9 MM - Call your local BRP dealership
710000497
Unavailable
31
Protector Cap
710000526
Unavailable
32
Protector Cap | STD
710001817
Unavailable
32a
Protector Cap | XT Models
710001828
Unavailable
33
Elastic Stop Nut M6
232561414
Unavailable
34
NEGATIVE CABLE ASS'Y - Call your local BRP dealership | XT Models, Includes 37 To 41
710000455
Unavailable
35
OPEN BARREL, 6.6 MM - Call your local BRP dealership | XT Models
710000476
Unavailable
36
Was 710000483 Heat Shrink Tubing
219704447
Unavailable
37
PROTECTOR TUBE, 9 MM - Call your local BRP dealership
710000497
Unavailable
38
Hex. Flange Screw M6 X 20
207662044
Unavailable
39
Lock Washer Serrated M6
250200041
Unavailable
40
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
41
Flat Washer
224061121
Unavailable
42
WINCH CABLE ASS'Y - Call your local BRP dealership | Includes 42 to 46, XT, XTP
710001615
Unavailable
43
Was 409901600 Tubing 19mm
219704398
Unavailable
44
OPEN BARREL, 6.6 MM - Call your local BRP dealership | XT Models
710000476
Unavailable
45
Was 710000483 Heat Shrink Tubing
219704447
Unavailable
46
Protector Cap | XT
515175919
Unavailable
47
Clip
710000992
Unavailable
48
External Serrated Lock Washer 6 mm
234461608
Unavailable
49
Hex. Flange Screw M6 X 16, Scotch Grip
207561644
Unavailable
50
Clip
414227300
Unavailable
51
Starter Relay
710007777
Unavailable
52
Lock Washer Helical M6
234161601
Unavailable
53
Hex. Nut M6
232061600
Unavailable
54
SOLENOID SUPPORT - Call your local BRP dealership
710001260
Unavailable
55
Hex. Flange Screw M6 X 12
207661244
Unavailable
56
Hex. Flange Nut M6
233061414
Unavailable
57
Winch Solenoid | XT Models
710001000
Unavailable
58
Elastic Stop Nut M6
232561434
Unavailable
59
Hexagonal Head Screw
210262050
Unavailable
60
BRACKET WINCH RELAY - Call your local BRP dealership | XT, XTP
710001596
Unavailable
61
Pop Rivet 3/16"
390406500
Unavailable
62
WINCH INTERRUPTER - Call your local BRP dealership | XT Models, Includes 13 To 16
710001001
Unavailable
63
WINCH INTERRUPTER SUPPORT - Call your local BRP dealership | XT Models
710000755
Unavailable
64
Hex. Cap Screw 6-32 X 1/4" | XT Models
250000153
Unavailable
65
Loctite 243, 10 ml
293800060
Unavailable
66
Helicoidal Lock Washer M10 | XT Models
234101601
Unavailable
67
HEX. SCREW M10 X 16 - Call your local BRP dealership
250000029
Unavailable
68
Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73
410301203
Unavailable
69
Battery Bolt Kit
250000282
Unavailable
70
INSULATOR PAD - Call your local BRP dealership
710000279
Unavailable
71
Not Available As Spare Part - Friction Washer
Unavailable
72
Retainer Strap
293850097
Unavailable
73
Strap Clip
293850030
Unavailable
74
Pop Rivet 3/16"
390402400
Unavailable
75
Not Available As Spare Parts
XXX
Unavailable
76
Not Available As Spare Parts
XXX
Unavailable
77
Not Available As Spare Parts
XXX
Unavailable
