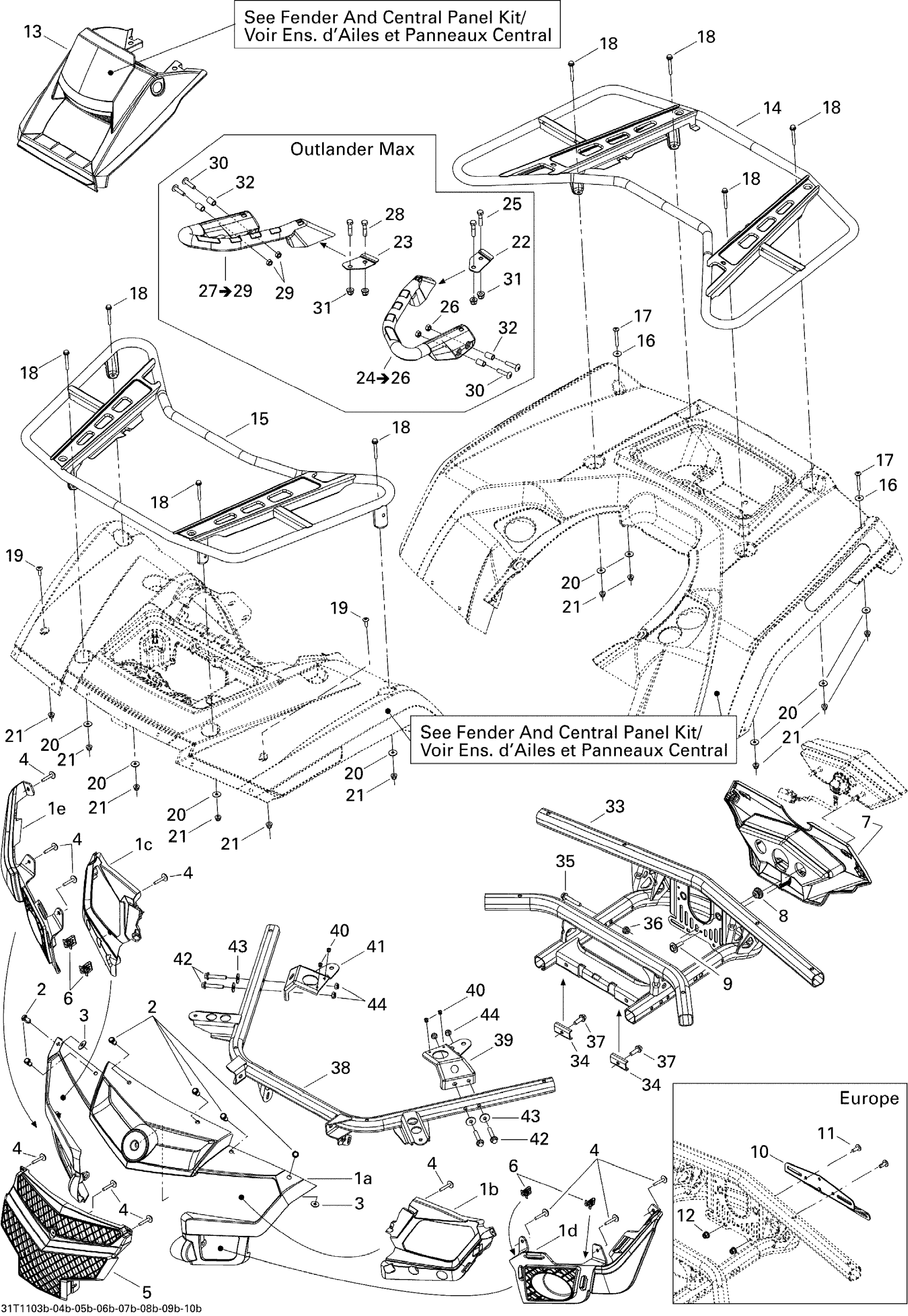

Can-Am Outlander Max 800R EFI Ltd, 2011 Body And Accessories 2 Diagram

#

Description
Price

1a

Not Available As Spare Parts

XXX

Unavailable

1a

Not Available As Spare Parts

XXX

Unavailable

1a

Not Available As Spare Parts

XXX

Unavailable

1a

Not Available As Spare Parts

XXX

Unavailable

1a

Not Available As Spare Parts

XXX

Unavailable

1a

Not Available As Spare Parts

XXX

Unavailable

1a

FRONT FASCIA, ORBITAL BLUE - Call your local BRP dealership | Orbital Blue Model

705004778

Unavailable

1a

Not Available As Spare Parts

XXX

Unavailable

1b

LH Head Lamp Support

705002825

$27.99

1c

RH Head Lamp Support

705002826

$27.99

1d

LH LOWER FRONT FACIA - Call your local BRP dealership

705002780

Unavailable

1d

LH LOWER FRONT FACIA - Call your local BRP dealership | Europe

705002889

Unavailable

1e

RH LOWER FRONT FACIA - Call your local BRP dealership

705002781

Unavailable

1e

RH LOWER FRONT FACIA - Call your local BRP dealership | Europe

705002890

Unavailable

2

Tuflok Plastic Rivet

293150230

$1.47

3

Washer

506151252

$3.17

4

Plastite Screw Type K-40, M4 X 25

250000101

$3.49

5

UPPER GRILL - Call your local BRP dealership

705002779

Unavailable

6

Edge Clip

517302785

$0.88

7

Rear Facia

705003840

$45.99

8

Stopper Rubber

705014429

$5.95

9

Screw M4 X 16

250000725

$3.49

10

SUPPORT - Call your local BRP dealership | Europe

705002499

Unavailable

11

Torx Screw M6 X 16

250000755

$0.87

12

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

13

Dashboard

705003490

$46.99

14

Rear Luggage Rack

705002617

$275.49

15

Front Luggage Rack

705002616

$275.49

16

Flat Washer

250200040

$1.90

17

Torx Truss Screw M6 X 50

250000749

$3.17

18

Hex. Screw M6 X 55

207065544

$2.11

19

Torx Screw M6 x 25

250000284

$2.11

20

Flat Washer

224061201

$1.37

21

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

22

LH FIXATION PLATE - Call your local BRP dealership

705002762

Unavailable

23

RH FIXATION PLATE - Call your local BRP dealership

705002760

Unavailable

24

LH HANDLE - Call your local BRP dealership | Includes 24 to 26

705002700

Unavailable

25

Hex. Screw M8 X 35

207083544

$1.15

26

HEX. NUT - Call your local BRP dealership

232081494

Unavailable

27

RH HANDLE - Call your local BRP dealership | Includes 27 to 29

705002699

Unavailable

28

Hex. Screw M8 X 35

207083544

$1.15

29

HEX. NUT - Call your local BRP dealership

232081494

Unavailable

30

TORX SCREW M8 X 35 - Call your local BRP dealership | Max

250000441

Unavailable

31

Hex. Flange Elastic Nut M8

233281414

$1.47

32

Bushing

705002153

$11.99

33

Rear Support

705003656

$275.49

34

U Reinforcement

705003647

$8.19

35

Hex. Flange Screw M8 X 50

207685044

$1.69

36

Hex. Flange Elastic Nut M8

233281414

$1.47

37

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

38

FRONT SUPPORT - Call your local BRP dealership

705003655

Unavailable

39

LH ANCHOR PLATE - Call your local BRP dealership

705002995

Unavailable

40

Pop Rivet 3/16"

390402300

$0.75

41

RH Anchor Plate

705002997

$18.49

42

Hex. Flange Screw M8 X 45

207684544

$3.80

43

Flat Washer 8 mm

234082410

$1.47

44

Hex. Elastic Stop Nut M8

232581414

$0.56
