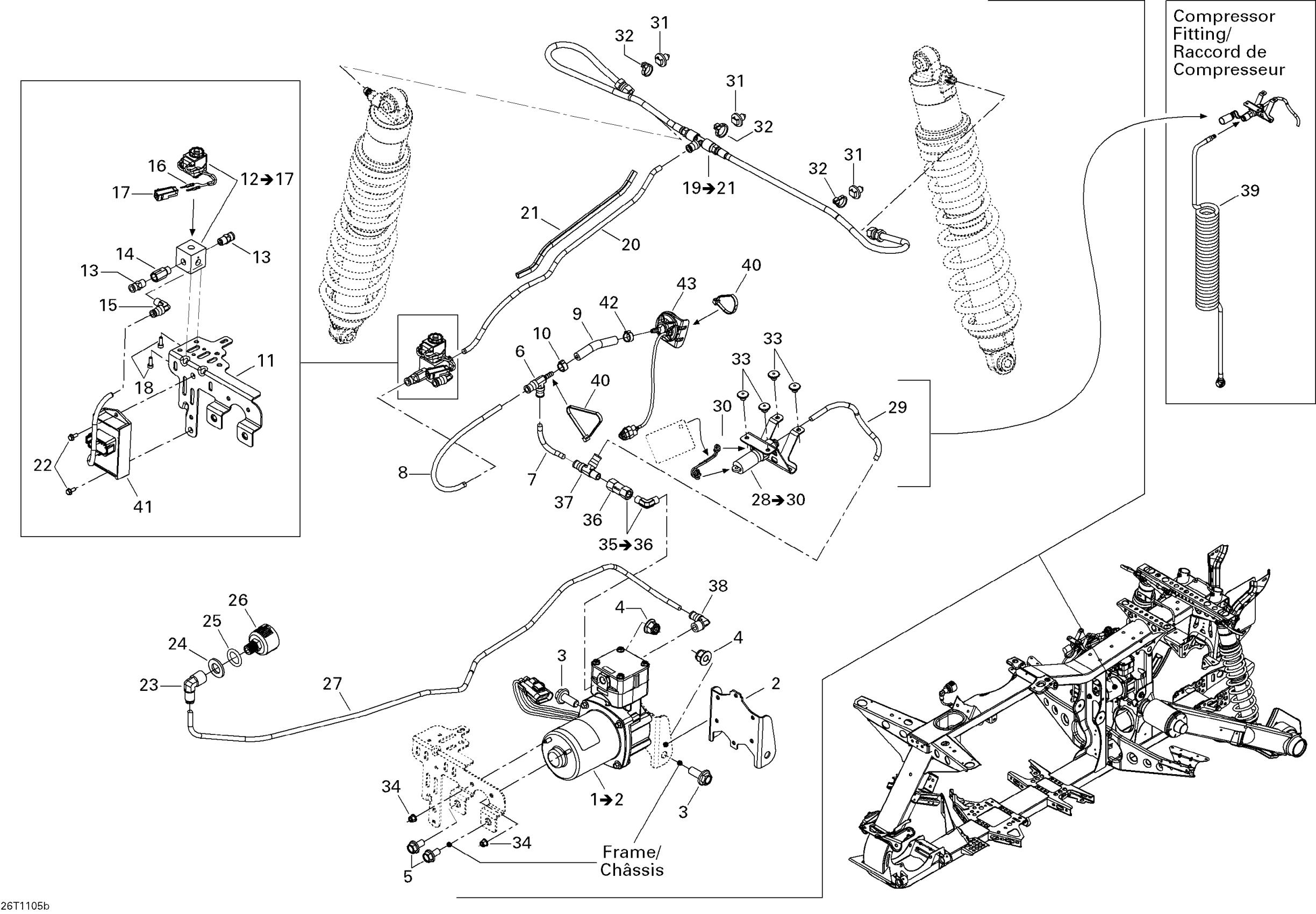

Can-Am Outlander Max 800R EFI Ltd, 2011 Rear Suspension Diagram

#

Description
Price

1

COMPRESSOR ASS'Y - Call your local BRP dealership | Includes 1a to 1b

706000745

Unavailable

2

Compressor Bracket

715900072

Unavailable

3

Hex. Flange Screw M10 X 25

207602544

$1.69

4

Hex. Flange Elastic Nut M10

233201414

$1.58

5

Hex. Flange Screw M8 X 16, Scotch Grip

207581644

$1.15

6

T-FITTING - Call your local BRP dealership

706000935

Unavailable

7

Hose 4.32Mm 3000Mm Long

219704415

$55.99

8

Hose 4.32Mm 3000Mm Long

219704415

$55.99

9

HOSE - Call your local BRP dealership

415129495

Unavailable

10

Clamp Oetiker

293650207

$12.17

11

Front Compressor Support

706000941

Unavailable

12

AIR MANIFOLD ASS'Y - Call your local BRP dealership | Includes 12 to 17

706001093

Unavailable

13

Connector

706000869

$34.99

14

Check Valve

706000860

$42.99

15

Elbow 90°

706000872

$28.99

16

Male Terminal

515175232

$1.58

17

Male Terminal Housing, 2 Circuits

515175654

$9.12

18

Socket Head Screw M4 X 12

205041254

$2.11

19

Pneumatic Hose Ass'y | Includes 19 to 21

706001034

Unavailable

20

Hose 4.32Mm 3000Mm Long

219704415

$55.99

21

Tubing 6 Mm 3000Mm Long

219704425

$13.75

22

HEX. FLANGED SCREW M4 X 10 - Call your local BRP dealership

210241080

Unavailable

23

ELBOW 90 - Call your local BRP dealership

706000796

Unavailable

24

Flat Washer 14 mm

234071410

$1.47

25

O-RING - Call your local BRP dealership

293300146

Unavailable

26

FILTER - Call your local BRP dealership

706000832

Unavailable

27

Hose 4.32Mm 3000Mm Long

219704415

$55.99

28

BRACKET ASS'Y - Call your local BRP dealership | Includes 34 to 36

706000853

Unavailable

29

Hose 4.32Mm 3000Mm Long

219704415

$55.99

30

O-Ring

414811400

$7.06

31

Mount Dart

293730040

$1.04

32

Tie Wrap 142 mm

293750002

$1.25

33

Pop Rivet 3/16"

390406500

$0.88

34

Hex. Flange Elastic Nut M5

233251414

$1.04

35

FITTING ASS'Y - Call your local BRP dealership

706000939

Unavailable

36

Check Valve

706000940

$37.99

37

T-FITTING - Call your local BRP dealership

706000795

Unavailable

38

ELBOW 90 - Call your local BRP dealership

706000793

Unavailable

39

Auxiliary Hose

706000808

$104.99

40

Tie Wrap 368 mm

293750008

$1.04

41

Ens Module *Module Kit

703500894

$499.99

42

Clamp Oetiker

293650207

$12.17

43

Air Suspension Sensor

710001825

$189.99
