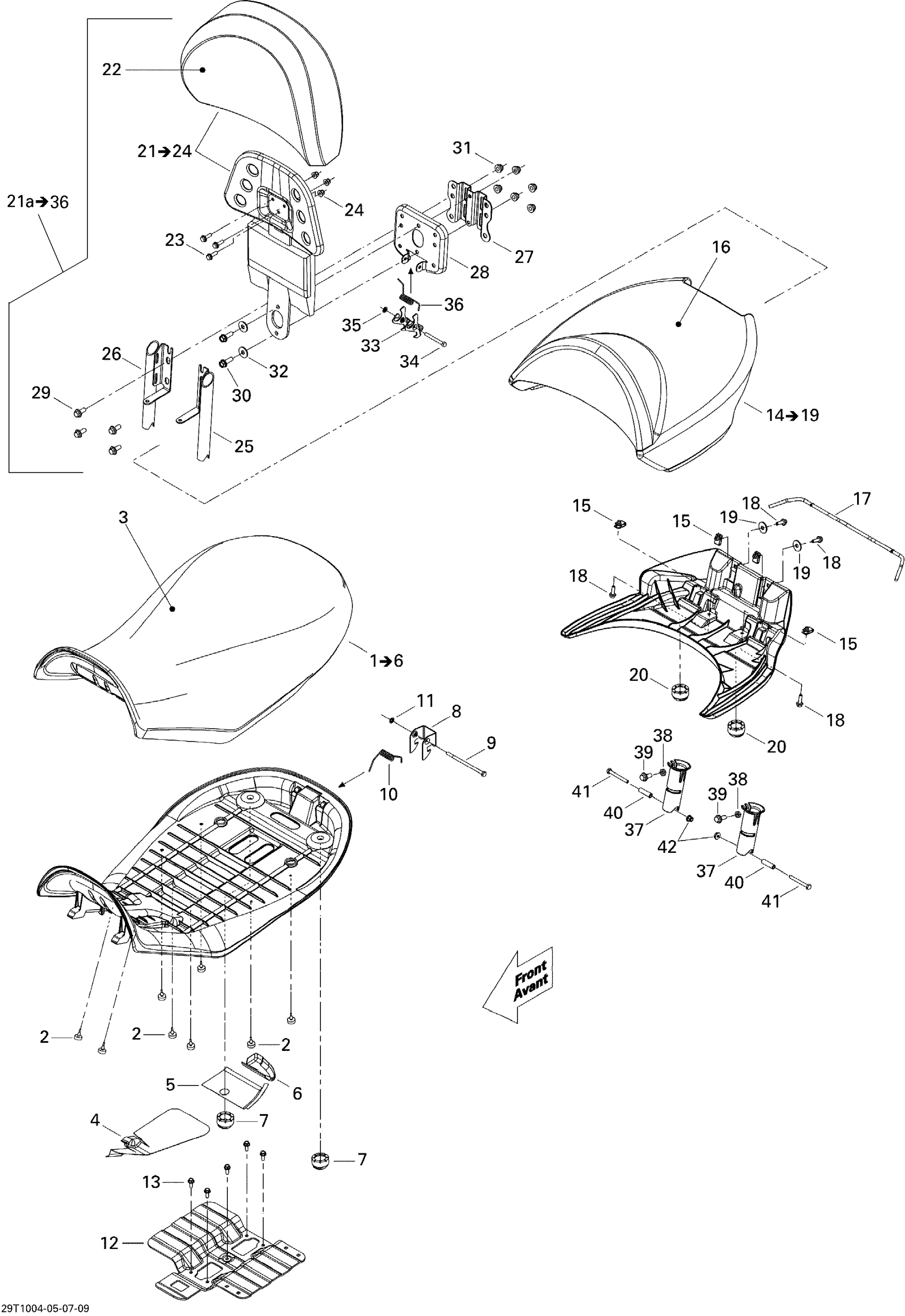

Can-Am Outlander Max 800R EFI Ltd, 2010 Seat Diagram

#

Description
Price

1

SEAT ASSEMBLY - Call your local BRP dealership | Includes 1 to 3, 11, 12, 13

708001648

Unavailable

2

Rubber Stopper

708000759

$4.15

3

SEAT COVER - Call your local BRP dealership

708000657

Unavailable

4

REFLECTING SHEET - Call your local BRP dealership

708000956

Unavailable

5

REFLECTING SHEET - Call your local BRP dealership

708000470

Unavailable

6

HEAT SHIELD - Call your local BRP dealership

708000957

Unavailable

7

Bumper Rubber

708000760

$8.84

8

Latch, Black

708000144

$10.76

9

Hex. Screw M6 X 110

230061034

$2.00

10

Spring

708000369

$8.34

11

Push Nut

732610072

$1.97

12

REINFORCEMENT SEAT - Call your local BRP dealership

708000817

Unavailable

13

Hex. Flange Screw M6 X 12

210261250

$1.79

14

REAR SEAT ASS'Y - Call your local BRP dealership | Includes 14 to 19

708000850

Unavailable

15

Panel Nut M6 X 1.0

250100198

$1.99

16

SEAT COVER - Call your local BRP dealership

708000851

Unavailable

17

LATCH HANDLE - Call your local BRP dealership

708000822

Unavailable

18

Hex. Flange Screw M6 X 20

207662044

$1.91

19

Lock Washer M6, Black

234161471

$0.51

20

Bumper Rubber

708000760

$8.84

21

BACKREST ASS'Y - Call your local BRP dealership | Includes 21 to 24

708000853

Unavailable

21a

Not Available As Spare Part - Friction Washer

Unavailable

22

BACKREST COVER - Call your local BRP dealership

708000854

Unavailable

23

Hex. Flange Screw M6 X 20

207662044

$1.91

24

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

25

LH BACKREST STEM - Call your local BRP dealership

708000439

Unavailable

26

RH BACKREST STEM - Call your local BRP dealership

708000443

Unavailable

27

REAR PLATE - Call your local BRP dealership

708000855

Unavailable

28

FRONT PLATE - Call your local BRP dealership

708000446

Unavailable

29

Hex. Flange Screw M8 X 20

207682044

$1.06

30

Hex. Flange Screw M8 X 25

207682544

$1.03

31

Hex. Flange Elastic Nut M8

233281414

$1.31

32

Flat Washer 8 mm

234082410

$1.27

33

LATCH - Call your local BRP dealership

708000448

Unavailable

34

Hex. Screw M6 X 55

207065544

$1.96

35

Push Nut

732610072

$1.97

36

Spring

708000369

$8.34

37

ROD GUIDE - Call your local BRP dealership

708000461

Unavailable

38

Hex. Jam Nut M8

232180600

$0.64

39

HEX. CAP SCREW M8 X 20 - Call your local BRP dealership

207182034

Unavailable

40

INNER BUSHING - Call your local BRP dealership

708000530

Unavailable

41

HEX. CAP SCREW M6 X 50 - Call your local BRP dealership

207065034

Unavailable

42

Flange Elastic Nut M6

233261434

$4.15
