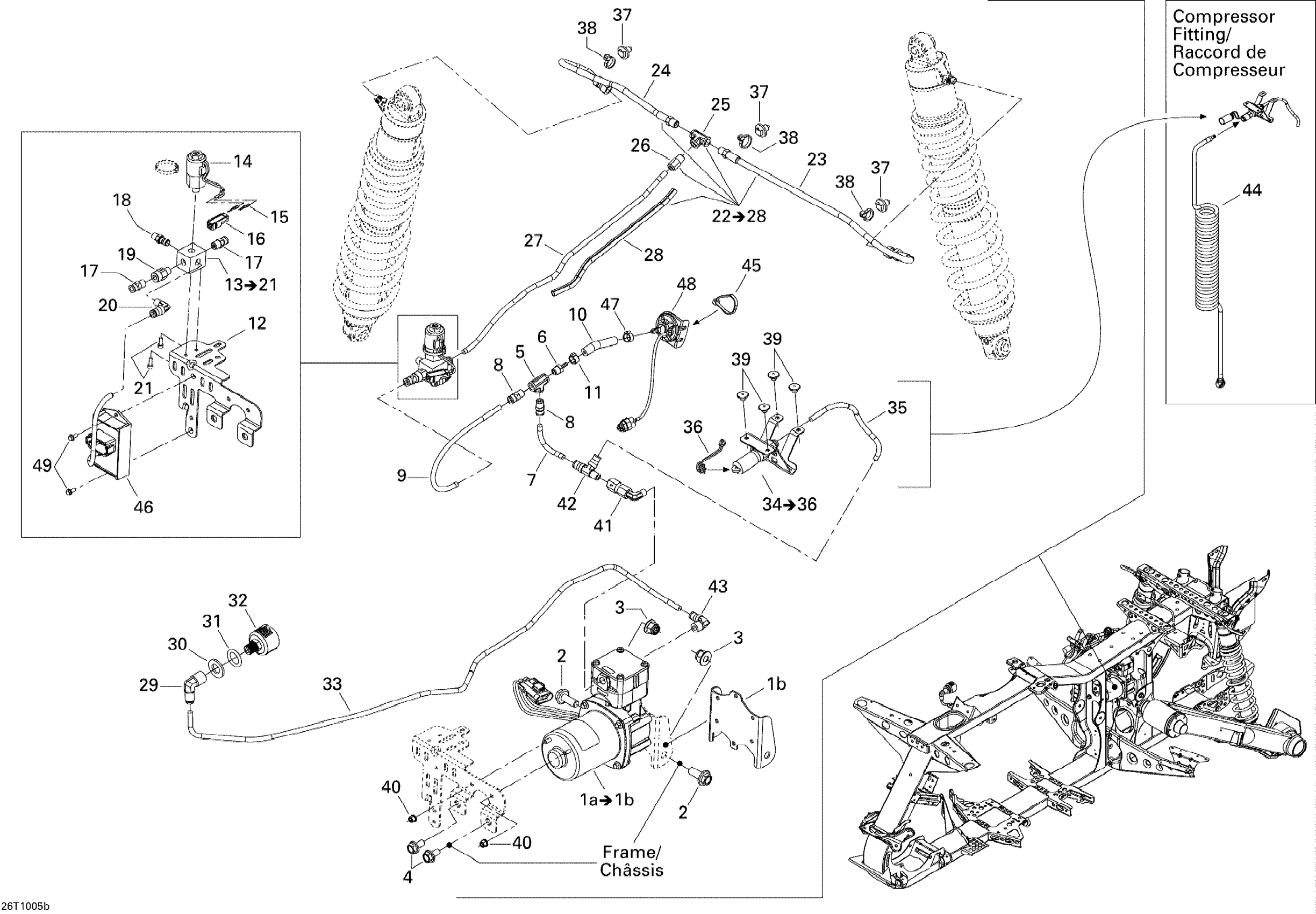

Can-Am Outlander Max 800R EFI Ltd, 2010 Rear Suspension 2 Diagram

#

Description
Price

1a

COMPRESSOR ASS'Y - Call your local BRP dealership | Includes 1a to 1b

706000745

Unavailable

1b

Compressor Bracket

715900072

Unavailable

2

Hex. Flange Screw M10 X 25

207602544

$1.52

3

Hex. Flange Elastic Nut M10

233201414

$1.45

4

Hex. Flange Screw M8 X 16, Scotch Grip

207581644

$1.04

5

T-FITTING - Call your local BRP dealership

706000806

Unavailable

6

CONNECTOR - Call your local BRP dealership

706000799

Unavailable

7

Hose 4.32Mm 3000Mm Long

219704415

$50.72

8

Connector

706000869

$32.06

9

Hose 4.32Mm 3000Mm Long

219704415

$50.72

10

HOSE - Call your local BRP dealership

415129495

Unavailable

11

Clamp Oetiker

293650207

$11.31

12

Front Compressor Support

706000778

Unavailable

13

AIR MANIFOLD ASS'Y - Call your local BRP dealership | Includes 13 to 21

706000747

Unavailable

14

VALVE - Call your local BRP dealership

503189097

Unavailable

15

Male Terminal

515175232

$1.45

16

Male Terminal Housing, 2 Circuits

515175654

$7.25

17

Connector

706000869

$32.06

18

Air Valve

706002797

$14.90

19

Check Valve

706000860

$38.78

20

Elbow 90°

706000872

$26.09

21

Socket Head Screw M4 X 12

205041254

$1.96

22

PNEUMATIC HOSE ASS'Y - Call your local BRP dealership | Includes 22 to 28

706000804

Unavailable

23

Not Available As Spare Part - Friction Washer

Unavailable

24

Not Available As Spare Part - Friction Washer

Unavailable

25

T-FITTING - Call your local BRP dealership

706000806

Unavailable

26

Connector

706000869

$32.06

27

Hose 4.32Mm 3000Mm Long

219704415

$50.72

28

Was 409901700 Tubing (9 mm)

219704399

$77.58

29

ELBOW 90 - Call your local BRP dealership

706000796

Unavailable

30

Flat Washer 14 mm

234071410

$1.34

31

Not Available As Spare Part - Friction Washer

Unavailable

32

FILTER - Call your local BRP dealership

706000832

Unavailable

33

Hose 4.32Mm 3000Mm Long

219704415

$50.72

34

BRACKET ASS'Y - Call your local BRP dealership | Includes 34 to 36

706000853

Unavailable

35

Hose 4.32Mm 3000Mm Long

219704415

$50.72

36

O-Ring

414811400

$6.15

37

Mount Dart

293730040

$0.99

38

Tie Wrap 142 mm

293750002

$1.01

39

Pop Rivet 3/16"

390406500

$0.81

40

Hex. Flange Elastic Nut M5

233251414

$1.91

41

FITTING ASS'Y - Call your local BRP dealership

706000939

Unavailable

42

T-FITTING - Call your local BRP dealership

706000795

Unavailable

43

ELBOW 90 - Call your local BRP dealership

706000793

Unavailable

44

Auxiliary Hose

706000808

$94.00

45

Tie Wrap 368 mm

293750008

$0.97

46

Ens Module *Module Kit

703500894

$443.25

47

Clamp Oetiker

293650207

$11.31

48

Air Suspension Sensor

710001825

$170.12

49

HEX. FLANGED SCREW M4 X 10 - Call your local BRP dealership

210241080

Unavailable
