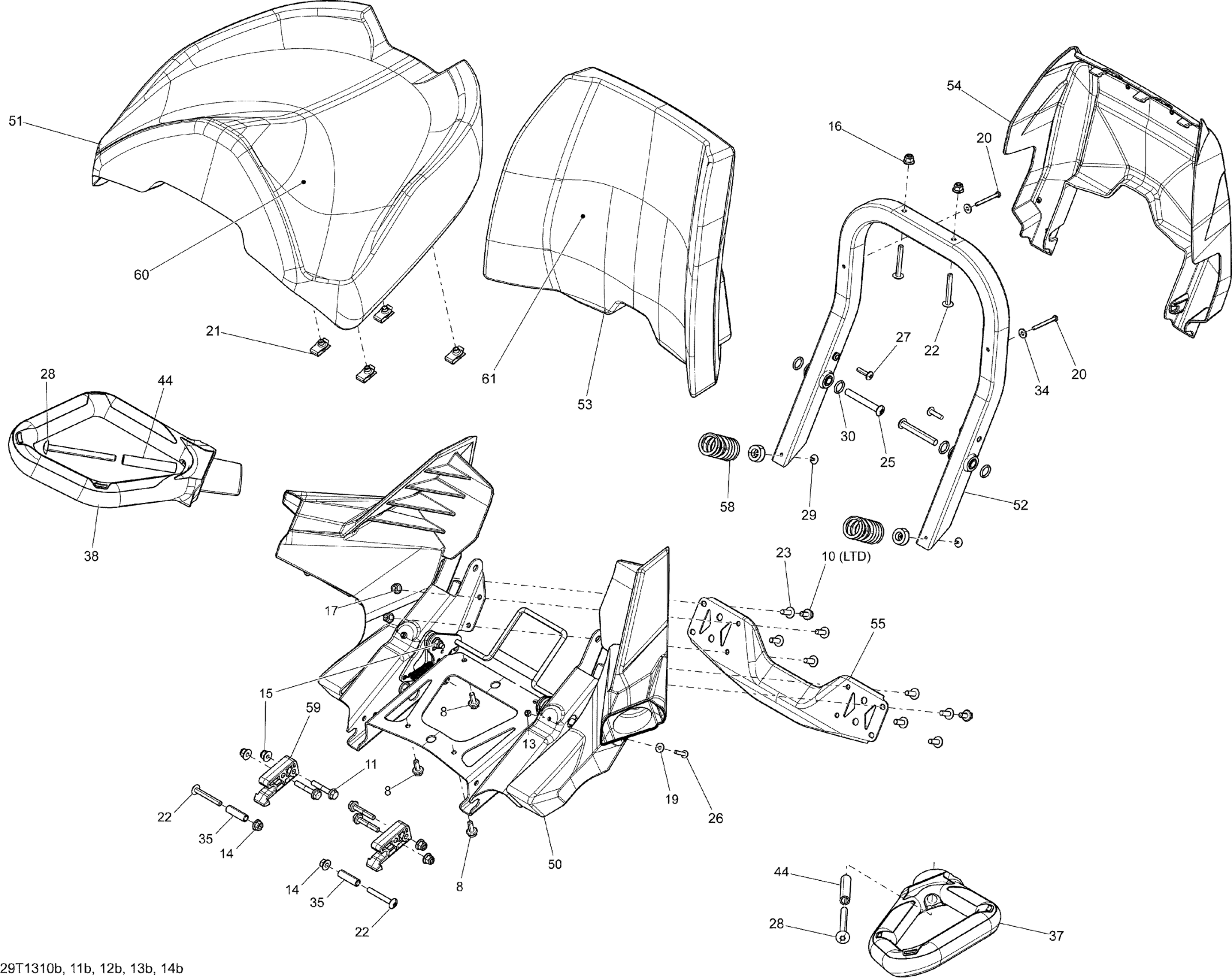

Can-Am Outlander MAX 800R EFI, DPS, XT & XT-P, 2013 09- Seat Passenger Diagram

#

Description
Price

8

Hex. Flange Screw M6 X 16, Scotch Grip

207561634

Unavailable

10

Not Available As Spare Parts

XXX

Unavailable

11

Hex. Flange Screw M6 X 35

207663544

Unavailable

13

Elastic Stop Nut M4

232541484

Unavailable

15

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

16

Flange Elastic Nut M6

233261434

Unavailable

17

Hex. Flange Elastic Nut M6

233261494

Unavailable

19

Flat Washer 4 mm, Stainless

234042600

Unavailable

20

HEX. SCREW K40 X 40 - Call your local BRP dealership

250000008

Unavailable

21

Panel Nut M6 X 1.0

250100198

Unavailable

22

Torx Screw M6 X 45

250000215

Unavailable

23

Torx Screw M6 X 16

250000223

Unavailable

25

Torx Screw M8 X 60, Scotch Grip

250000383

Unavailable

26

TORX SCREW M4 X 20 - Call your local BRP dealership

250000405

Unavailable

27

Torx Screw M5 X 20

250000792

Unavailable

28

Torx Truss M8 X 90

250000806

Unavailable

29

Pop Rivet 5/32"

293150170

Unavailable

30

O-Ring

293300006

Unavailable

34

Flat Washer

517225900

Unavailable

35

SPACER - Call your local BRP dealership

517305142

Unavailable

37

LH Passenger Seat Handle Kit | Includes 28, 44

703500806

Unavailable

38

RH Passenger Seat Handle Kit | Includes 28, 44

703500807

Unavailable

44

Sleeve

705006129

Unavailable

50

PASSENGER SEAT SUPPORT KIT - Call your local BRP dealership

703500808

Unavailable

51

PASSENGER SEAT ASS'Y - Call your local BRP dealership

708000980

Unavailable

52

PASSENGER SUPPORT BACKREST KIT - Call your local BRP dealership

703500809

Unavailable

53

BACKREST - Call your local BRP dealership

708000982

Unavailable

54

BACKREST CAP - Call your local BRP dealership

708001057

Unavailable

55

PAINTED BRACKET - Call your local BRP dealership

708001058

Unavailable

58

COMPRESSOR SPRING - Call your local BRP dealership

708001096

Unavailable

59

SEAT GUIDE - Call your local BRP dealership

708001116

Unavailable

60

Seat Cover

708000981

Unavailable

61

Backrest Cover

708000983

Unavailable
