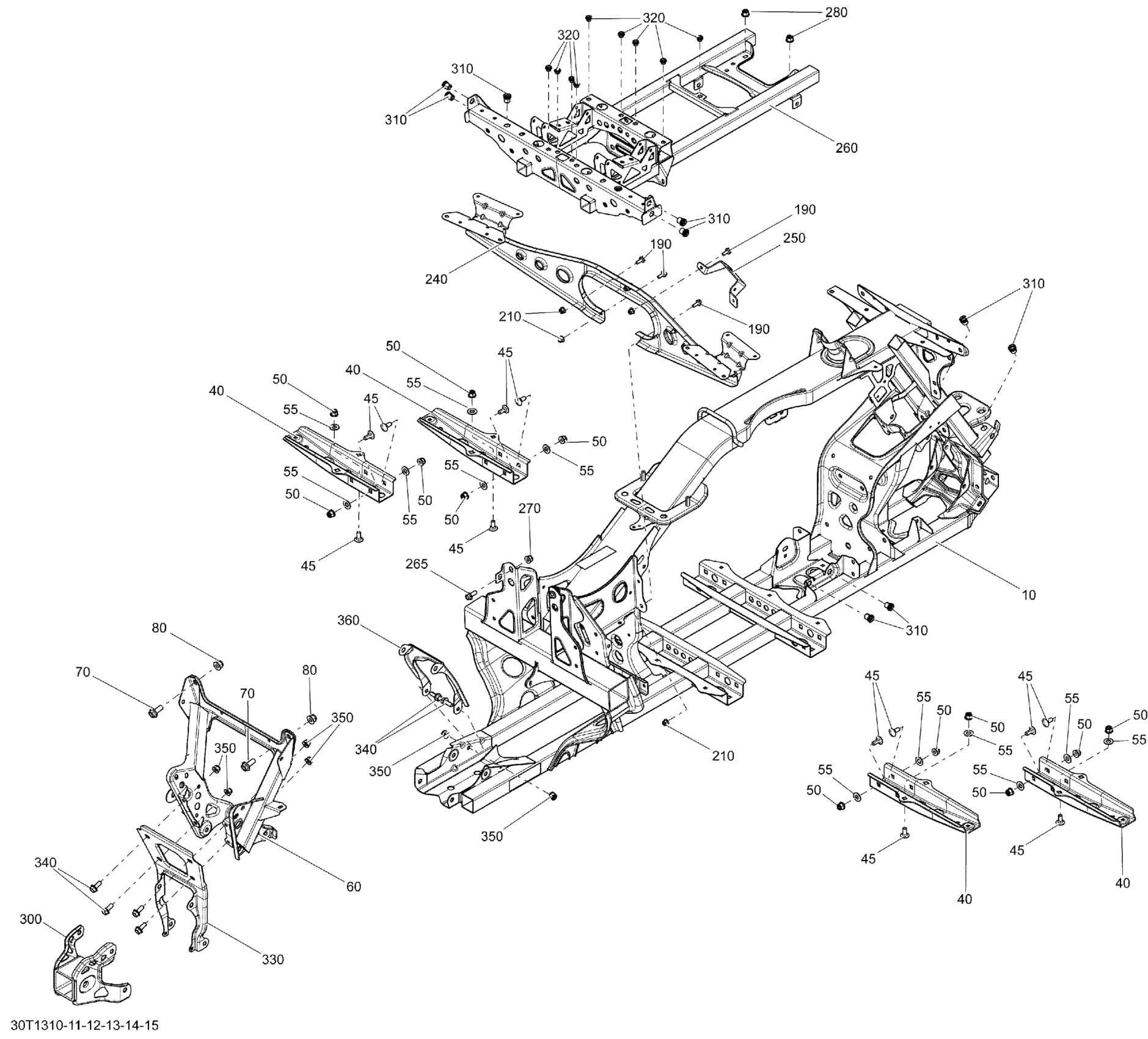

Can-Am Outlander MAX 800R EFI, DPS, XT & XT-P, 2013 09- Frame Diagram
#
Description
Price
10
Frame, Black
705203601
Unavailable
40
SUPPORT KIT - Call your local BRP dealership
703500852
Unavailable
45
Carriage Bolt, M8 X 20
207782044
Unavailable
50
Hex. Flange Elastic Nut M8
233281414
Unavailable
55
Flat Washer 10 mm
234001410
Unavailable
60
Rear Pillar
705210818
Unavailable
70
Hex. Flange Screw M10 X 25
207602546
Unavailable
80
Hex. Flange Elastic Nut M10
233201436
Unavailable
190
Hex. Flange Screw M6 X 16
207661644
Unavailable
210
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
240
Footrest Support
705210817
Unavailable
250
Master Cylinder Bracket
705203874
Unavailable
260
FRAME TAIL, BLACK - Call your local BRP dealership
705202295
Unavailable
265
Hex. Flange Screw M10 X 25
207602546
Unavailable
270
Hex. Flange Elastic Nut M10
233201436
Unavailable
280
Hex. Flange Elastic Nut M8
233281414
Unavailable
300
Trailer Hitch
715005186
Unavailable
310
Insert Half Hex Body M8 x 1.25
293450307
Unavailable
320
Threaded Insert M6 X 1.0
250100242
Unavailable
330
Rear Support
705203301
Unavailable
340
Hex. Flange Screw M8 X 20
207682046
Unavailable
350
Hex. Elastic Flange Nut M8
233281416
Unavailable
360
FRONT LINK - Call your local BRP dealership
705202900
Unavailable
