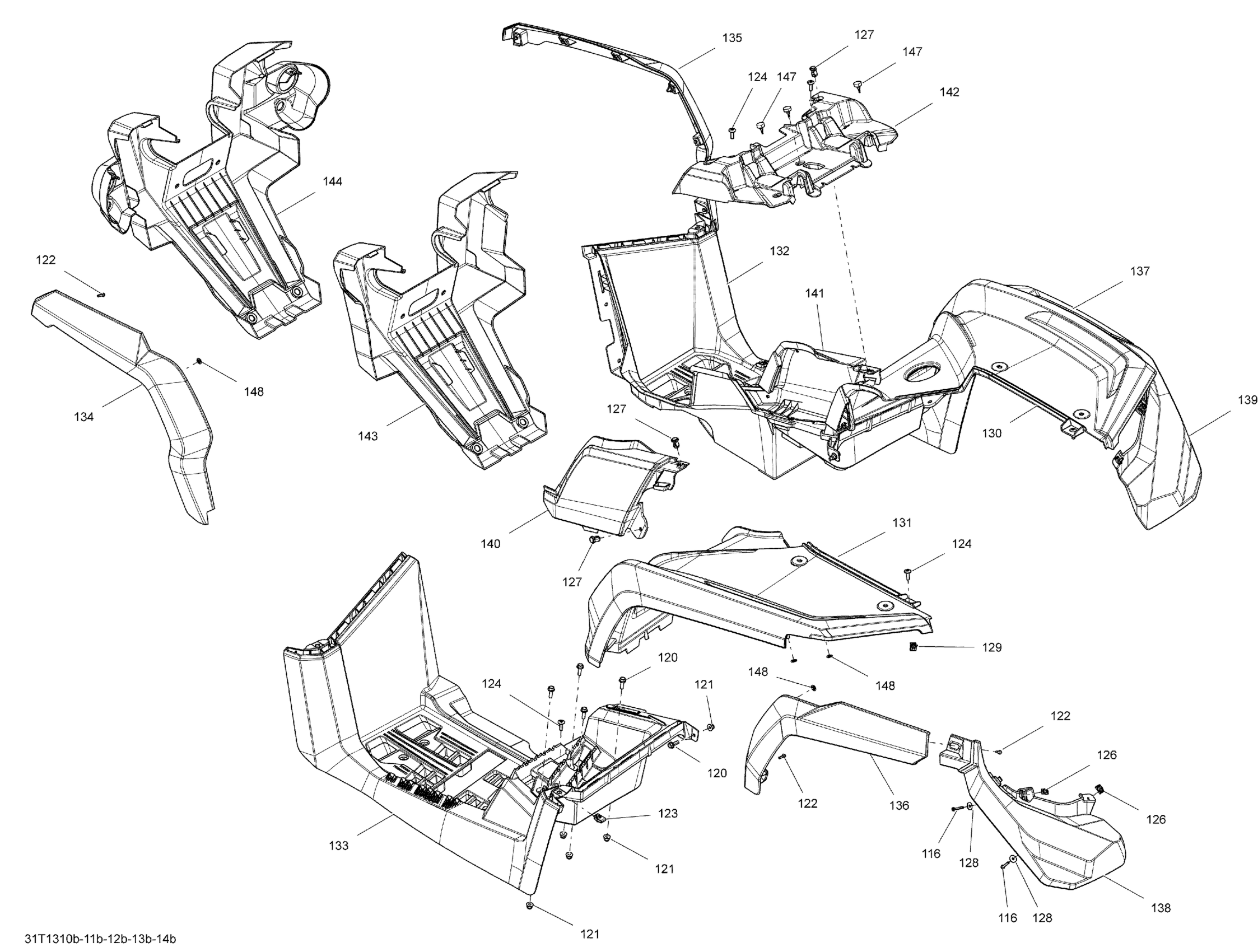

Can-Am Outlander MAX 800R EFI, DPS, XT & XT-P, 2013 Body And Accessories Diagram

#

Description
Price

116

Hex. Cap Screw M4 X 25

207342544

$0.74

120

Hex. Flange Screw M6 X 20

207662084

$0.83

121

Flange Elastic Nut M6

233261434

$3.61

122

Hex. Flange Screw K40 X 13

241141360

$0.56

123

Panel Nut M6 X 1.0

250100198

$1.73

124

Torx Screw M6 X 20

250000722

$1.34

126

Extruded Panel Nut M4 X 0.7

250100143

$6.77

127

Tuflok Plastic Rivet

293150230

$1.21

128

Washer

517124300

$0.16

129

Edge Clip

517302785

$0.70

130

Yellow RH Rear Fender Kit

715001820

$128.43

130

RH Rear Fender Kit, Yellow | Includes 7 to 7a, Yellow

715001821

$128.43

130

Red, RH Rear Fender Kit

715001823

$128.43

130

RH REAR FENDER KIT, RED - Call your local BRP dealership | Includes 7 to 7a, Red North America

715001833

$161.51

130

RH REAR FENDER KIT, CAMO - Call your local BRP dealership | Int'l

715001835

Unavailable

130

Black RH Rear Fender Kit | XTP Model

715001836

$379.97

130

RH REAR FENDER KIT, BLACK - Call your local BRP dealership | XTP Model, Europe

715001837

$569.20

130

Pure Magnesium, RH Rear Fender | Includes 7 to 7a, Magnesium North America

705011961

$379.97

131

Yellow LH Rear Fender Kit

715001793

$128.43

131

LH Rear Fender Kit, Red

715001795

$128.43

131

CAMO LH REAR FENDER KIT - Call your local BRP dealership

715001804

$626.12

131

MAGNESIUM LH REAR FENDER KIT - Call your local BRP dealership

715001806

$419.97

131

LH REAR FENDER KIT, YELLOW - Call your local BRP dealership | Europe

715001812

$161.51

131

BLACK LH REAR FENDER KIT - Call your local BRP dealership | XTP Model

715001802

$597.66

131

LH REAR FENDER KIT, BLACK - Call your local BRP dealership | XTP Model, Europe

715001814

$597.66

132

RH Footrest Max

705003521

$124.58

133

LH Footrest Max

705003525

$124.58

134

LH Front Mudguard

705003914

$12.31

135

RH Front Mudguard

705003915

$12.31

136

LH Rear Mudguard

705003918

$12.31

137

RH Rear Mudguard

705003920

$12.31

138

LH Rear Mudguard, Part 2

705003921

$12.31

139

RH Rear Mudguard, Part 2

705003922

$12.31

140

LH Extension Panel

715001897

$27.66

141

RH Extension Panel

705004348

$27.66

142

REAR CENTER PANEL KIT - Call your local BRP dealership

715001854

Unavailable

143

Front Guard Plate | North America, International

705006299

$47.66

144

Front Guard Plate | Europe

705006300

$40.74

147

Rubber Stopper

708000759

$3.61

148

Push Nut

732610072

$1.72
