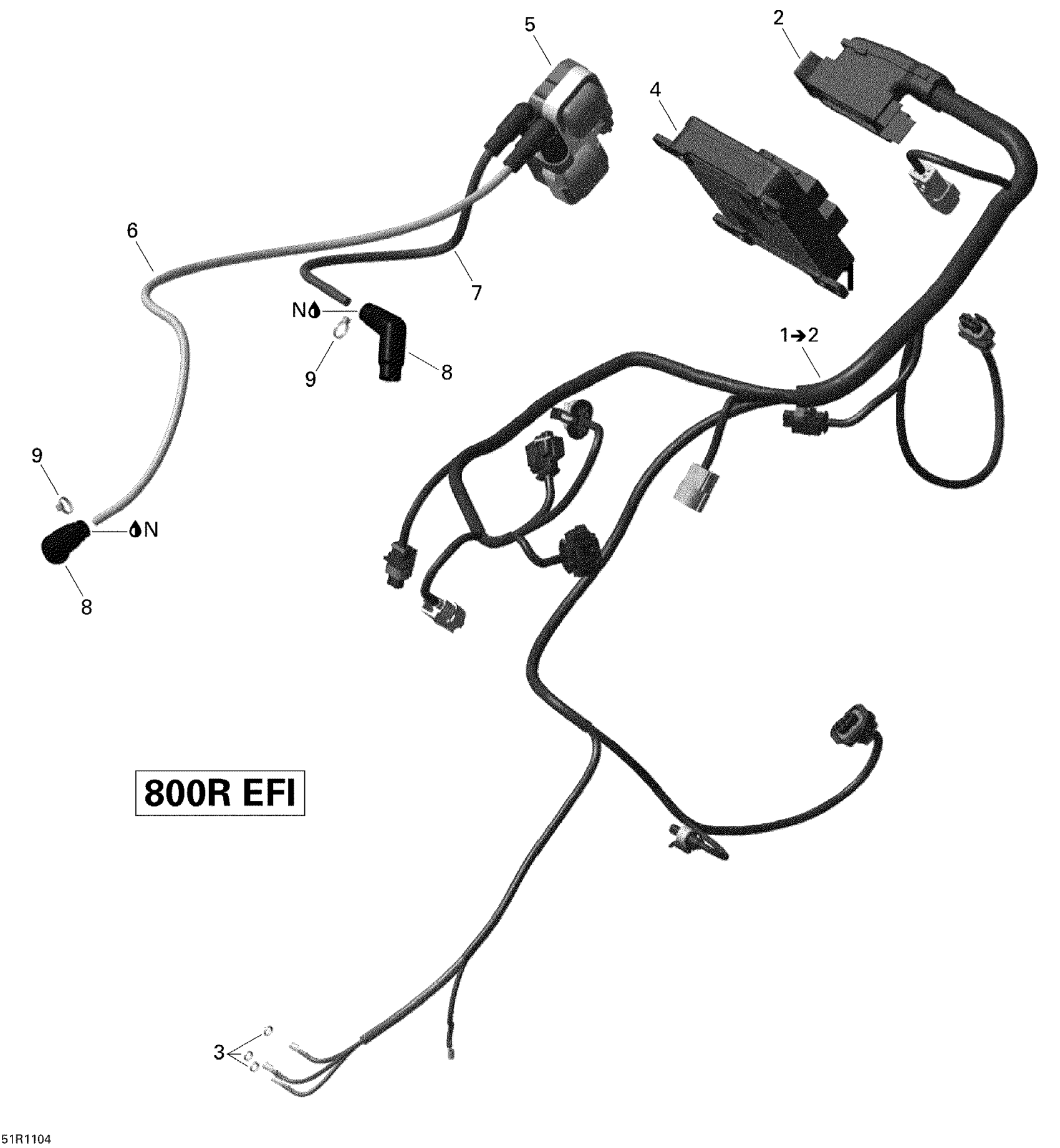

Can-Am Outlander Max 800R EFI, 2011 Engine Harness And Electronic Module Outlander Diagram

#

Description

Price

1

Engine Wiring Harness | Includes 1 to 2

420665903

Unavailable

2

ECM Connector

420664450

$27.49

3

CLAMP - Call your local BRP dealership

420853648

Unavailable

4

ECM, Engine Control Module

420266733

$1,109.99

4

ECM, Engine Control Module

420266733

$1,109.99

4

ECM, Engine Control Module

420266733

$1,109.99

4

ECM, Engine Control Module

420266733

$1,109.99

4

ECM, Engine Control Module

420266733

$1,109.99

4

ECM, ENGINE CONTROL MODULE - Call your local BRP dealership

420266738

$1,429.99

5

Ignition Coil

278001546

$158.99

6

Spark Plug Cable, 790 mm, Rear

420665333

$60.99

7

Spark Plug Cable, 790 mm, Rear

420665333

$60.99

8

Spark Plug Connector

420265248

$31.99

9

Tie Rap

420866710

$5.49

N

Grease, Super Lube

293550030

$28.99
