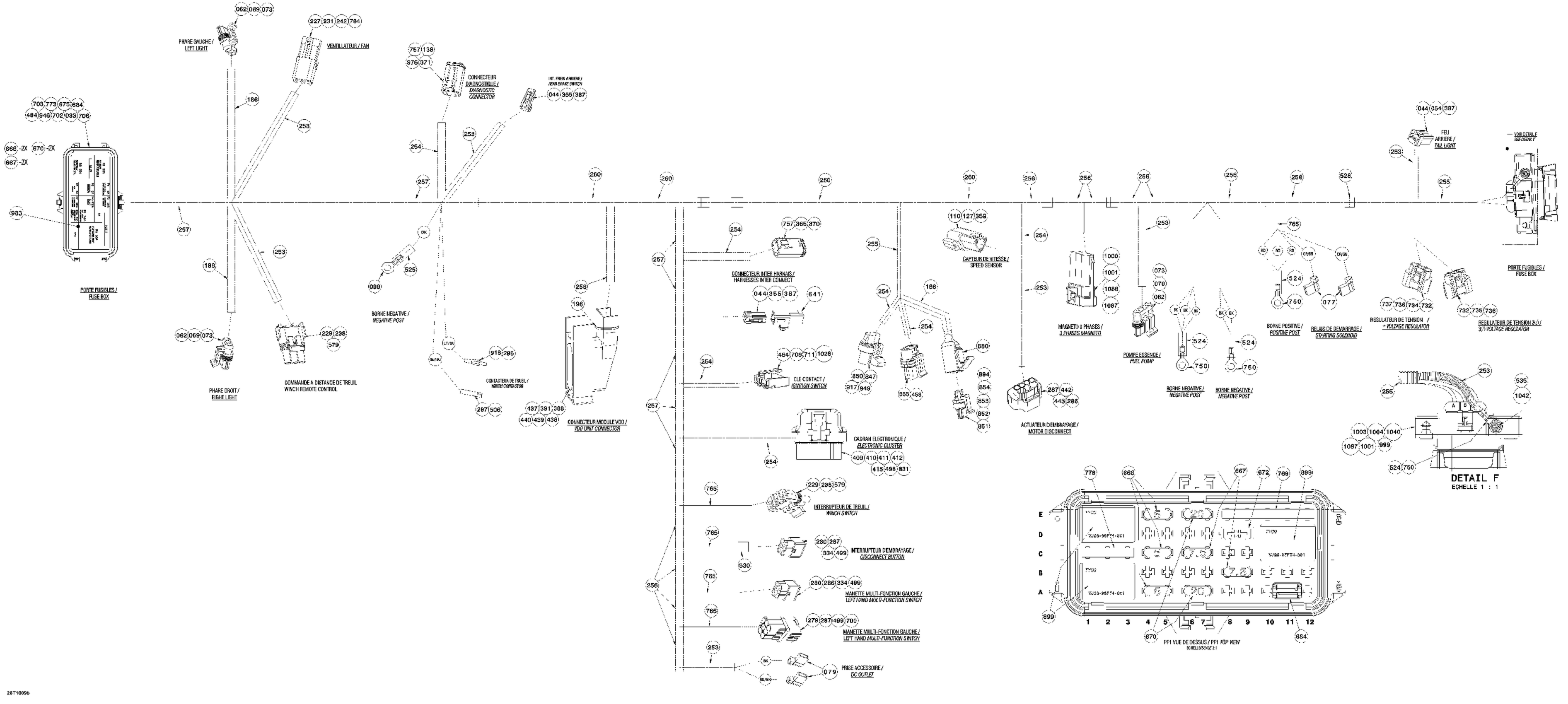

Can-Am Outlander Max 800R EFI, 2010 Main Harness XT, XT-P Diagram

#

Description
Price

1

WIRING HARNESS MAIN - Call your local BRP dealership | Includes 1 to 1088

710001686

Unavailable

33

Wire Seal

278000999

$2.55

44

Female Terminal

515175231

$4.12

54

Female Housing, 3 Circuits

515175495

$15.35

62

Female Terminal

278001014

$2.72

69

Female Housing, 3 Circuits

409209600

$35.35

70

Female Housing, 4 Circuits

409209700

$12.97

73

Wire Seal

278001013

$2.72

77

Female Terminal

409010300

$4.12

79

Female Terminal

710000038

$4.60

99

Open Barrel

278000992

$1.79

110

Male Terminal

278000631

$4.12

127

Male Lock, 3 Circuits

409207600

$3.02

138

Sealing Cap

293000052

$2.55

186

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$19.20

196

Tie Wrap 142 mm

293750002

$0.88

227

Male Terminal

409004300

$5.46

229

Female Terminal

278000223

$2.55

231

Female Housing, 2 Circuits

278000217

$7.59

238

Male Housing, 3 Circuits

278000273

$7.59

242

Wire Seal

278000218

$3.48

253

Tubing 6 Mm 3000Mm Long

219704425

$13.14

254

Was 409901700 Tubing (9 mm)

219704399

$79.97

255

Was 409901800 Tubing (13 mm)

219704400

$9.40

256

Tubing 16 Mm 1000Mm Long

219704408

$6.23

257

Was 409901600 Tubing 19mm

219704398

$89.97

260

Was 515175319 Tubing 22 mm

219704423

$11.84

279

Male Terminal

409011300

$5.78

280

Female Terminal

409012100

$3.73

286

Seal

409012300

$4.38

287

Cap

710000080

$6.48

295

Insulated Sheath

278001008

$3.20

297

Insulated Sheath

278001007

$3.22

301

Diode

409012700

$10.83

333

Fuse Holder

278001325

$8.57

334

Female Housing, 6 Circuits

710000081

$8.29

355

Female Housing, 2 Circuits

515175658

$15.35

359

Male Housing

515175666

$13.05

365

MALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

515175672

Unavailable

370

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

515175677

Unavailable

371

Male Wedge, 6 Circuits

515175678

$5.11

387

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

388

FEMALE TERMINAL - Call your local BRP dealership

278001750

Unavailable

391

MALE HOUSING, 41 CIRCUITS - Call your local BRP dealership

278001751

Unavailable

409

Plug

515175812

$1.70

410

Female Housing, 24 Circuits

515175801

$9.00

411

Retainer Block

515175802

$10.66

412

Wire Seal

515175803

$2.41

415

Female Terminal

515175806

$0.81

437

SEAL - Call your local BRP dealership

515175886

Unavailable

438

Latch

515175883

$7.48

439

LOCK - Call your local BRP dealership

515175884

Unavailable

440

COVER - Call your local BRP dealership

515175885

Unavailable

442

Male Housing, 4 Circuits

710000329

$14.75

443

Female Terminal

710000335

$1.80

458

Female Terminal

710000357

$6.03

464

Female Terminal

710000274

$8.98

484

Seal

415128501

$1.51

498

Female Housing

710000399

$14.02

499

Wire Seal

710000402

$4.42

506

Female Terminal

710000421

$5.46

524

Heat Shrink Tubing 25 mm

512059668

Unavailable

525

SHRINK TUBING - Call your local BRP dealership

710000482

Unavailable

535

PROTECTOR CAP - Call your local BRP dealership

710000496

Unavailable

579

Wire Seal

710000504

$4.60

641

Male Housing, 2 Circuits

710000667

$7.48

666

Little Fuse, 5 Amperes

710000742

$7.24

667

Little Fuse, 7.5 Amperes

710000743

$8.02

670

Little Fuse, 20 Amperes

710000746

$6.77

672

Diode

710000748

$10.83

675

Fuse Box Base Ass´y

415129856

$41.57

684

Fuse Puller

710000781

$8.29

700

Male Terminal Housing, 6 Circuits

710000835

$16.89

702

Female Terminal

710000836

$5.46

703

Female Terminal

710000837

$4.32

706

Cap

710000840

$5.49

709

Lock

710000848

$3.98

7111

Male Housing, 6 Circuits

710000849

$7.55

732

Female Terminal

710000877

$6.32

734

Female Housing, 3 Circuits

710000879

$21.42

735

Housing, 3 Circuits

710000880

$17.52

736

Seal

710000881

$14.27

737

Cap

710000882

$9.19

750

Terminal

710000913

$5.46

757

Female Terminal

278001665

$3.73

764

Clip

710000992

$4.00

769

Bus Bar

278002165

$7.24

773

Fuse Cover

710001026

$17.52

778

Bus Bar

278002165

$7.24

831

Female Terminal

710001131

$7.00

847

HOUSING - Call your local BRP dealership

710001315

Unavailable

849

Wire Seal

710001159

$6.45

850

Female Terminal

710001160

$5.14

851

Housing

710001161

$9.15

852

Lock

710001162

$3.28

853

Wire Seal

710001163

$5.10

854

Female Terminal

710001164

$5.92

880

Cap

710001114

$16.89

889

Seal

710001233

$2.55

890

Terminal

710001229

$3.02

894

Cap

710001225

$7.27

899

Relay, 30 AMP | Obsolete. ATV order 515176774

278002168

Unavailable

917

Lock

710001323

$6.15

918

Female Terminal

278002261

$6.20

946

Foam

278002172

$5.49

976

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$19.97

983

FUSE LOGO - Call your local BRP dealership

710001567

Unavailable

999

Not Available As Spare Part - Friction Washer

Unavailable

1000

HOUSING - Call your local BRP dealership

710001634

Unavailable

1001

LOCK - Call your local BRP dealership

710001633

Unavailable

1002

Terminal

710001630

$1.83

1003

Terminal

710001636

$3.98

1004

SEAL - Call your local BRP dealership

710001637

Unavailable

1040

Fuse Box

710001711

Unavailable

1040a

Fuse, 40 AMP

710001047

$11.52

1040b

Fuse 30 amp.

710001200

$7.37

1042

Hex. Flange Elastic Nut M6

233261494

$1.26

1087

Terminal Joint

710001905

$1.83

1088

Terminal

710001906

$2.98
