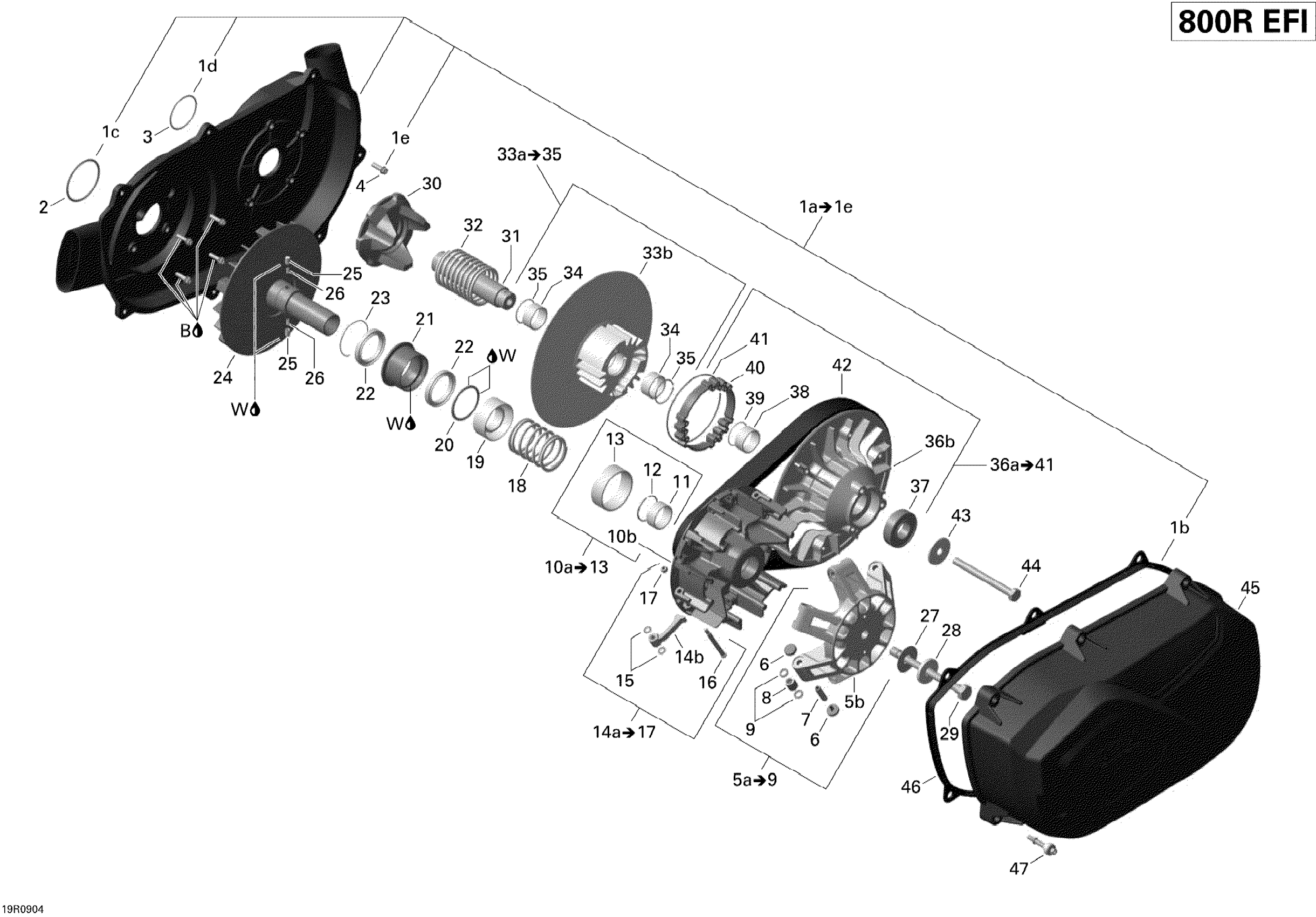

Can-Am Outlander Max 800R EFI, 2009 Transmission Outlander Diagram

#

Description
Price

1a

CVT Air Guide Kit

420611407

$117.88

1b

Gasket

420430126

$38.78

1c

O-Ring

420430408

$4.87

1d

O-Ring

420631089

$4.87

1e

Hex.Screw M6 X 20

420441311

$4.87

2

O-Ring

420430408

$4.87

3

O-Ring

420631089

$4.87

4

Hex.Screw M6 X 20

420441311

$4.87

5a

Governor Cup Ass'y | Includes 6 to 9

420280522

$241.76

5b

Not Available As Spare Part - Friction Washer

Unavailable

6

Slider Shoe Set

420281296

$41.01

7

Roller Axle

417223257

$6.37

8

Roller

417223767

$7.15

9

Roller

417223767

$7.15

10a

Outer Haft

420280467

$188.03

10b

Not Available As Spare Part - Friction Washer

Unavailable

11

Not Available As Spare Part - Friction Washer

Unavailable

12

Not Available As Spare Part - Friction Washer

Unavailable

13

Not Available As Spare Part - Friction Washer

Unavailable

14a

Centrifugal Lever Kit | Includes 14 to 17

420248495

$174.60

14b

Not Available As Spare Part - Friction Washer

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Not Available As Spare Part - Friction Washer

Unavailable

18

Compression Spring, Drive Pulley

420238610

$25.34

19

Seat Spring

420627578

$32.81

20

Friction Washer

420460430

$12.37

21

Drive Pulley Clutch

420257195

$109.24

22

Ball Bearing

420632377

$46.24

23

Retaining Ring

420245951

$5.39

24

Inner Half

420280374

$170.12

25

Spring Sleeve

420229577

$17.13

26

Spring

420239134

$2.90

27

Thrust Washer

420627920

$6.93

28

Spring Washer

420627768

$18.63

29

Hex. Screw M12 X 140

420641859

$23.10

30

Cam

420280473

$128.33

31

Driven Pulley Shaft

420220914

$115.64

32

Compression Spring

420238176

$32.06

33a

Inner Half Ass'y | Includes 33a to 35

420280499

$294.49

33b

Not Available As Spare Part - Friction Washer

Unavailable

34

Not Available As Spare Part - Friction Washer

Unavailable

35

Not Available As Spare Part - Friction Washer

Unavailable

36a

Outer Half Pulley Ass'y | Includes 27 to 32

420280178

$341.76

36b

Not Available As Spare Part - Friction Washer

Unavailable

37

Ball Bearing

420932421

$26.09

38

Not Available As Spare Part - Friction Washer

Unavailable

39

Not Available As Spare Part - Friction Washer

Unavailable

40

Torque Gear

420660124

$21.61

41

Retaining Ring

420245911

$5.31

42

V-Belt

422280366

$167.13

43

Thrust Washer

420627594

$11.81

44

Hex. Screw M10 X 110

420441485

$11.37

45

Variator Cover

420611397

$196.99

46

Gasket

420430126

$38.78

47

Allen Screw M6 x 30,5

420440561

$4.21

B

Loctite 243, 10 ml

293800060

$21.49

W

Isoflex Grease, TOPAS NB52, 50 g

293550021

$54.14
