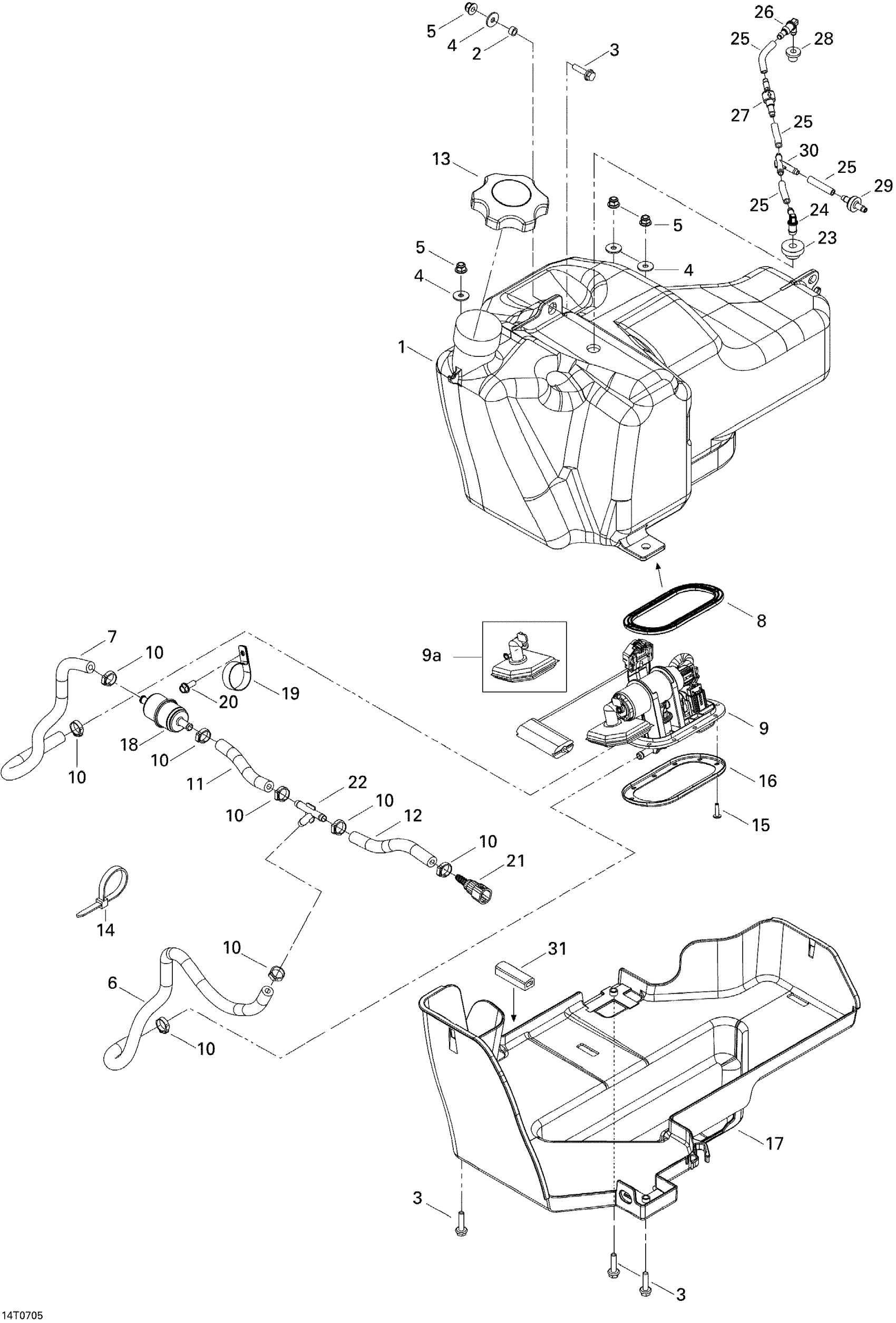

Can-Am Outlander MAX 800 XT 4 X 4, 2007 Fuel System Diagram

#

Description
Price

1

Fuel Tank

709000084

Unavailable

2

Bushing | DS 650 X

293900104

$5.50

3

Hex. Flange Screw M6 X 25

207662544

$0.64

4

Flat Washer

250200082

$0.42

5

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

6

FUEL LINE - Call your local BRP dealership

709000516

Unavailable

7

FUEL LINE - Call your local BRP dealership

709000516

Unavailable

8

Joint Etanche *Gasket

709000540

$36.99

9

Fuel Pump

703500771

$361.99

9a

Not Available As Spare Part - Friction Washer

Unavailable

10

Oetiker Clamp

293650046

$2.89

11

FUEL LINE - Call your local BRP dealership

709000516

Unavailable

12

FUEL LINE - Call your local BRP dealership

709000516

Unavailable

13

Fuel Tank Cap

513033025

$24.49

14

Tie-Rap 180 mm

414115200

$0.11

15

Torx Screw M4 X 16

250000750

$1.68

16

Pump Ring

709000170

$17.83

17

TANK PROTECTOR - Call your local BRP dealership

709000207

Unavailable

18

Fuel Filter

513034047

$21.99

19

Open Clamp

513033047

$5.19

20

Hex. Flange Screw M6 X 12

210261250

$1.90

21

Female Quick Fitting Ass'y

709000125

$15.49

22

Y-Fitting, 5/16''

293710136

$6.49

23

Grommet

293830136

$10.07

24

Male Connector

414580700

$4.12

25

Polyurethane Hose 10000Mm Long

219704410

$56.99

26

Elbow Male Connector

414580600

$4.23

27

Check Valve

275500505

$31.99

28

Grommet

293720029

$1.59

29

Check Valve

275500398

$10.99

30

Y-Fitting

293710059

$9.69

31

Was 293200017 Neoprene Seal

219704365

$149.99
