01- Intake Manifold And Throttle Body OUTLANDER 800EFI

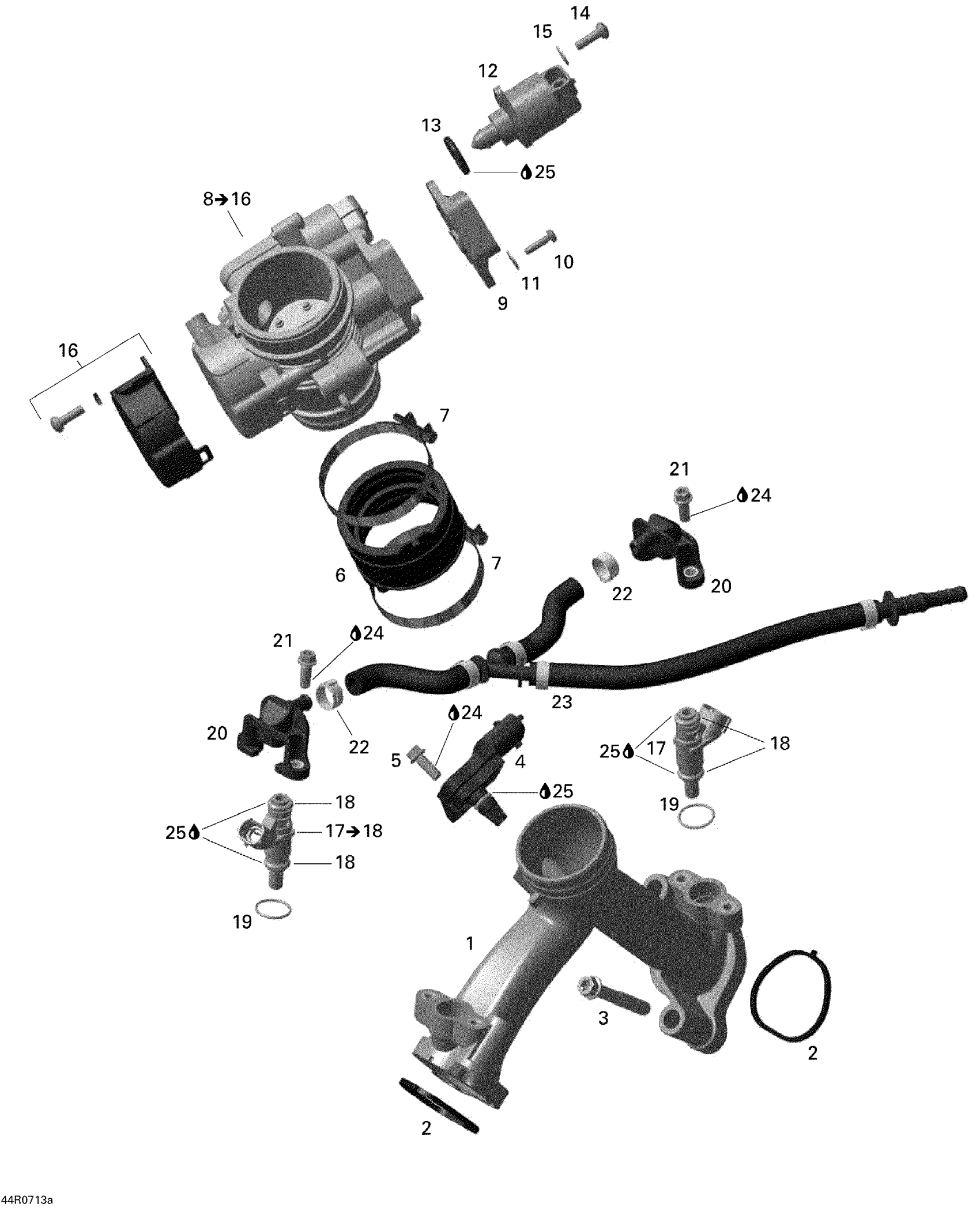

Can-Am Outlander MAX 800 XT 4 X 4, 2007 01- Intake Manifold And Throttle Body OUTLANDER 800EFI Diagram
#
Description
Price
1
Air Intake Manifold
420667250
Unavailable
2
Gasket
420630640
Unavailable
3
Torx Flange Screw M8 X 55
420641213
Unavailable
4
Pressure And Temperature Sensor
707000995
Unavailable
5
Torx Flange Screw M6 X 16
420641048
Unavailable
6
Intake Adaptor
420267480
Unavailable
7
Clamp
420251480
Unavailable
8
Throttle Body Ass'y | Includes 8 to 16
420685326
Unavailable
9
Position Sensor
420866120
Unavailable
10
Phillips Screw M4 X 16
208641660
Unavailable
11
Flat Washer 4 mm, Stainless
234042600
Unavailable
12
Idle Air Control Valve
420665941
Unavailable
13
O-Ring
420631780
Unavailable
14
Binding Head Screw M5 X 16
420440911
Unavailable
15
Snap Ring
420845710
Unavailable
16
Cover Kit
420281540
Unavailable
17
Injection Valve
420874402
Unavailable
18
O-Ring
420631220
Unavailable
19
O-Ring
420631296
Unavailable
20
Fuel Rail
420874410
Unavailable
21
Torx Flange Screw M6 X 16
420641048
Unavailable
22
Clamp
420851458
Unavailable
23
FUEL INJECTOR LINE ASS'Y - Call your local BRP dealership
420874712
Unavailable
24
Loctite 243, 10 ml
293800060
Unavailable
25
Not Available As Spare Part - Friction Washer
Unavailable
