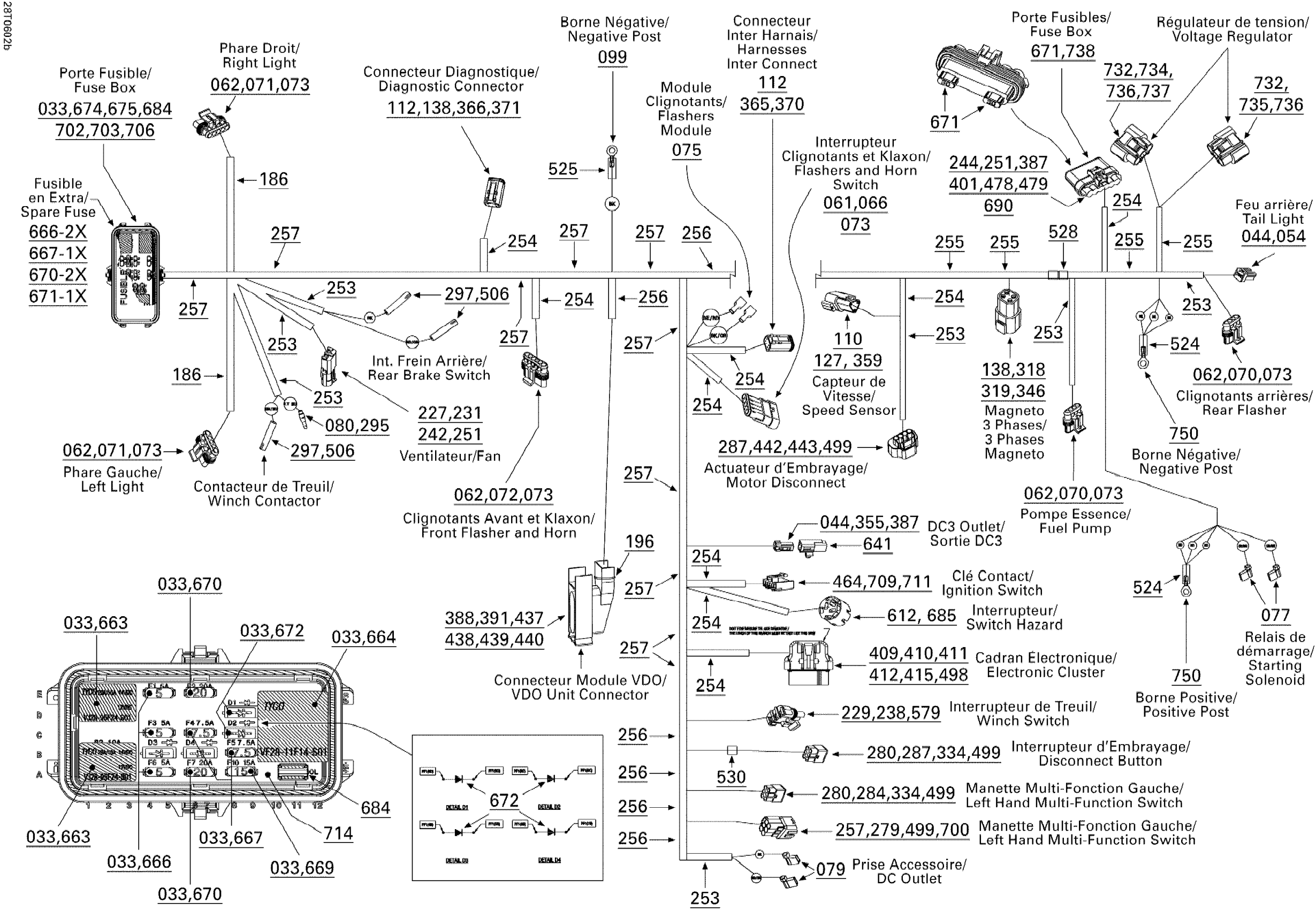

Can-Am Outlander MAX 800 XT 4 X 4, 2006 10- Main Harness Europe Diagram
#
001
MAIN HARNESS ASS'Y - Call your local BRP dealership | Includes 001 to 750
710000846
Unavailable
033
Wire Seal
278000999
Unavailable
044
Female Terminal
515175231
Unavailable
054
Female Housing, 3 Circuits
515175495
Unavailable
061
Male Terminal | Europe Models
409012900
Unavailable
062
Female Terminal
278001014
Unavailable
066
Housing | Europe Models
710000779
Unavailable
070
Female Housing, 4 Circuits
409209700
Unavailable
071
Connector
710000780
Unavailable
072
CONNECTOR - Call your local BRP dealership
710000816
Unavailable
073
Wire Seal
278001013
Unavailable
075
Female Terminal
409010700
Unavailable
077
Female Terminal
409010300
Unavailable
079
Female Terminal
710000038
Unavailable
080
Male Terminal
278000230
Unavailable
099
Open Barrel
278000992
Unavailable
110
Male Terminal
278000631
Unavailable
112
Female Terminal
278000632
Unavailable
127
Male Lock, 3 Circuits
409207600
Unavailable
138
Sealing Cap
293000052
Unavailable
186
Vinyl Tubing, Low Temp 3000Mm Long
219704424
Unavailable
196
Tie Wrap 142 mm
293750002
Unavailable
227
Male Terminal
409004300
Unavailable
229
Female Terminal
278000223
Unavailable
231
Female Housing, 2 Circuits
278000217
Unavailable
238
Male Housing, 3 Circuits
278000273
Unavailable
242
Wire Seal
278000218
Unavailable
244
Wire Seal
278000216
Unavailable
251
CLIP - Call your local BRP dealership
409014200
Unavailable
253
Tubing 6 Mm 3000Mm Long
219704425
Unavailable
254
Was 409901700 Tubing (9 mm)
219704399
Unavailable
255
Was 409901800 Tubing (13 mm)
219704400
Unavailable
256
Tubing 16 Mm 1000Mm Long
219704408
Unavailable
257
Was 409901600 Tubing 19mm
219704398
Unavailable
279
Male Terminal
409011300
Unavailable
280
Female Terminal
409012100
Unavailable
284
Seal
409012300
Unavailable
287
Cap
710000080
Unavailable
295
Insulated Sheath
278001008
Unavailable
297
Insulated Sheath
278001007
Unavailable
318
FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership
278001477
Unavailable
319
Male Terminal
515175568
Unavailable
334
Female Housing, 6 Circuits
710000081
Unavailable
346
MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership
278001478
Unavailable
355
Female Housing, 2 Circuits
515175658
Unavailable
359
Male Housing
515175666
Unavailable
365
MALE HOUSING, 4 CIRCUITS - Call your local BRP dealership
515175672
Unavailable
366
Male Housing, 6 Circuits
515175673
Unavailable
370
MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership
515175677
Unavailable
371
Male Wedge, 6 Circuits
515175678
Unavailable
387
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
388
FEMALE TERMINAL - Call your local BRP dealership
278001750
Unavailable
391
MALE HOUSING, 41 CIRCUITS - Call your local BRP dealership
278001751
Unavailable
401
WIRE SEAL - Call your local BRP dealership
278001505
Unavailable
409
Plug
515175812
Unavailable
410
Female Housing, 24 Circuits
515175801
Unavailable
411
Retainer Block
515175802
Unavailable
412
Wire Seal
515175803
Unavailable
415
Female Terminal
515175806
Unavailable
437
SEAL - Call your local BRP dealership
515175886
Unavailable
438
Latch
515175883
Unavailable
439
LOCK - Call your local BRP dealership
515175884
Unavailable
440
COVER - Call your local BRP dealership
515175885
Unavailable
442
Male Housing, 4 Circuits
710000329
Unavailable
443
Female Terminal
710000335
Unavailable
464
Female Terminal
710000274
Unavailable
478
Housing, 6 Circuits
710000888
Unavailable
479
Lock
710000889
Unavailable
498
Female Housing
710000399
Unavailable
499
Wire Seal
710000402
Unavailable
506
Female Terminal
710000421
Unavailable
524
Heat Shrink Tubing 25 mm
512059668
Unavailable
525
SHRINK TUBING - Call your local BRP dealership
710000482
Unavailable
528
Not Available As Spare Part - Friction Washer
Unavailable
530
Coding Tape, Red
710000488
Unavailable
579
Wire Seal
710000504
Unavailable
612
Female Housing
710000562
Unavailable
641
Male Housing, 2 Circuits
710000667
Unavailable
663
Relay, 30 AMP
515176774
Unavailable
664
Relay, 50 AMP
515176775
Unavailable
666
Little Fuse, 5 Amperes
710000742
Unavailable
667
Little Fuse, 7.5 Amperes
710000743
Unavailable
669
Little Fuse, 15 Ampere
710000745
Unavailable
670
Little Fuse, 20 Amperes
710000746
Unavailable
671
Little Fuse, 30 Amperes
710000747
Unavailable
672
Diode
710000748
Unavailable
674
Fuse Cover
710001026
Unavailable
675
Fuse Box Base Ass´y
415129856
Unavailable
684
Fuse Puller
710000781
Unavailable
685
FEMALE TERMINAL - Call your local BRP dealership
710000782
Unavailable
690
Female Terminal
710000890
Unavailable
700
Male Terminal Housing, 6 Circuits
710000835
Unavailable
702
Female Terminal
710000836
Unavailable
703
Female Terminal
710000837
Unavailable
706
Cap
710000840
Unavailable
709
Lock
710000848
Unavailable
711
Male Housing, 6 Circuits
710000849
Unavailable
714
DECAL, FUSE RELAY - Call your local BRP dealership
710000855
Unavailable
732
Female Terminal
710000877
Unavailable
734
Female Housing, 3 Circuits
710000879
Unavailable
735
Housing, 3 Circuits
710000880
Unavailable
736
Seal
710000881
Unavailable
737
Cap
710000882
Unavailable
738
Cover
710000897
Unavailable
750
Terminal
710000913
Unavailable
