- Outlander MAX 800 XT 4 X 4, 2006
10- Electrical Accessories Europe

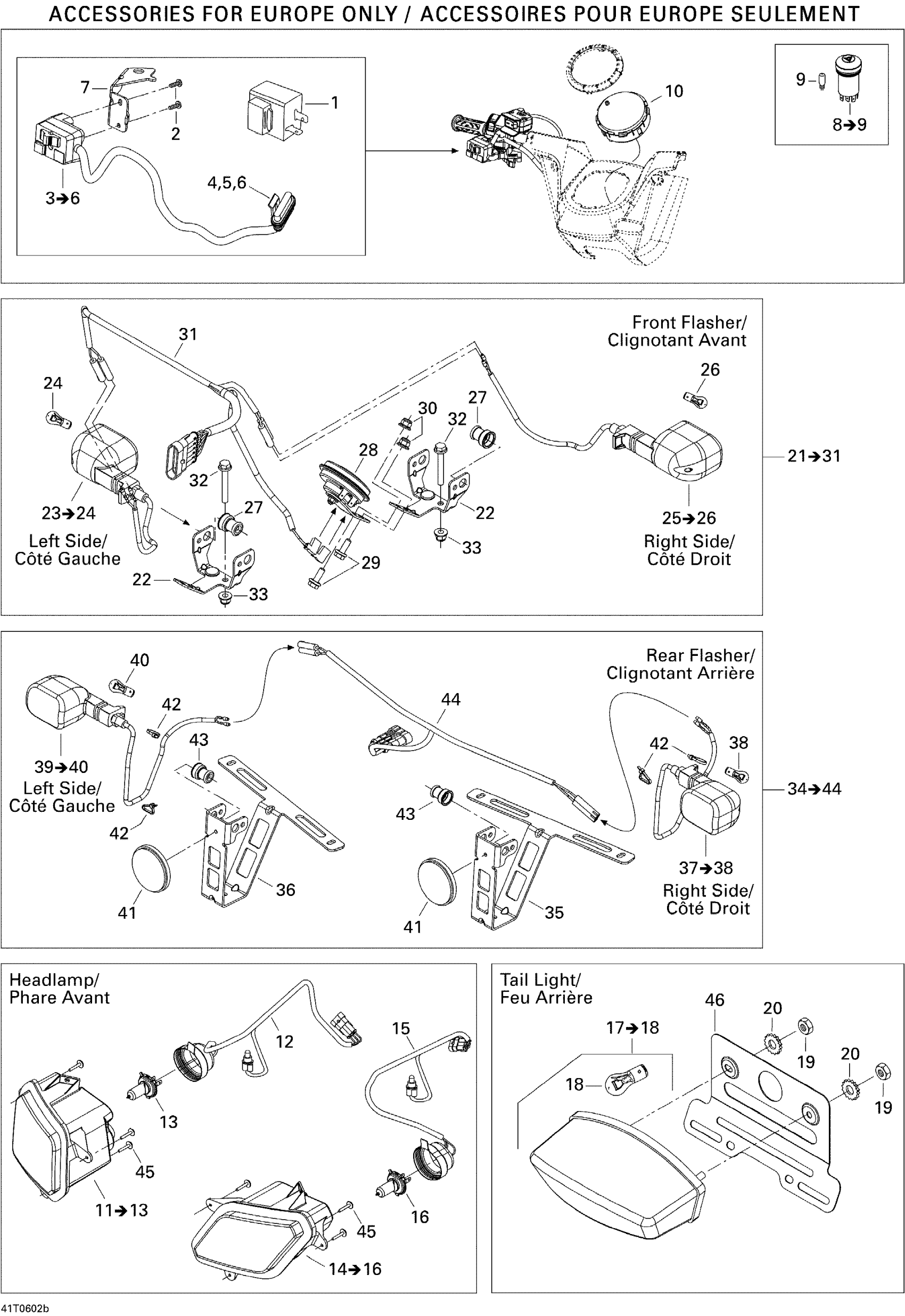

Can-Am Outlander MAX 800 XT 4 X 4, 2006 10- Electrical Accessories Europe Diagram
#
1
FLASHER UNIT - Call your local BRP dealership | Europe Models
710000581
Unavailable
2
PHILLIPS SCREW M4 X 8 - Call your local BRP dealership
250000078
Unavailable
3
FLASHER SWITCH - Call your local BRP dealership | Includes 3 to 6
710000904
Unavailable
4
Connector
710000780
Unavailable
5
Female Terminal
278001014
Unavailable
6
Wire Seal
278001013
Unavailable
7
Switch Support
710000905
Unavailable
8
EMERGENCY SWITCH - Call your local BRP dealership | Includes 8 to 9 / Europe
710000367
Unavailable
9
EMERGENCY SWITCH LIGHT BULB - Call your local BRP dealership | Europe
710000661
Unavailable
10
Calibrated Speedometer
710000920
Unavailable
11
RH Headlamp Ass'y | Includes 11 to 13
710000861
Unavailable
12
Headlamp Harness
710000923
Unavailable
13
Bulb, 12V 35/35W
710000871
Unavailable
14
LH Headlamp Ass'y | Includes 14 to 16
710000862
Unavailable
15
Headlamp Harness
710000923
Unavailable
16
Bulb, 12V 35/35W
710000871
Unavailable
17
Tail Light Ass'y | Europe Models, Includes 53 To 54
710000760
Unavailable
18
Bulb
520000758
Unavailable
19
Hex. Nut M6
232061600
Unavailable
20
External Serrated Lock Washer 6 mm
234461608
Unavailable
21
Not Available As Spare Part - Friction Washer
Unavailable
22
Bracket
710000893
Unavailable
23
Flasher | Europe Models, Includes 60 To 61
710000546
Unavailable
24
Not Available As Spare Part - Friction Washer
Unavailable
25
Flasher | Europe Models, Includes 60 To 61
710000547
Unavailable
26
Not Available As Spare Part - Friction Washer
Unavailable
27
CAP GUARD - Call your local BRP dealership | Europe Models
710001826
Unavailable
28
Horn | Europe Models
710000783
Unavailable
29
Hex. Flange Screw M6 X 16
207661644
Unavailable
30
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
31
Front Fender Harness | Europe Models, Includes 81 To 89
710000814
Unavailable
32
Hex. Flange Screw M6 X 45
207664544
Unavailable
33
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
34
Not Available As Spare Part - Friction Washer
Unavailable
35
RH FLASHER SUPPORT BRACKET - Call your local BRP dealership
710000865
Unavailable
36
LH Flasher Support Bracket
710000867
Unavailable
37
Flasher | Europe Models, Includes 60 To 61
710000546
Unavailable
38
Not Available As Spare Part - Friction Washer
Unavailable
39
Flasher | Europe Models, Includes 60 To 61
710000547
Unavailable
40
Not Available As Spare Part - Friction Washer
Unavailable
41
REFLECTOR - Call your local BRP dealership | Europe Models
710000775
Unavailable
42
Tie Wrap 94 mm | 4X4
293750001
Unavailable
43
CAP GUARD - Call your local BRP dealership | Europe Models
710001826
Unavailable
44
Rear Fender Harness
710000931
Unavailable
45
Plastite Screw Type K-40, M4 X 25
250000101
Unavailable
46
PLATE SUPPORT - Call your local BRP dealership
705002230
Unavailable
