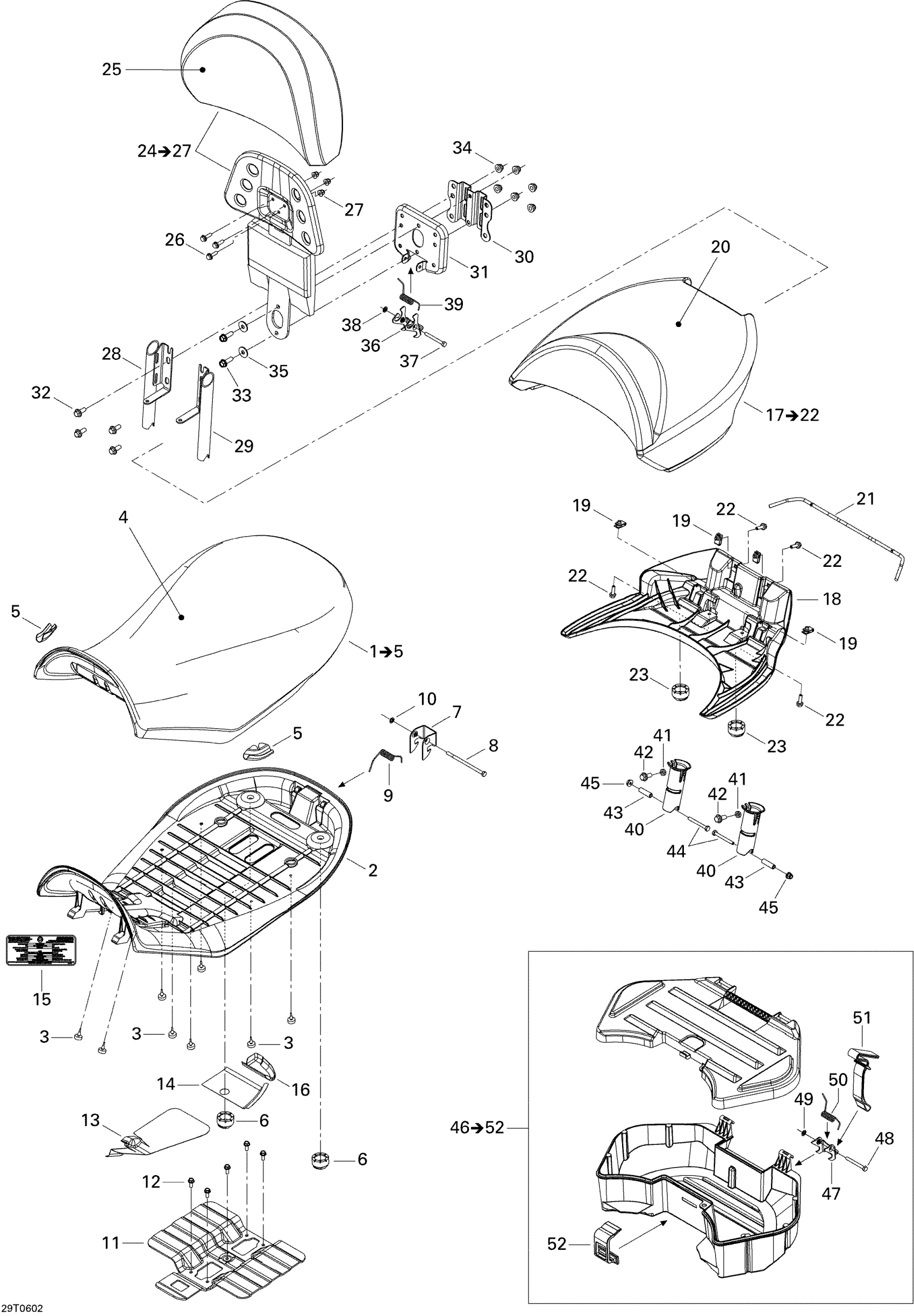

Can-Am Outlander MAX 800 XT 4 X 4, 2006 09- Seat Diagram
#
1
Seat Assembly | Includes 1 to 6
708001649
Unavailable
2
Not Available As Spare Part - Friction Washer
Unavailable
3
Rubber Stopper
708000759
Unavailable
4
Seat Cover
708000538
Unavailable
5
SEAT CORNER, BLACK - Call your local BRP dealership
708000127
Unavailable
6
Bumper Rubber
708000760
Unavailable
7
Latch, Black
708000144
Unavailable
8
Hex. Screw M6 X 110
230061044
Unavailable
9
Spring
708000369
Unavailable
10
Push Nut
732610072
Unavailable
11
REINFORCEMENT SEAT - Call your local BRP dealership
708000817
Unavailable
12
Hex. Flange Screw M6 X 12
210261250
Unavailable
13
REFLECTING SHEET - Call your local BRP dealership
708000956
Unavailable
14
REFLECTING SHEET - Call your local BRP dealership
708000470
Unavailable
15
Emission Label
704900932
Unavailable
16
HEAT SHIELD - Call your local BRP dealership
708000957
Unavailable
17
Rear Seat Ass'y | Includes 16 to 20
708000805
Unavailable
18
Not Available As Spare Part - Friction Washer
Unavailable
19
Panel Nut M6 X 1.0
250100198
Unavailable
20
Seat Cover
708000457
Unavailable
21
LATCH HANDLE - Call your local BRP dealership
708000822
Unavailable
22
Hex. Flange Screw M6 X 20
207662044
Unavailable
23
Bumper Rubber
708000760
Unavailable
24
Backrest Ass'y
708000809
Unavailable
25
Backrest Cover
708000465
Unavailable
26
Hex. Flange Screw M6 X 20
207662044
Unavailable
27
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
28
LH BACKREST STEM - Call your local BRP dealership
708000439
Unavailable
29
RH BACKREST STEM - Call your local BRP dealership
708000443
Unavailable
30
REAR PLATE - Call your local BRP dealership
708000855
Unavailable
31
FRONT PLATE - Call your local BRP dealership
708000446
Unavailable
32
Hex. Flange Screw M8 X 20
207682044
Unavailable
33
Hex. Flange Screw M8 X 25
207682544
Unavailable
34
Hex. Flange Elastic Nut M8
233281414
Unavailable
35
Flat Washer 8 mm
234082410
Unavailable
36
LATCH - Call your local BRP dealership
708000448
Unavailable
37
Hex. Screw M6 X 55
207065544
Unavailable
38
Push Nut
732610072
Unavailable
39
Spring
708000369
Unavailable
40
ROD GUIDE - Call your local BRP dealership
708000461
Unavailable
41
Hex. Jam Nut M8
232180600
Unavailable
42
Hex. Flange Screw M8 X 20
207682044
Unavailable
43
INNER BUSHING - Call your local BRP dealership
708000462
Unavailable
44
HEX. CAP SCREW M6 X 50 - Call your local BRP dealership
207065044
Unavailable
45
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
46
BOX ASS'Y - Call your local BRP dealership | Includes 41 to 47
708200119
Unavailable
47
LATCH - Call your local BRP dealership
708200066
Unavailable
48
Hex. Screw M6 X 55
207065544
Unavailable
49
Push Nut
732610072
Unavailable
50
Spring
708000369
Unavailable
51
BELT - Call your local BRP dealership
510004495
Unavailable
52
Cover Latch
708200120
Unavailable
