- Outlander MAX 800 XT 4 X 4, 2006
09- Body And Accessories 1

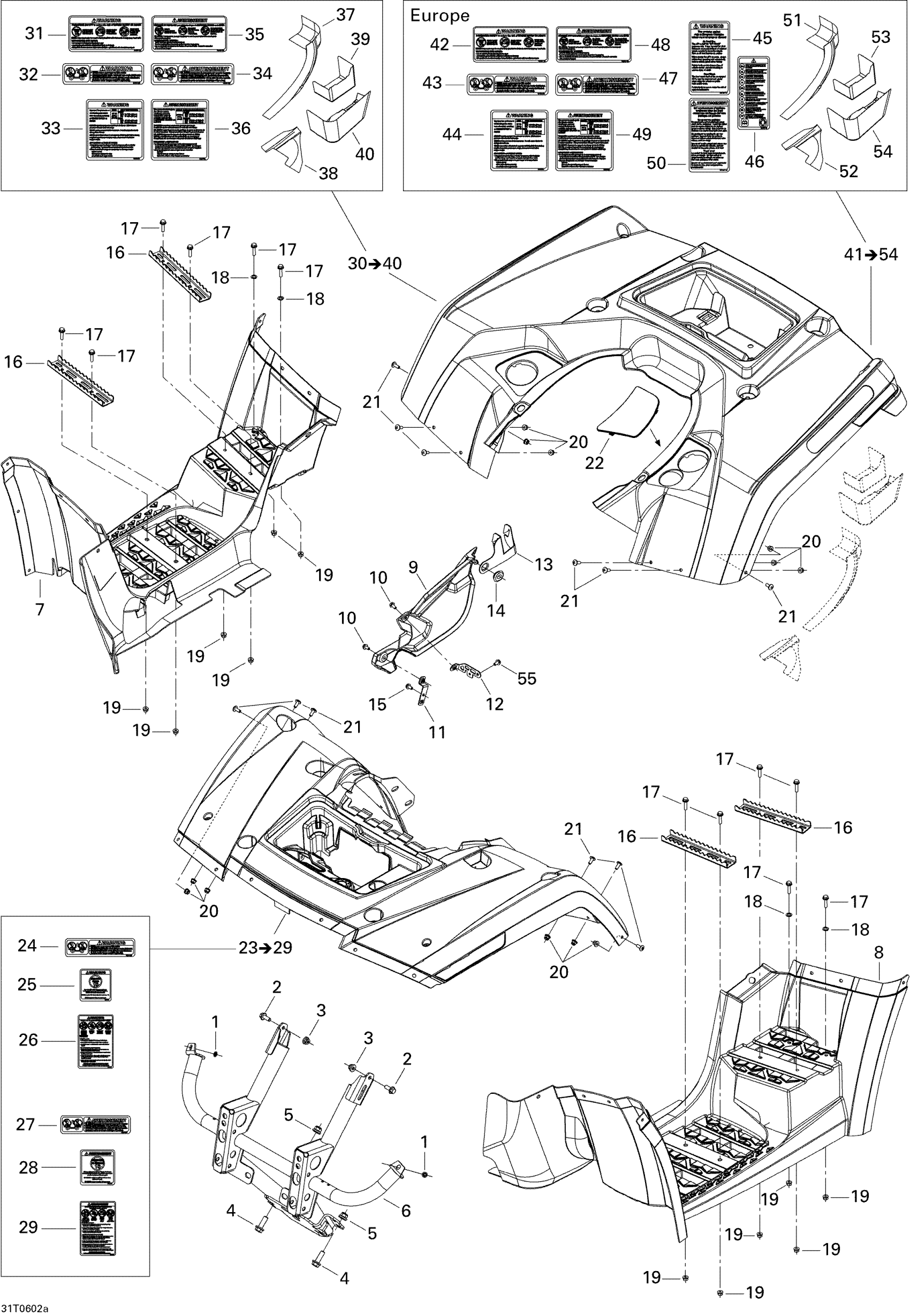

Can-Am Outlander MAX 800 XT 4 X 4, 2006 09- Body And Accessories 1 Diagram
#
1
Push Nut
732610072
Unavailable
2
Hex. Flange Screw M8 X 20
207682044
Unavailable
3
Hex. Flange Elastic Nut M8
233281414
Unavailable
4
Hex. Flange Screw M10 X 30
207603044
Unavailable
5
Hex. Flange Elastic Nut M10
233201414
Unavailable
6
Front Bumper
705003196
Unavailable
7
RH Footboard
705002487
Unavailable
8
LH Footboard
705003633
Unavailable
9
ENGINE COVER - Call your local BRP dealership
705003839
Unavailable
10
Hex. Flange Screw M6 X 12
210261250
Unavailable
11
Engine Cover Support
705003646
Unavailable
12
Engine Cover Support
705011461
Unavailable
13
ENGINE COVER SUPPORT - Call your local BRP dealership
705002121
Unavailable
14
Oval Washer
705005156
Unavailable
15
Hex. Flange Screw M6 X 12
210261250
Unavailable
16
Footrest
705003648
Unavailable
17
Hex. Flange Screw M6 X 25
207662554
Unavailable
18
Lock Washer M6, Black
234161471
Unavailable
19
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
20
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
21
Torx Screw M6 X 16
250000755
Unavailable
22
LH Rear Body Panel Cap
705017923
Unavailable
23
FRONT FENDER KIT, RED - Call your local BRP dealership | Includes 21 to 27, Viper Red
715000840
Unavailable
23
FRONT FENDER KIT, YELLOW - Call your local BRP dealership | Includes 21 to 27, Yellow
703500589
Unavailable
23
FRONT FENDER KIT, GREEN - Call your local BRP dealership | Includes 21 to 27, Laurentian Green
703500590
Unavailable
24
Warning Decal, Load | English Version
704901089
Unavailable
25
Warning Decal, Under 16 Years Old | English Version
704901753
Unavailable
26
Warning Decal, Death And Injuries | English Version
704901749
Unavailable
27
Warning Decal, Load | French Version
704901090
Unavailable
28
WARNING DECAL, UNDER 16 YEARS OLD - Call your local BRP dealership | French Version
704900436
Unavailable
29
Warning Decall, Death And Injuries | French Version
704900905
Unavailable
30
REAR FENDER KIT, RED - Call your local BRP dealership | Includes 30 to 40, Viper Red B-176
715000854
Unavailable
30
REAR FENDER KIT, YELLOW - Call your local BRP dealership | Includes 30 to 40, Yellow B-190
715000858
Unavailable
30
REAR FENDER, GREEN - Call your local BRP dealership | Includes 30 to 40, Laurentian Green B-241
703500583
Unavailable
31
WARNING DECAL, PASSENGER - Call your local BRP dealership
704901762
Unavailable
32
Warning Decal, Load | English Version
704901089
Unavailable
33
WARNING DECAL, TIRE PRESSURE - Call your local BRP dealership
704901119
Unavailable
34
Warning Decal, Load | French Version
704901090
Unavailable
35
WARNING DECAL, UNDER 12 YEARS OLD - Call your local BRP dealership | French Version
704901122
Unavailable
36
Warning Decal, Tire Pressure | French Version
704901159
Unavailable
37
Reflective Sheet
705002085
Unavailable
38
REFLECTIVE SHEET - Call your local BRP dealership
705002014
Unavailable
39
REFLECTIVE SHEET - Call your local BRP dealership
705002189
Unavailable
40
Reflective Sheet
705002191
Unavailable
41
REAR FENDER KIT, RED - Call your local BRP dealership | Includes 41 to 54, Viper Red B-176, Europe
715000856
Unavailable
41
REAR FENDER KIT, YELLOW - Call your local BRP dealership | Includes 41 to 54, Yellow B-190, Europe
715000860
Unavailable
41
REAR FENDER, GREEN - Call your local BRP dealership | Includes 41 to 54, Laurentian Green B-241, Europe
703500596
Unavailable
42
WARNING DECAL, PASSENGER - Call your local BRP dealership
704901762
Unavailable
43
Warning Decal, Load | English Version
704901089
Unavailable
44
WARNING DECAL, TIRE PRESSURE - Call your local BRP dealership
704901119
Unavailable
45
WARNING DECAL, PUBLIC ROADS USE - Call your local BRP dealership | English Version
704901444
Unavailable
46
WARNING DECAL, MULTILINGUAL - Call your local BRP dealership | Europe
704901177
Unavailable
47
Warning Decal, Load | French Version
704901090
Unavailable
48
WARNING DECAL, UNDER 12 YEARS OLD - Call your local BRP dealership | French Version
704901122
Unavailable
49
Warning Decal, Tire Pressure | French Version
704901159
Unavailable
50
Warning Decal, Public Roads Use | French Version
704901158
Unavailable
51
Reflective Sheet
705002085
Unavailable
52
REFLECTIVE SHEET - Call your local BRP dealership
705002014
Unavailable
53
REFLECTIVE SHEET - Call your local BRP dealership
705002189
Unavailable
54
Reflective Sheet
705002191
Unavailable
55
Hex. Flange Screw M6 X 12, Scotch Grip
207561244
Unavailable
