07- Steering System XT

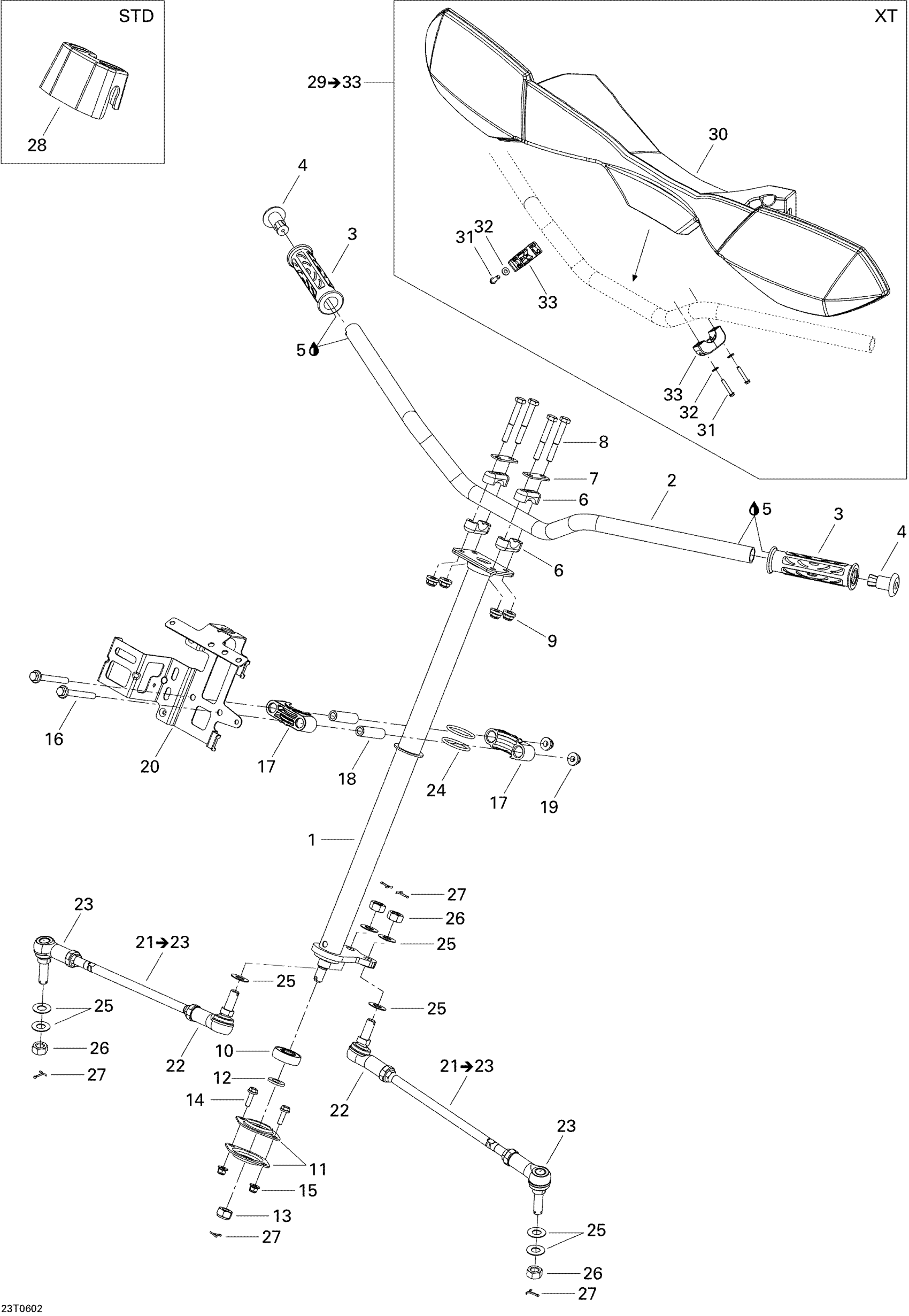

Can-Am Outlander MAX 800 XT 4 X 4, 2006 07- Steering System XT Diagram
#
Description
Price
1
Main Tube, Black
709400971
Unavailable
2
Black, Handle Bar
709401240
Unavailable
3
Handle Grip
709400493
Unavailable
4
END-PIECE - Call your local BRP dealership | DS 650
709400189
Unavailable
5
Loctite 406, 7 Oz
293800100
Unavailable
6
Steering Support
709400919
Unavailable
7
Stiffner
709400509
Unavailable
8
Hex. Screw M8 X 60
207086046
Unavailable
9
Hex. Elastic Flange Nut M8
233281416
Unavailable
10
Ball Bearing
709400439
Unavailable
11
FLANGE, BEARING - Call your local BRP dealership
709400152
Unavailable
12
Flat Washer 12 mm
234021410
Unavailable
13
Hex. Flange Elastic Nut M12
250000047
Unavailable
14
Hex. Flange Screw M6 X 20, Scotch Grip
207562034
Unavailable
15
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
16
Hex. Flange Screw M8 X 70
207687044
Unavailable
17
Half Bushing
709400471
Unavailable
18
BUSHING - Call your local BRP dealership
709400072
Unavailable
19
Hex. Flange Elastic Nut M8
233281414
Unavailable
20
MODULE SUPPORT - Call your local BRP dealership
709400751
Unavailable
21
Tie Rod Ass'y | Includes 21 to 23
709400190
Unavailable
22
Ball Joint, RH Threads
709400487
Unavailable
23
LH Ball Joint
709402303
Unavailable
24
O-Ring
293300068
Unavailable
25
Hardened Washer
706200281
Unavailable
26
Nut M12
250100099
Unavailable
27
Cotter Pin
211400013
Unavailable
28
Not Available As Spare Parts
XXX
Unavailable
29
Not Available As Spare Part - Friction Washer
Unavailable
30
Handle Bar Protector | XT
709400822
Unavailable
31
Hex. Flange Screw K40 X 25
241142560
Unavailable
32
Flat Washer | XT
211200035
Unavailable
33
U-Clamp | XT
517303264
Unavailable
