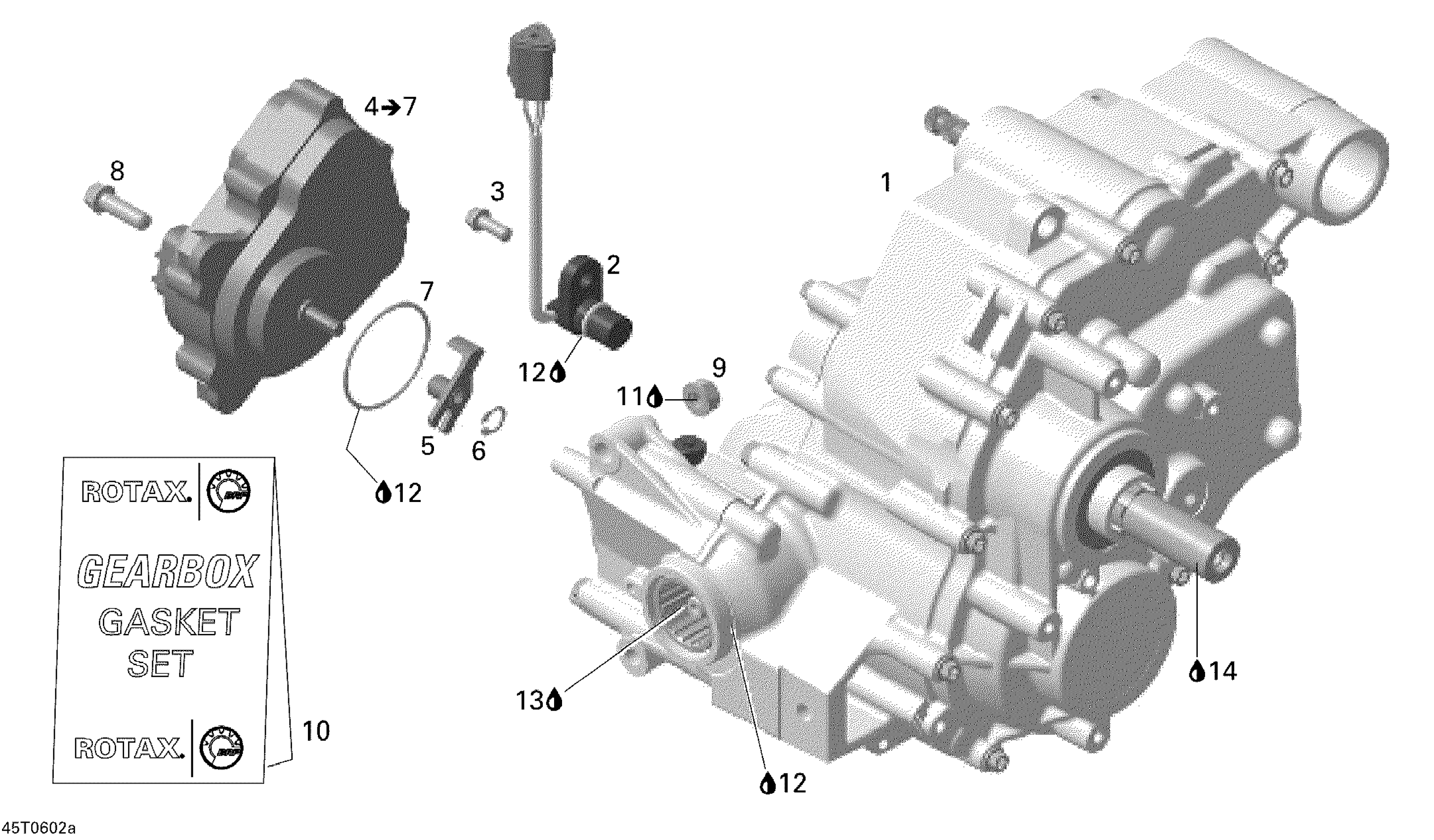

Can-Am Outlander MAX 800 XT 4 X 4, 2006 01- Gear Box 1 Diagram

#

Description

Price

1

Gear Box

420684780

Unavailable

2

Speed Sensor

420265723

Unavailable

3

Torx Flange Screw M6 X 16

420641048

Unavailable

4

Actuator Ass'y 3 pins | Includes 4 to 7

715900614

Unavailable

5

Shifting Fork

415129175

Unavailable

6

Circlip | 4X4

293370042

Unavailable

7

O-Ring

293300117

Unavailable

8

Torx Flange Screw M8 X 25

420440372

Unavailable

9

Hex. Nut M8

420842616

Unavailable

10

Gasket Set, Gearbox

420684134

Unavailable

11

Loctite 243, 10 ml

293800060

Unavailable

12

Grease, Super Lube

293550030

Unavailable

13

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership

293600121

Unavailable

14

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable
