- Outlander MAX 800 XT 4 X 4, 2006
01- Engine And Engine Support

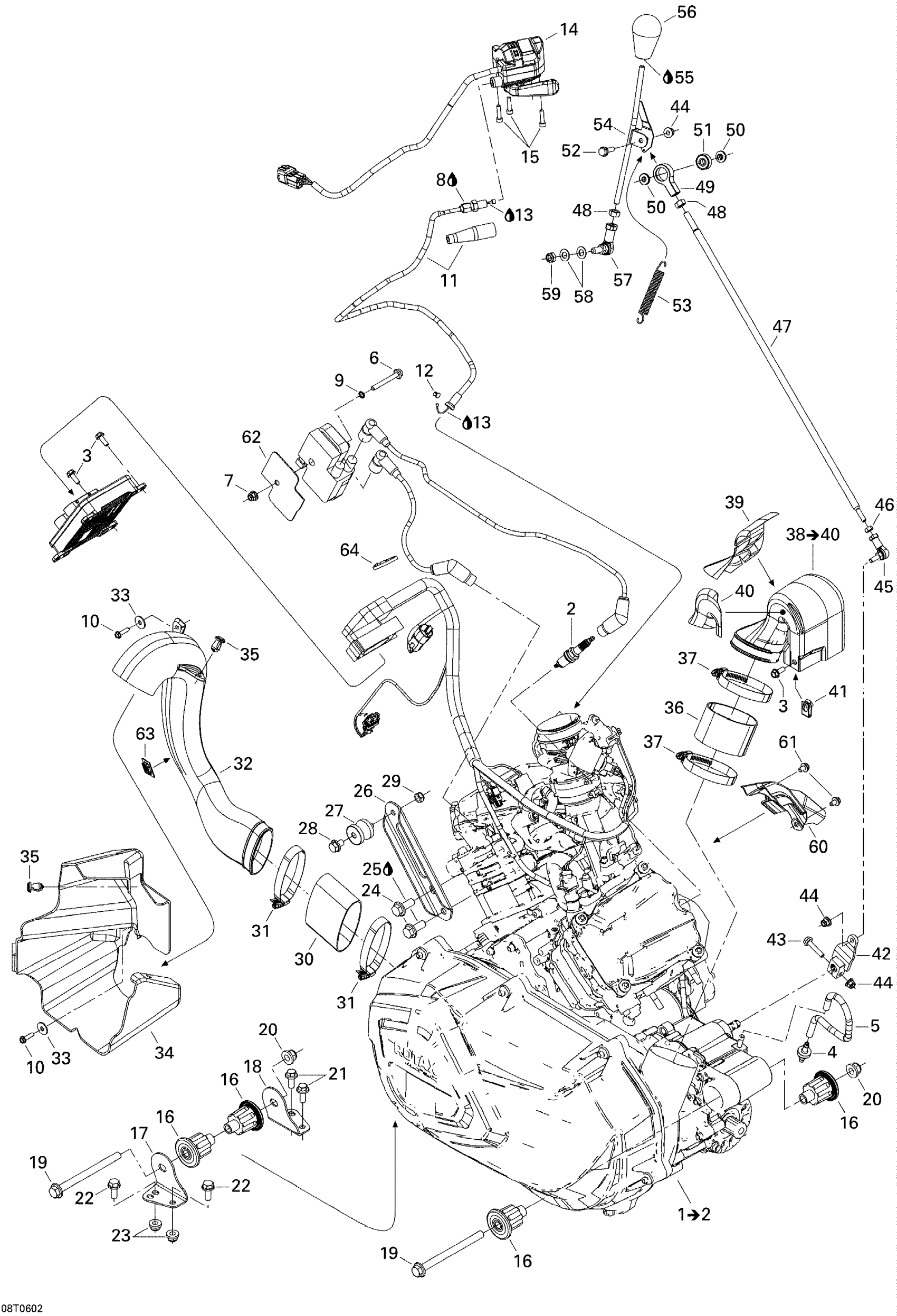

Can-Am Outlander MAX 800 XT 4 X 4, 2006 01- Engine And Engine Support Diagram
#
1
Not Available As Spare Part - Friction Washer
Unavailable
2
Spark Plug, NGK DCP-R8E
715900637
Unavailable
3
Hex. Flange Screw M6 X 16
210261650
Unavailable
4
Check Valve
275500398
Unavailable
5
Hose 6 Mm 15000Mm Long
219704360
Unavailable
6
Hex. Flange Screw M6 X 50
207665044
Unavailable
7
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
8
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
9
External Serrated Lock Washer 6 mm
234461608
Unavailable
10
Screw-Forming Hex.Hd.Fl.Bzn M5 X 20
250000992
Unavailable
11
Throttle Cable
707000393
Unavailable
12
Cable Guide
707000434
Unavailable
13
CABLE LUBRICANT, 400 G - Call your local BRP dealership
293600041
Unavailable
14
Throttle Handle | 4X4
707000595
Unavailable
15
Socket Head Screw M5 X 25
205052588
Unavailable
16
Vibration Damper
707001169
Unavailable
17
ENGINE BRACKET - Call your local BRP dealership
707000802
Unavailable
18
ENGINE BRACKET - Call your local BRP dealership
707000803
Unavailable
19
Hex. Flange Screw M10 X 125
230602546
Unavailable
20
Hex. Flange Elastic Nut M10
233201436
Unavailable
21
Hex. Flange Screw M8 X 20, Scotch Grip
207582044
Unavailable
22
Hex. Flange Screw M8 X 20
207682044
Unavailable
23
Hex. Flange Elastic Nut M8
233281414
Unavailable
24
Hex. Flange Screw M10 X 25
207602544
Unavailable
25
Loctite 243, 10 ml
293800060
Unavailable
26
UPPER ENGINE BRACKET, BLACK - Call your local BRP dealership
707000883
Unavailable
27
Rubber Isolator
707000949
Unavailable
28
Hex. Flange Screw M8 X 12, Scotch Grip
207581244
Unavailable
29
Hex. Elastic Stop Nut M8
232581414
Unavailable
30
FLEXIBLE ADAPTOR - Call your local BRP dealership
707000154
Unavailable
31
Norma Clamp
293650091
Unavailable
32
AIR INLET - Call your local BRP dealership
706600008
Unavailable
33
Flat Washer
250200082
Unavailable
34
WATER DEFLECTOR - Call your local BRP dealership
707000779
Unavailable
35
Tuflok Plastic Rivet
293150230
Unavailable
36
Adaptor
707000789
Unavailable
37
Norma Gear Clamp
293650118
Unavailable
38
AIR OUTLET ASS'Y - Call your local BRP dealership
707000459
Unavailable
39
Reflecting Sheet
707000460
Unavailable
40
Reflecting Sheet
707000467
Unavailable
41
Panel Nut M6 X 1.0
250100198
Unavailable
42
Lever
707000691
Unavailable
43
Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X
207563034
Unavailable
44
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
45
LH BALL JOINT - Call your local BRP dealership
707000545
Unavailable
46
LH HEX. NUT M6 - Call your local BRP dealership
232066414
Unavailable
47
THREADED ROD - Call your local BRP dealership
707000579
Unavailable
48
Hex. Nut M8
232081414
Unavailable
49
PIVOT - Call your local BRP dealership
707000575
Unavailable
50
BUSHING - Call your local BRP dealership
707000576
Unavailable
51
BALL BEARING - Call your local BRP dealership
293350039
Unavailable
52
Hex. Flange Screw M6 X 25
207662544
Unavailable
53
SPRING - Call your local BRP dealership
707000435
Unavailable
54
Lever Arm
707000783
Unavailable
55
Loctite 243, 10 ml
293800060
Unavailable
56
LEVER BUTTON - Call your local BRP dealership
705500022
Unavailable
57
RH Ball Joint
707001959
Unavailable
58
Washer
506151252
Unavailable
59
Hex. Elastic Stop Nut M8
232581414
Unavailable
60
Cover OPS
707000410
Unavailable
61
Hex. Flange Screw M6 X 12
210261250
Unavailable
62
Insulator Pad
710000073
Unavailable
63
Tie-rap Mount (square - self-adhsive)
293750040
Unavailable
64
Tie-Rap 180 mm
414115200
Unavailable
