- Outlander MAX 650EFI STD, XT & XT-P, 2012
09- Body And Accessories 1

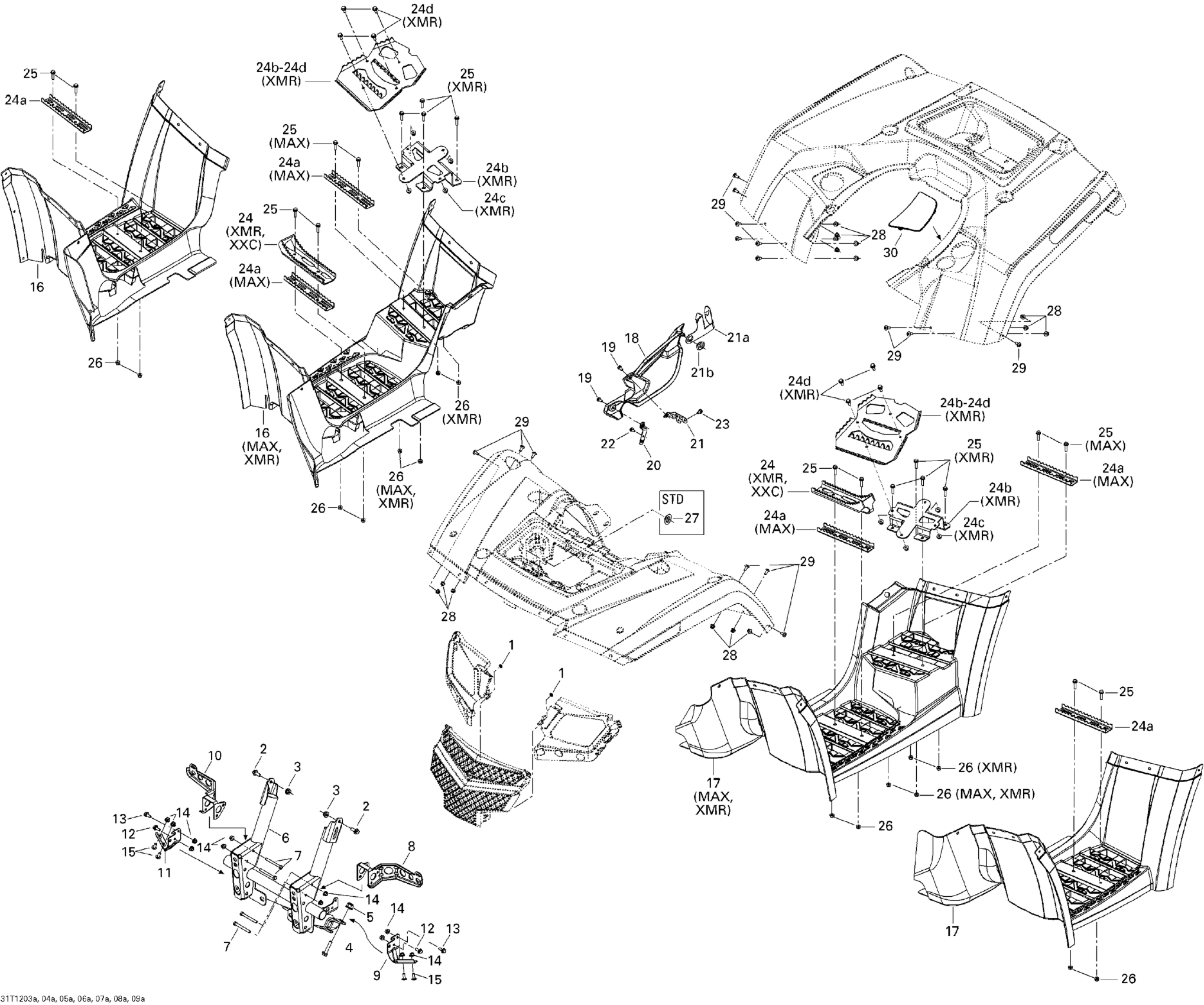

Can-Am Outlander MAX 650EFI STD, XT & XT-P, 2012 09- Body And Accessories 1 Diagram
#
1
Push Nut
732610072
Unavailable
2
Hex. Flange Screw M8 X 20
207682044
Unavailable
3
Hex. Flange Elastic Nut M8
233281414
Unavailable
4
Hex. Flange Screw M10 X 30
207603044
Unavailable
5
Hex. Flange Elastic Nut M10
233201414
Unavailable
6
FRONT BUMPER - Call your local BRP dealership
705003654
Unavailable
7
Hex. Screw M6 X 60
207066044
Unavailable
8
LH FACIA SUPPORT - Call your local BRP dealership
705002925
Unavailable
9
LH LOWER FACIA SUPPORT - Call your local BRP dealership
705003037
Unavailable
10
RH FACIA SUPPORT - Call your local BRP dealership
705002926
Unavailable
11
RH LOWER FACIA SUPPORT - Call your local BRP dealership
705003039
Unavailable
12
Hex. Flange Screw M6 X 16
207661644
Unavailable
13
Hex. Flange Screw M6 X 16
207661644
Unavailable
13
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
14
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
15
Torx Screw M6 X 16
250000755
Unavailable
16
RH Footboard
705002487
Unavailable
17
LH Footboard
705003633
Unavailable
18
ENGINE COVER - Call your local BRP dealership
705003839
Unavailable
19
Hex. Flange Screw M6 X 12
210261250
Unavailable
20
Engine Cover Support
705003646
Unavailable
21
Engine Cover Support
705011461
Unavailable
21a
ENGINE COVER SUPPORT - Call your local BRP dealership
705002121
Unavailable
21b
Oval Washer
705000321
Unavailable
22
Hex. Flange Screw M6 X 12
210261250
Unavailable
23
Hex. Flange Screw M6 X 12, Scotch Grip
207561244
Unavailable
24
Not Available As Spare Parts
XXX
Unavailable
24a
Footrest
705003648
Unavailable
24b
Not Available As Spare Parts
XXX
Unavailable
24c
Not Available As Spare Parts
XXX
Unavailable
24d
Not Available As Spare Parts
XXX
Unavailable
25
Hex. Flange Screw M6 X 25
250000787
Unavailable
26
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
27
PLASTIC CAP - Call your local BRP dealership | STD
293000103
Unavailable
28
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
29
Torx Screw M6 X 16
250000755
Unavailable
30
LH Rear Body Panel Cap
705017923
Unavailable
